TP-6805 8/15130 Section 7 Disassembly/Reassembly
14. Remove the alternator air inlet duct. See
Figure 7-8.
TP-6805
1. Alternator duct
1

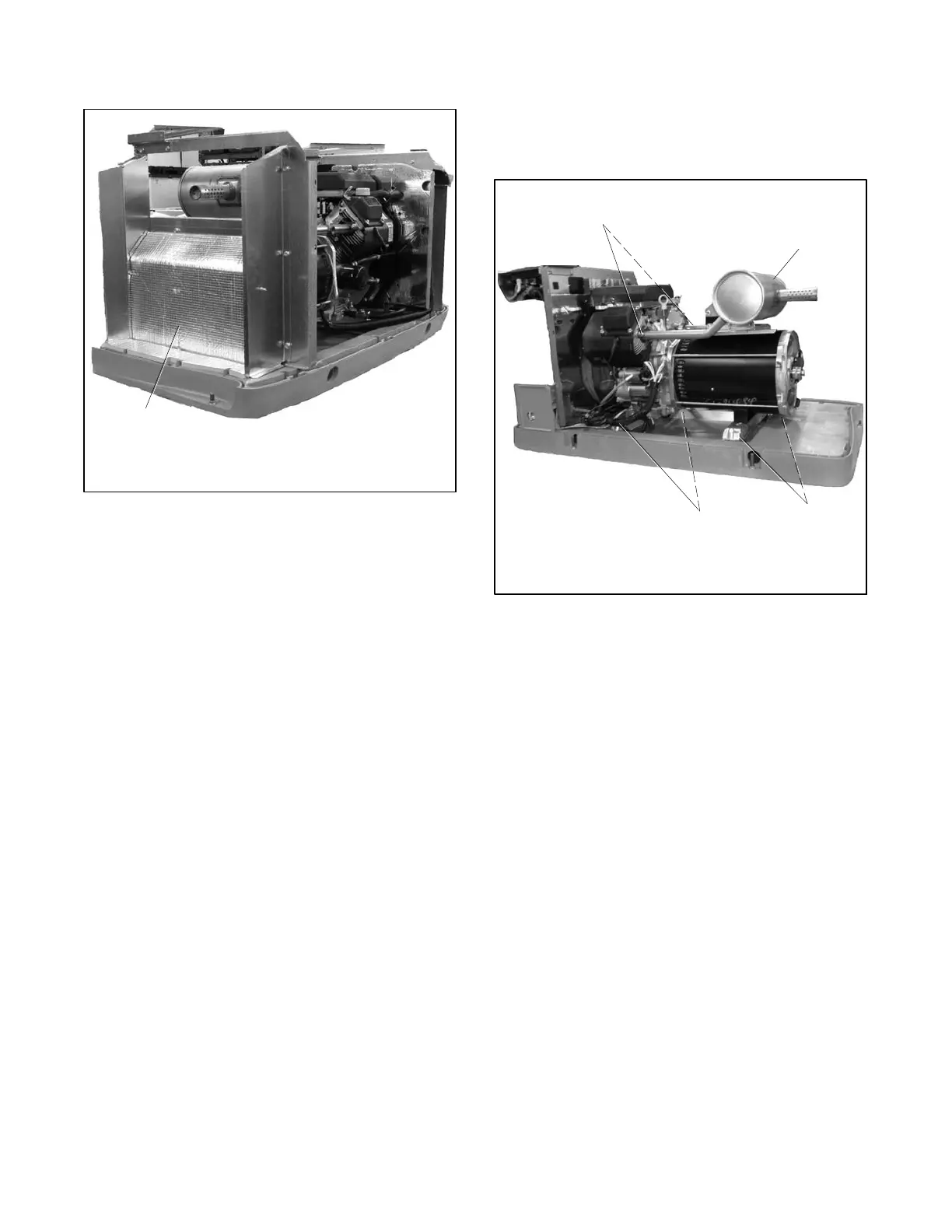

Figure 7-8 Alternator Duct
15. Disconnect the muffler from the engine at the two
flange connections and remove the muffler. See
Figure 7-9.
Note: Use new exhaust gaskets when re-installing
the muffler.
1. Exhaust flanges (qty. 2)
2. Muffler
3. Alternator vibromounts (qty. 2)
4. Engine vibromounts (qty. 2)
TP-6805
2
1
3
4
Figure 7-9 Muffler and Vibromounts
