TP-7045 3/18c 31Section 6 Electrical System
Note: Wire material. Use stranded copper for all
wiring. Use wire gauges and insulation,
conductor temperature ratings, sheath
stripping, conductor support and protection,
conductor terminals and splices, and
overcurrent protection (circuit breakers,
fuses) that conform to standards and codes.
Note: Follow USCG Regulations CFR33, Part 183
(Pleasurecraft) and CFR46 (Commercial
Craft) for marine applications.
Note: Wire protection. Use plastic bushings,
rubber grommets, and/or cable ties as
necessary to protect and secure wiring from
sharp objects, the exhaust system, and any
moving parts.
8. Attach the new panel to the junction box using the
original six screws.
9. Check that the generator set master is OFF.
Reconnect the generator set engine starting
battery, negative (--) lead last.
1. Circuit breaker mounting panel
2. Circuit breaker
3. Washers and screws
1
3
2
GM99099

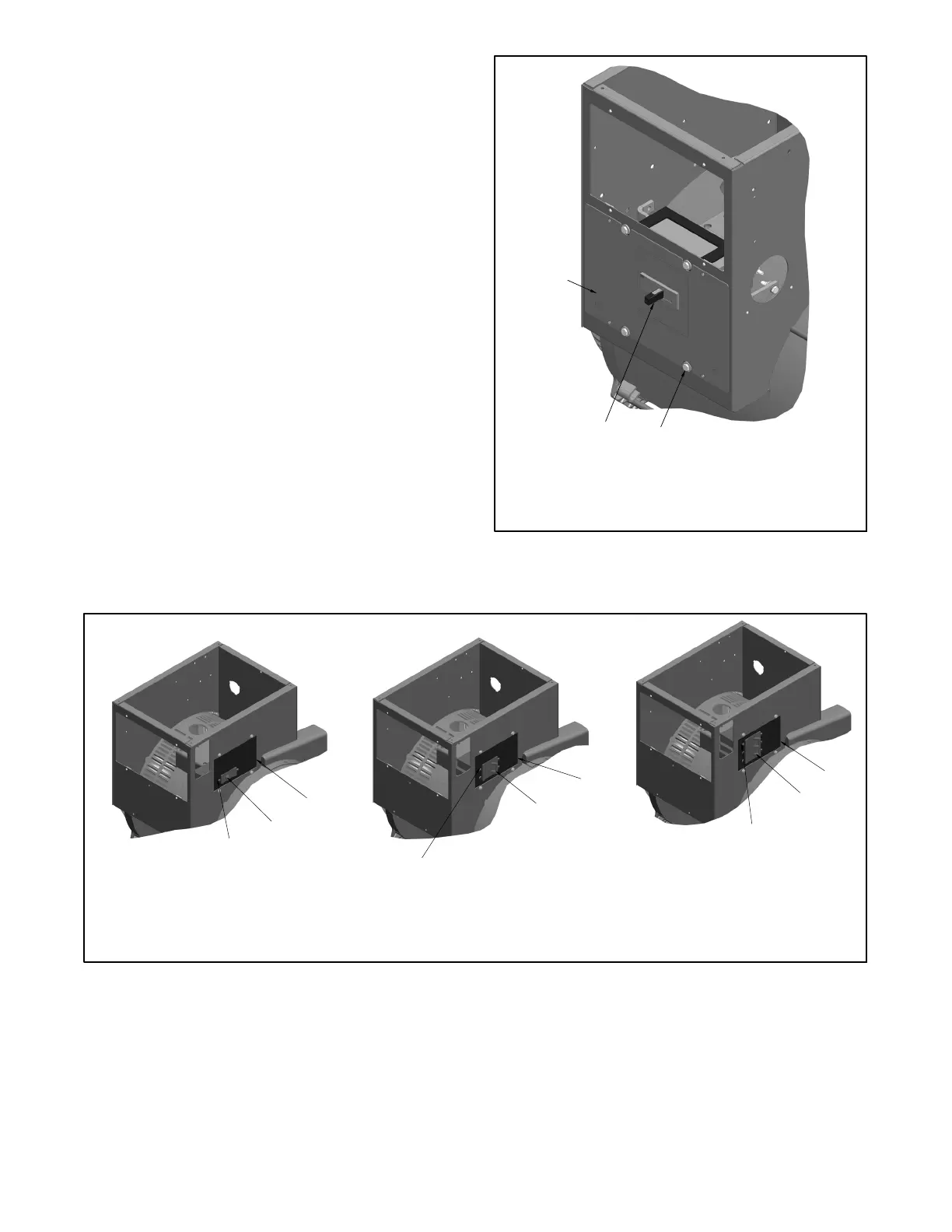

Figure 6-1 Circuit Breaker Mounting, Typical
(32--40EKOZD/28--35EFKOZD Models
shown)
GM91718-
1. Circuit breaker
2. Circuit breaker mounting panel
3. Lock washers and machine screws
1 Pole Breaker
2 Pole Breaker 3 Pole Breaker
1
1
1
2
2
2
3
3
3
Figure 6-2 Circuit Breaker Mounting, Typical (14--24EKOZD/12--20.5EFKOZD Models shown)
