TP-6953 7/19 275Section 15 Alternator Disassembly/Reassembly

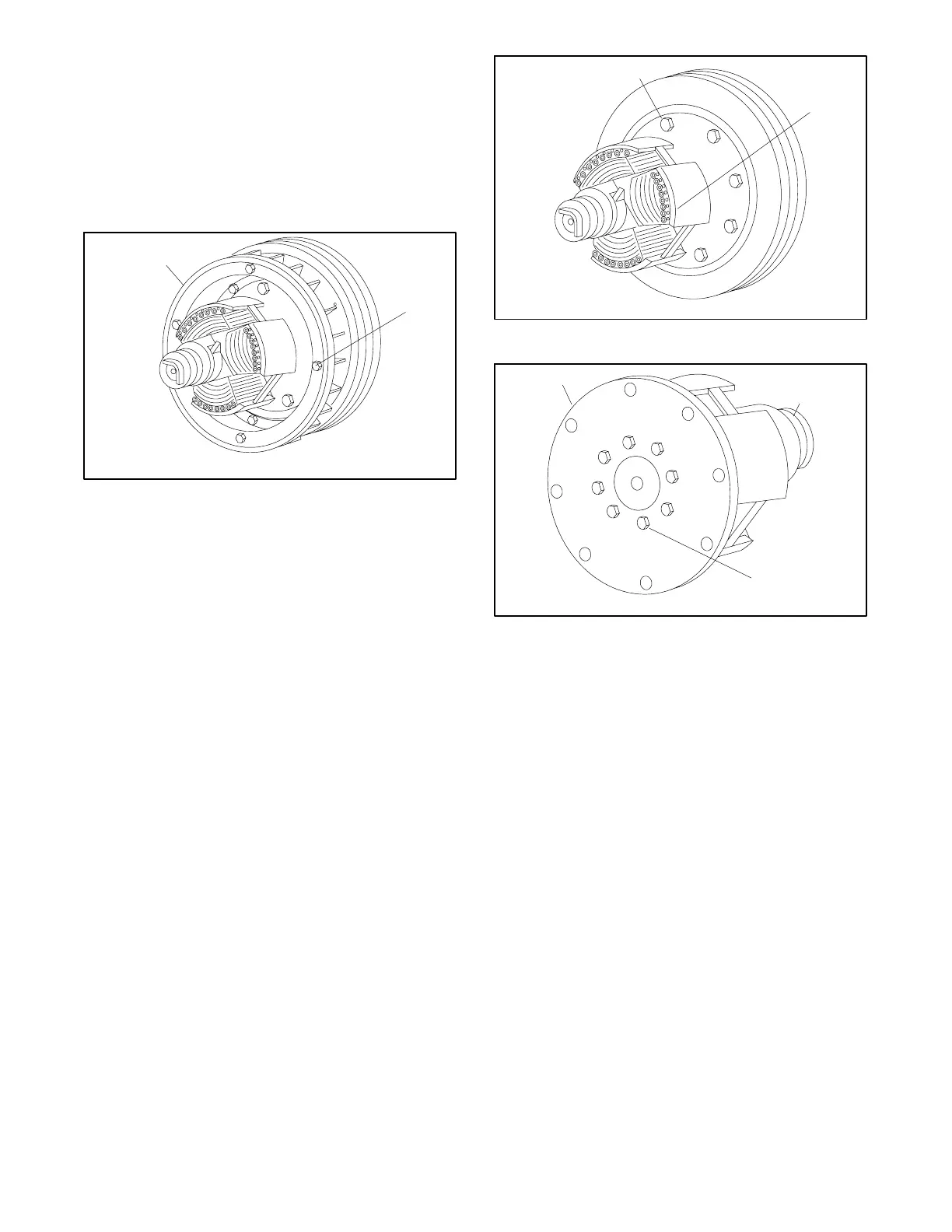

16. Remove the alternator fan. See Figure 15-8.
17. Remove the eight bolts and remove the drive
disc/rotor assembly from the engine flywheel. See
Figure 15-9.
18. Clamp the rotor in a soft-jaw vise. Remove the
eight bolts and remove the drive disc assembly
from the rotor. See Figure 15-10.
558868
1
2
1. Fan
2. Screws with washers (8)
Figure 15 -8 Fan Removal
558869
1. Bolts (8)
2. Rotor assembly
1
2
Figure 15-9 Disc/Rotor Assembly
5588610
1
2
3
1. Drive disc(s) 2. Rotor 3. Bolt
Figure 15 -10 Drive Disc(s)
