Kohler 20EORZ Service

TP-6073 4/0614 Section 1 Specifications
1 2 610
1617
13
8
14
26
18
25
2123
11
A-226966
ADV-6484
Inline Radiator
STOP/
START
1
10
0
TOTAL HOURS
0000
15 A.
INPUT
10 A.
BATT> CHG>
226981
PREHEAT
Controller
27
28
29
30
12
3 5
1. Controller
2. Air cleaner
3. Nameplate
4. Remote start connector
5. Lifting eye
6. Oil check
7. Exhaust outlet
8. Coolant overflow bottle
9. High water temperature safety shutdown switch
10. Oil fill
11. Pressure cap
12. Overflow tube
13. Fuel injection pump
14. Radiator
15. Coolant drain
16. Oil drain
17. Fuel pump
18. Oil filter
19. Fuel inlet connection
20. Fuel return connection
21. Fuel filter
22. Low oil pressure safety shutdown switch
23. Preheat relay
24. Cooling air inlet
25. Customer load access connector
26. Optional circuit breaker location
27. Input fuse
28. Battery charging fuse
29. Start/stop switch
30. Hourmeter
15
4 9
19202224
7
10

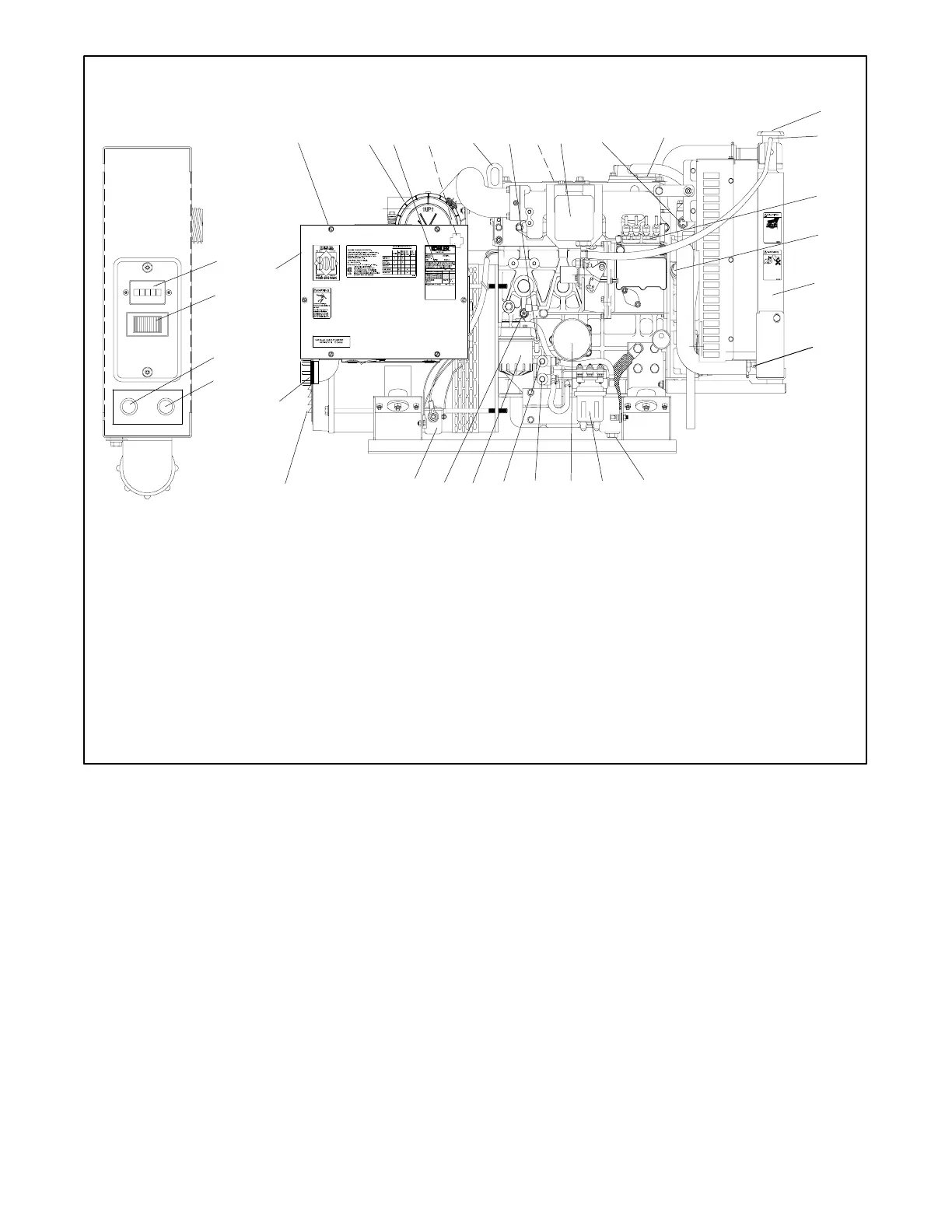

Figure 1-2 15--20 kW Service View (Inline Radiator Model Shown)

Kohler 20EORZ Specifications

General

Brand	Kohler
Model	20EORZ
Category	Portable Generator
Language	English
