Kohler 20EORZ Service

TP-6073 4/06 13Section 1 Specifications
Section 1 Specifications
1.1 Service Views
1 2 510
1920
14
8
16
21
24
25
13
ADV-6519
Inline Radiator
4 6
1. Controller
2. Nameplate
3. Remote start connector
4. Air cleaner
5. Oil check
6. Lifting eye
7. Exhaust outlet
8. Coolant overflow bottle
9. Fuel return connection
10. Oil fill
11. High water temperature safety shutdown switch
12. Overflow tube
13. Pressure cap
14. Fuel injection pump
15. Low oil pressure safety shutdown switch
16. Radiator
17. Coolant drain
18. Fuel filter
19. Oil drain
20. Fuel pump
21. Oil filter
22. Fuel inlet connection
23. Cooling air inlet
24. Customer load access connector
25. Optional circuit breaker location
26. Input fuse
27. Battery charging fuse
28. Start/stop switch
29. Hourmeter
STOP/
START
1
10
0
TOTAL HOURS
0000
15 A.
INPUT
10 A.
BATT> CHG>
226981
PREHEAT
26
27
28
29
Controller
17
3 7
11
15
182223
9
12

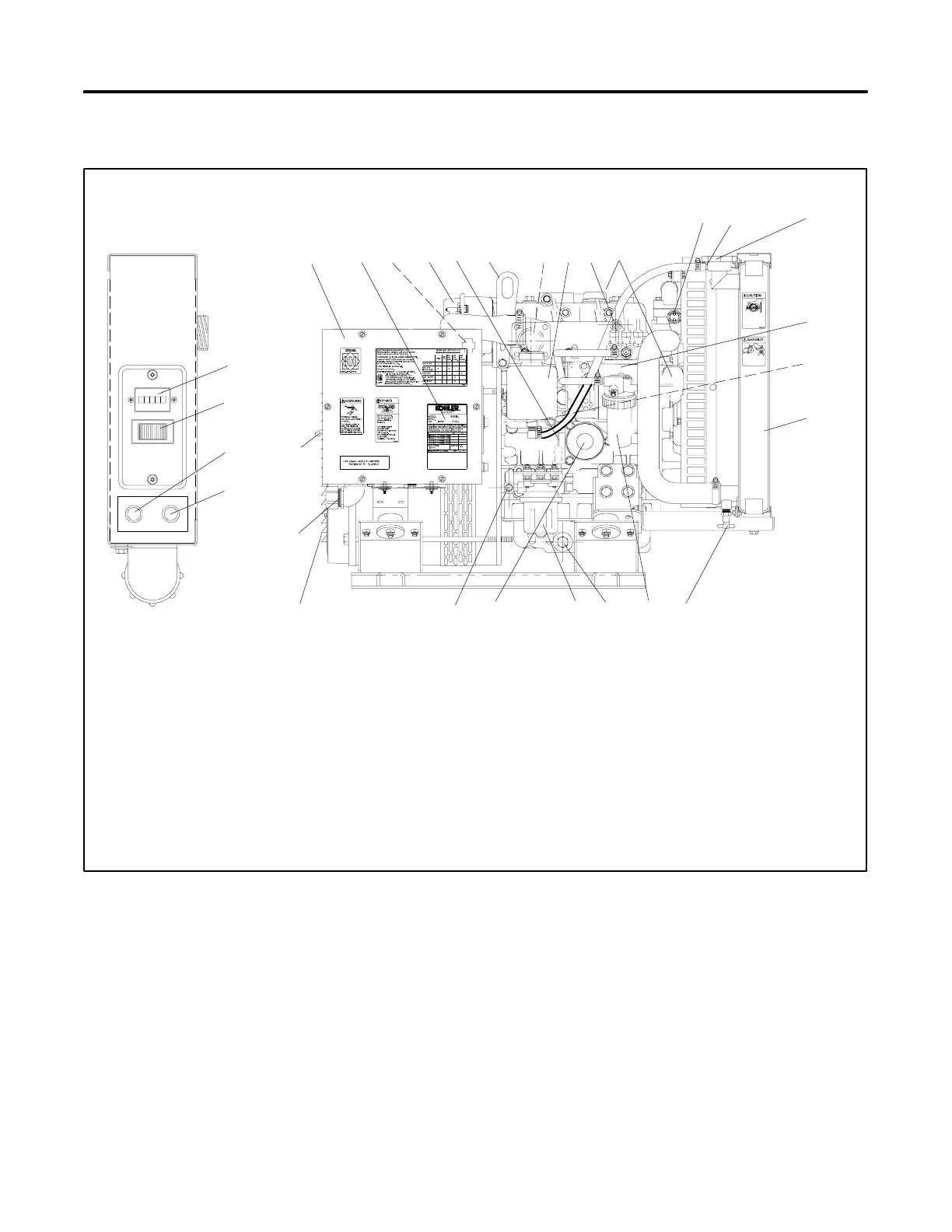

Figure 1-1 7.5--10 kW Service View (Inline Radiator Model Shown)
