TP-6880 10/14 17Section 1 Descriptions and Service Views
1.9 Service Views
7
8
11
19
2
9
6
ADV-8539
10
18
5
1. Hinged roof
2. Air cleaner
3. Nameplate location
4. Thermostat
5. Engine starting battery location (battery purchased separately)
6. Gas regulator assembly and fuel selector valve
7. Fuel solenoid valve
8. Fuel inlet
9. Field-connection terminal block and 20 amp resettable circuit
breaker (behind panel)
10. Line circuit breaker
11. 120 VAC receptacles for optional carburetor heater (not shown)
12. Lock
13. Locking tool, provided with generator set
14. USB port
15. RDC2 or DC2 controller
16. Oil check (dipstick) and oil fill
17. Oil drain valve
18. Oil filter
19. Muffler
15
17
14
3
16
1
12
13
4

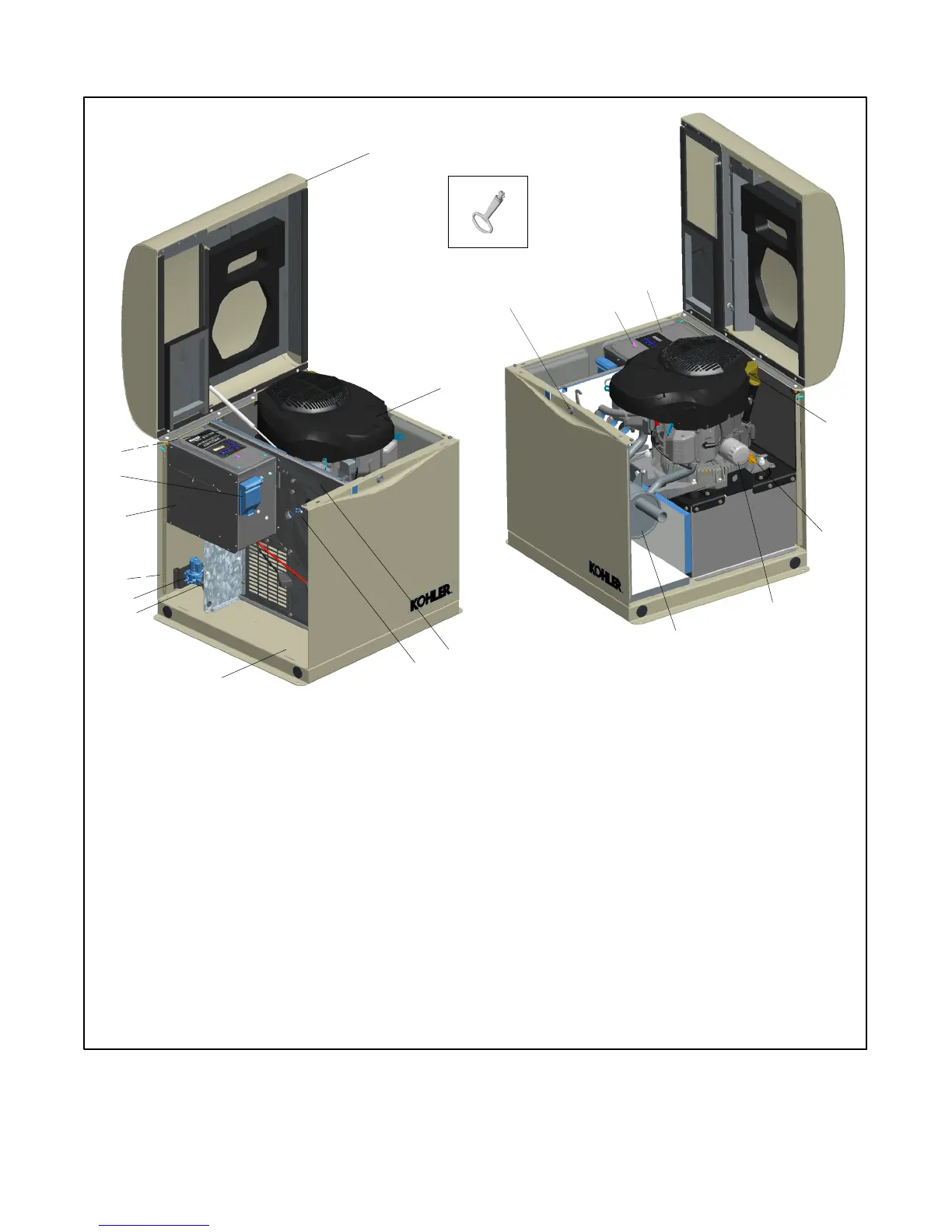

Figure 1-2 Service View
