TP-6862 6/14 31Section 6 Electrical System
9. Check that the generator set master switch is in the
OFF position. Reconnect the generator set engine
starting battery, negative (--) lead last.
JW250000
1. Circuit breaker
2. Circuit breaker mounting panel
3. Load lead access panel
4. Bus
5. Hardware
6. Bus line

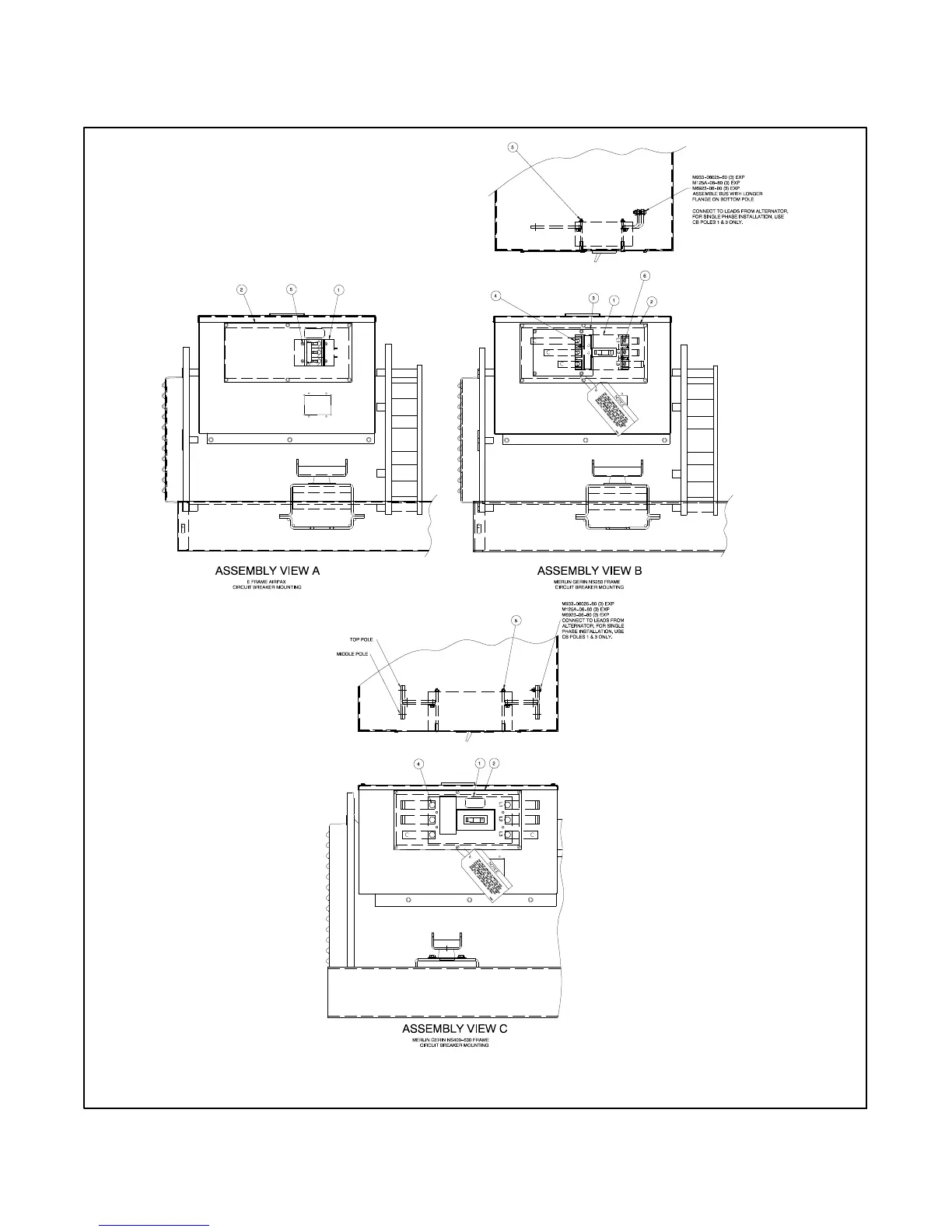

Figure 6-3 Circuit Breaker Mounting, Typical
