TP-6862 6/14 43Section 7 Installation Drawings
ADV-8506B-B
NOTE: Dimensions in [ ] are inch equivalents.

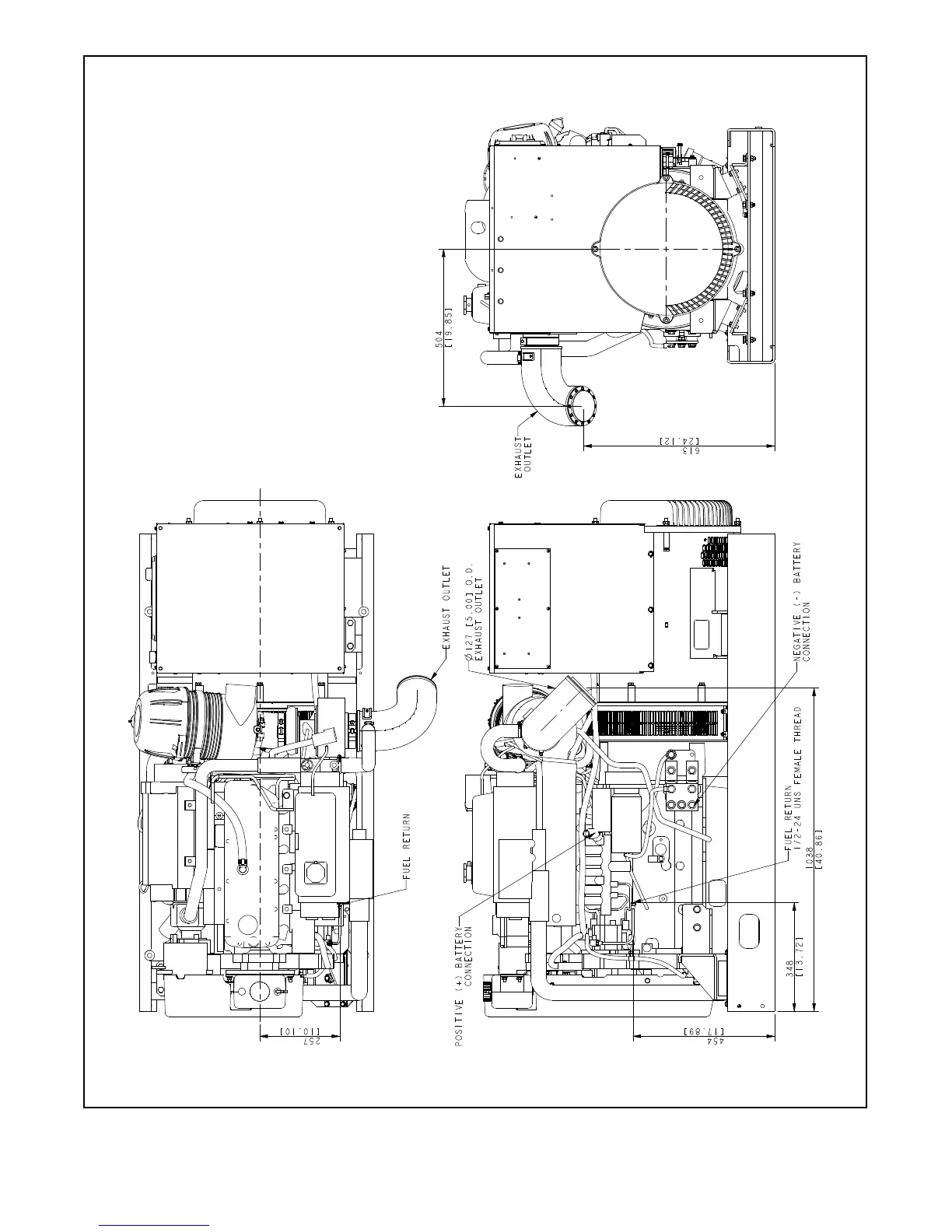

Figure 7-9 Dimension Drawing, 80/99EOZD(C)J & 70/80EFOZD(C)J (Open Unit Sheet 2 o f 2)
