TP-5393 9/93 Installation 6-13
Air Requirements
A fan on the rotor of the generator draws cooling air into
the compartment through the generator cooling slots
and expels it at the engine-generator adapter. The
engine of the generator set features an Air-Vact
reverse flow cooling system. Fins on the engine flywheel
pull cooling air past the fins of the cylinder heads and the
heated air is discharged downward and out of the
compartment through the discharge chute. See
Figure 6-15.
1-921

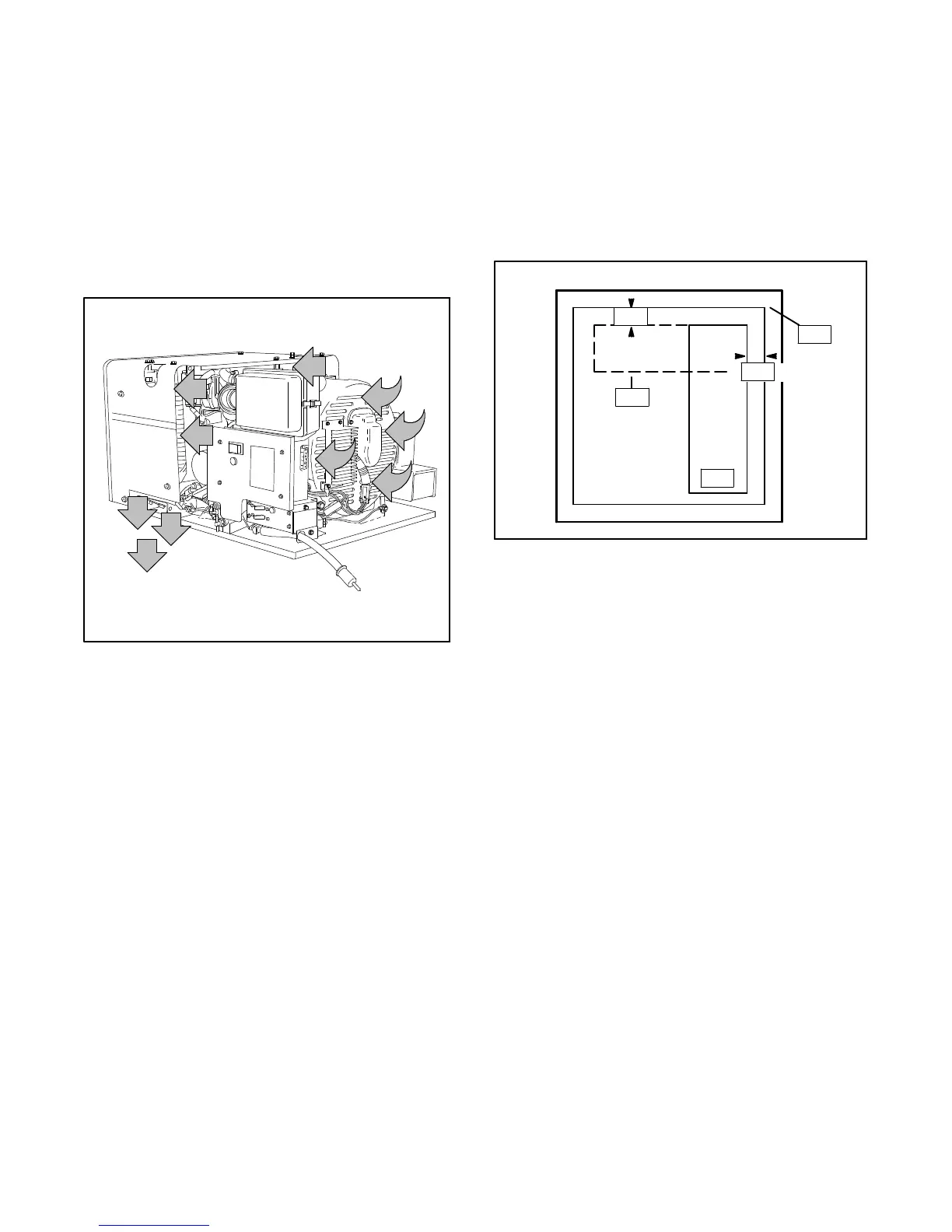

Figure 6-15. Cooling Air Circulation
To prevent damage to the generator set from
overheating, makesure thecompartment openings are
largeenoughtoallowadequatecircualtionorcoolingair.
Theminimumfree-airopeninginthecompartmentis85
sq. in. (548 sq. cm.). The free-air opening may be
located in thecompartment door, floor, or end wall. See
Figure 6-17 for position of the free-air opening in the
compartment floor or end wall. Position of the door
free-air opening is shown in Figure 6-16.
1
2
3
4
5
1. 3” minimum (76.2 mm)
2. 2” minimum (50.8 mm)
3. Generator end
4. Air in
5. (Optional)
Figure 6-16. Screen Position for Compartment
Door
