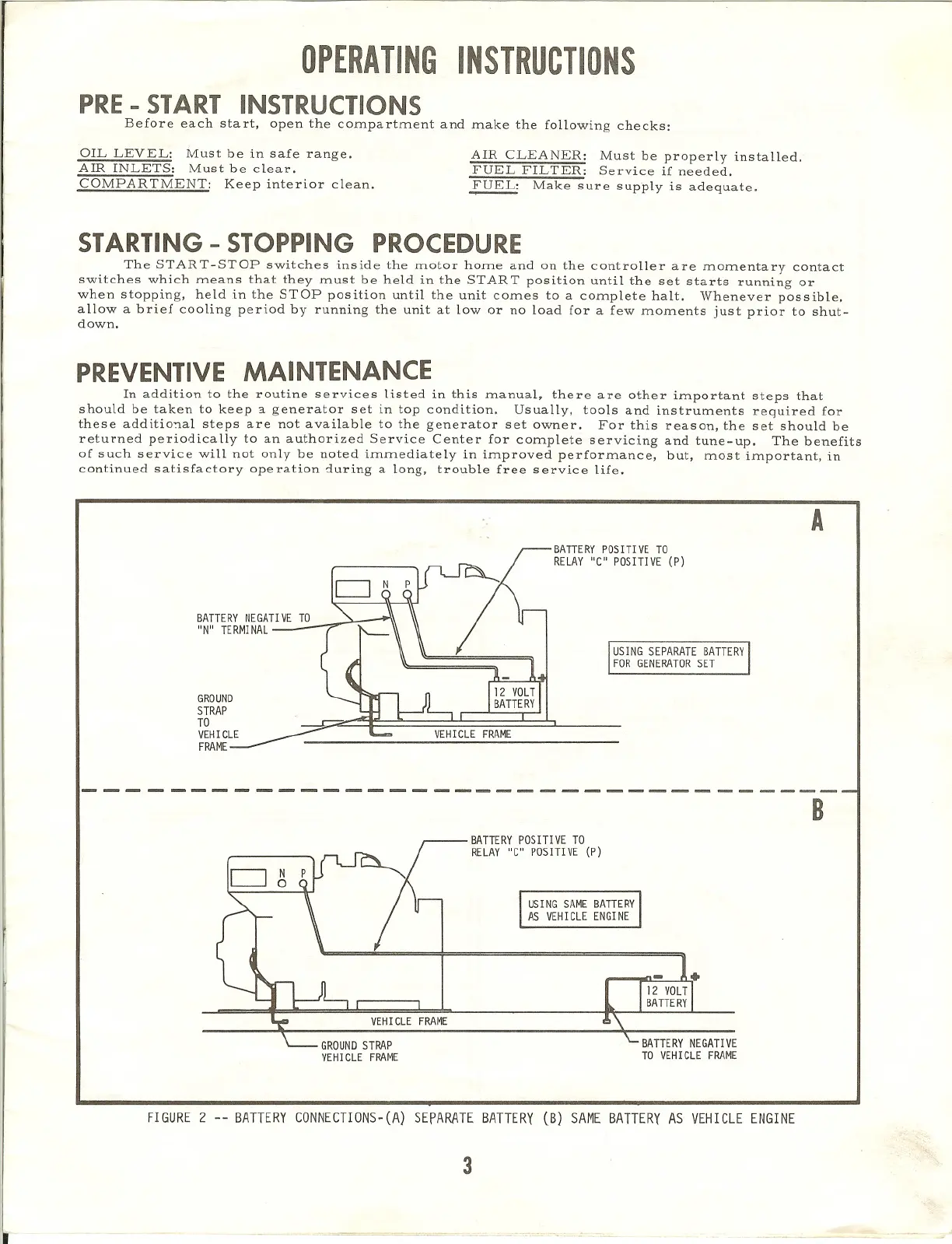

OPERATING INSTRUCTIONS
PRE - START INSTRUCTIONS
Before each start, open the compartment and make the following checks:
OIL LEVEL: Must be in safe range.
AIR INLETS: Must be clear.
COMPARTMENT: Keep interior clean.
AIR CLEANER: Must be properly installed.
FUEL FILTER: Service if needed.
~ Make sure supply is adequate.
STARTING - STOPPING
PROCEDURE
The START-STOP switches inside the motor home and on the controller are momentary contact
switches which means that they must be held in the STAR T position until the set starts running or
when stopping, held in the STOP position until the unit comes to a complete halt. Whenever possible,
allow a brief cooling period by running the unit at low or no load for a few moments just prior to shut-
down.
PREVENTIVE MAINTENANCE
In addition to the routine services listed in this manual, there are other important steps that
should be taken to keep
3. generator set in top condition. Usually, tools and instruments required for
these additioClal steps are not available to the generator set owner. For this reason, the set should be
returned periodically to an authorized Service Center for complete servicing and tune-up. The benefits
of such service will not only be noted immediately in improved performance, but, most important, in
continued satisfactory operation during a long, trouble free service life.
A
BATTERY NEGATIVE TO
"N" TERMINAL
GROUND
STRAP
TO
VEHICLE
FRAME
BATTERY POSITIVE TO
RELAY "C" POSITIVE
(p)
USING SEPARATE BATTERY
FOR GENERATOR SET
B
VEHI CLE FRAME
GROUND STRAP
VEHI CLE FRAME
BATTERY POSITIVE TO
RELAY "C" POSITI VE (p)
USING SAME BATTERY
AS VEHICLE ENGINE
BATTE RY NE GA TI VE
TO VEHI CLE FRAME
I
FIGURE 2 -- BATTERY CONNECTIONS-(A) SEPARATE BATTERY (B) SAME BATTERY AS VEHICLE ENGINE
3
