TP-6390 1/06 21Section 2 Operation
Fault
Code
Displayed
Description
No Faults (Fault Code 0)
EC9 Throttle Position Sensor Input High
EC10 Throttle Position Sensor Range High
EC11 Throttle Position Sensor Range Low
EC12 Throttle Position Sensor Input Low
EC17 Speed Bias Pot Input High
EC18 Speed Bias Pot Input Low
EC39 Electronic Throttle Control Sticking
EC40 EST 1 Low
EC41 EST 1 High
EC42 EST 2 Low
EC43 EST 2 High
EC44 EST 3 Low
EC45 EST 3 High
EC46 Injector Fault
LOP Low Oil Pressure
EC48 Electronic Throttle Control Spring Test Failed
EC49 Map Sensor Input High
EC50 Map Sensor Input Low
EC51 Electronic Throttle Control Driver Fault
HB Battery Sensor Input High
LB Battery Sensor Input Low
EC54 XDRP Sensor Input High
EC55 XDRP Sensor Input Low
EC56 Intake Air Temp. Input Sensor High
EC57 Intake Air Temp. Input Sensor Low
EC58 Coolant Sensor Input High
EC59 Coolant Sensor Input Low
EC60 Oxygen Sensor Input High
EC61 Oxygen Sensor Input Low
LOC Seawater Pump Pressure
OS Engine Overspeed Fault
HE Coolant Sensor Range High
EC66 Trim Valve Output Fault
EC67 Trim Valve Lower DC Fault
EC68 Trim Valve Upper DC Fault
EC69 O
2
Switching Fault
EC70 Gaseous O
2
Adapt Limit Fault
EC72 CAN Receive Message Fault
EC73 Fuel Pump Fault
EC74 Starter Fault

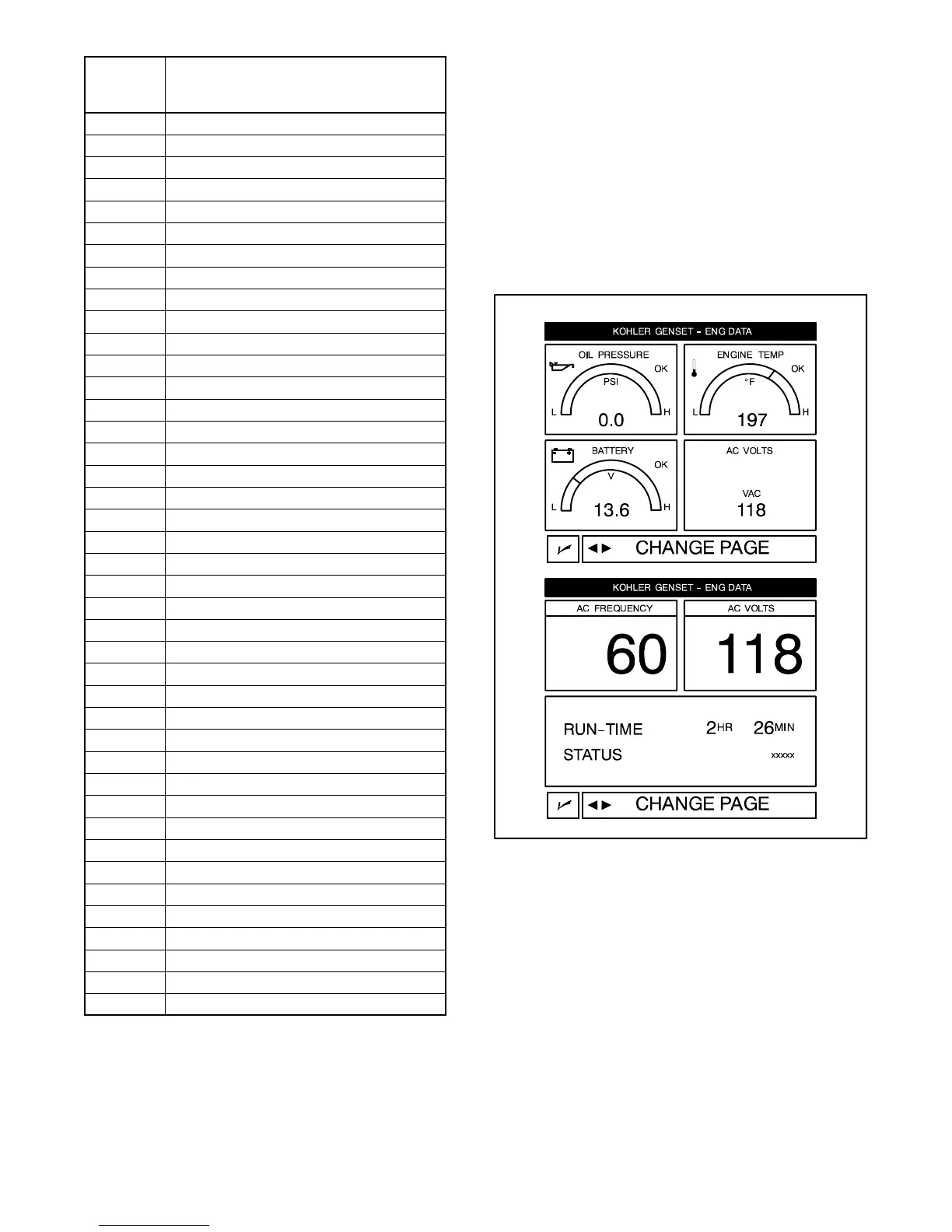

Figure 2-7 SECM Fault Codes (Appears on the
ADC 2100 Display and Remote Digital
Gauge)
2.6.5 SmartCraftt System View
(SC5000) Display, If Equipped
The 5/7.3ECD and 4/6EFCD model generator sets can
connect to SmartCraft’s SC5000 (if equipped) via the
generator set’s P19 connector. See the wiring diagrams
in Section 5 for the P19 location. The SC5000 displays
important generator set information as shown in
Figure 2-8.
Consult the SmartCraftt SC5000 literature provided
with your vessel for display operation.
Figure 2-8 5/7.3ECD and 4/6EFCD Generator
Display Screens on SC5000, Typical
SmartCraftt is a trademark of Mercury Marine, a division of
Brunswick Corporation.
