TP-6137 5/0380 Section 10 Generator and Engine Disassembly/Reassembly
6. Guide the eccentric shaft through the bushing
housing until it meets the inner control lever. See
Figure 10-75.

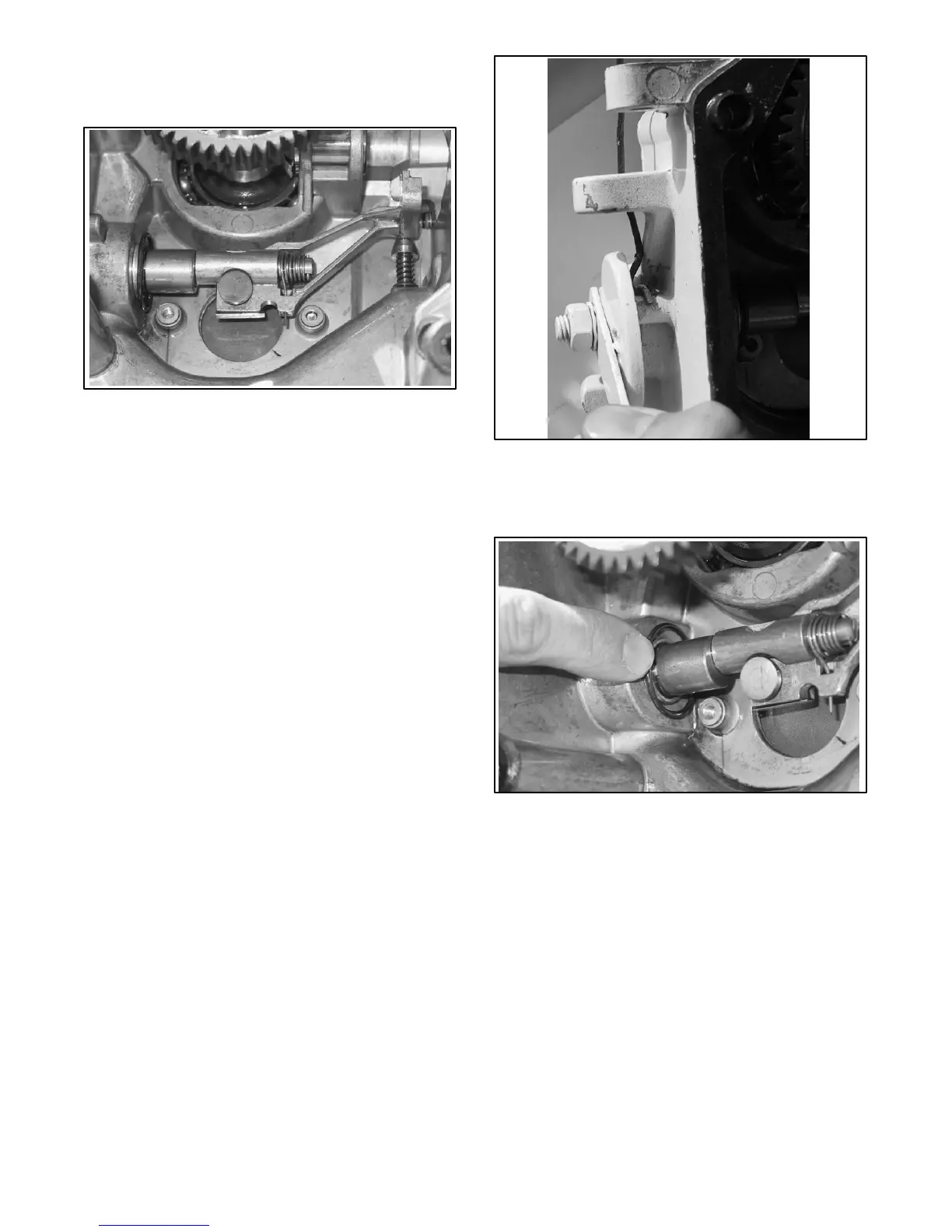

Figure 10-75 Eccentric Shaft
7. Turn the ratchet plate towards the lower position
until the inner spring can be hooked with the other
end leg at the groove of the eccentric shaft.
8. Move the ratchet plate between its two stop
notches on the gear housing.
9. Use a looping wire to move and to hook the other
end leg of the outer spring at the gear housing
boss. See Figure 10-76.
Figure 10-76 Gear Housing Boss
10. Push the eccentric speed shaft further until it locks
with the inner retainer ring. See Figure 10-77.
Figure 10-77 Inner Retainer Ring
