TP-6773 5/12a 39Section 7 Installation Drawings
ADV-7941B-A
NOTE: Dimensions are shown in mm [in.].

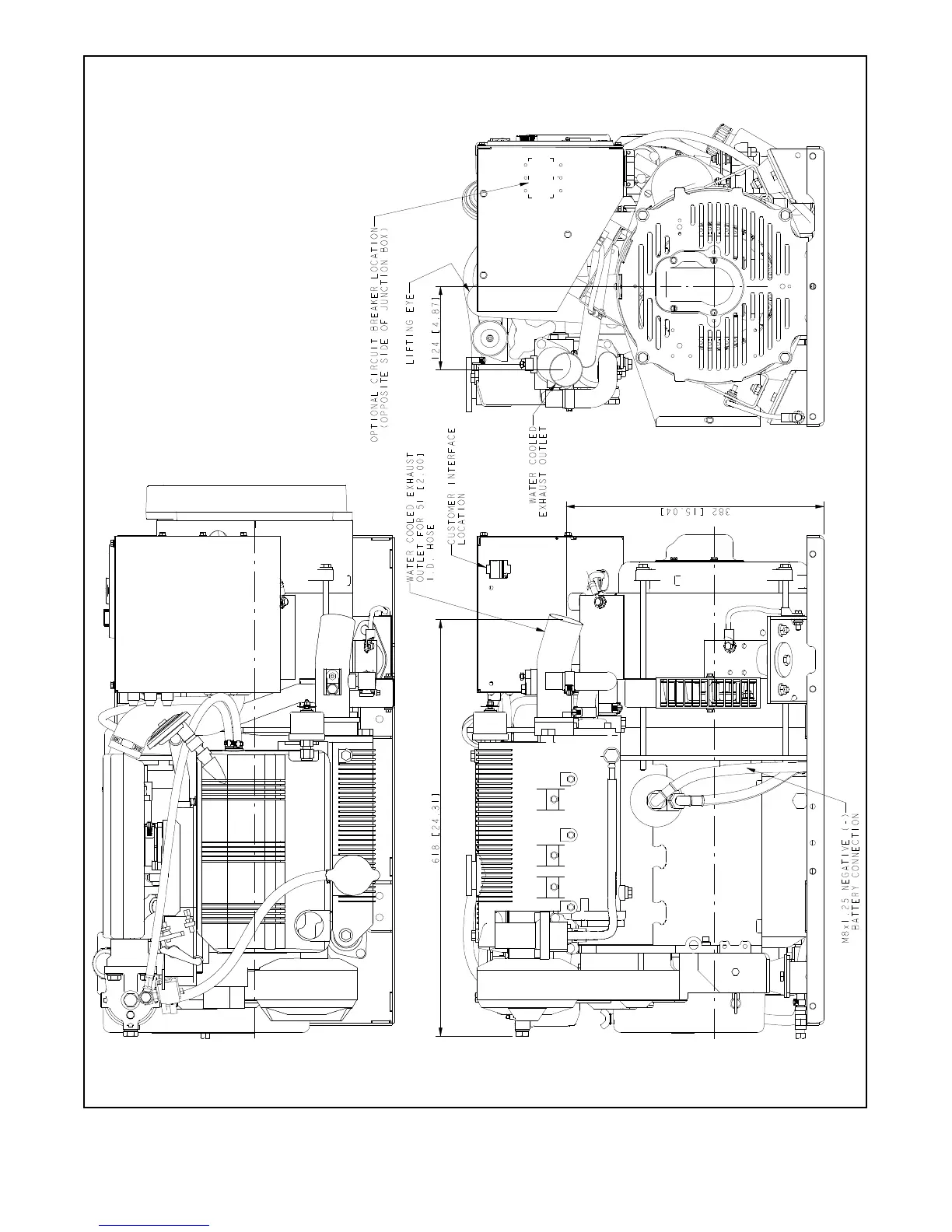

Figure 7-3 Dimension Drawing, 6EKOD and 5EFKOD (Sheet 2 of 2)
