TP-6773 5/12a42 Section 7 Installation Drawings
ADV-7943-A
NOTE: Dimensions are shown in mm [in.].

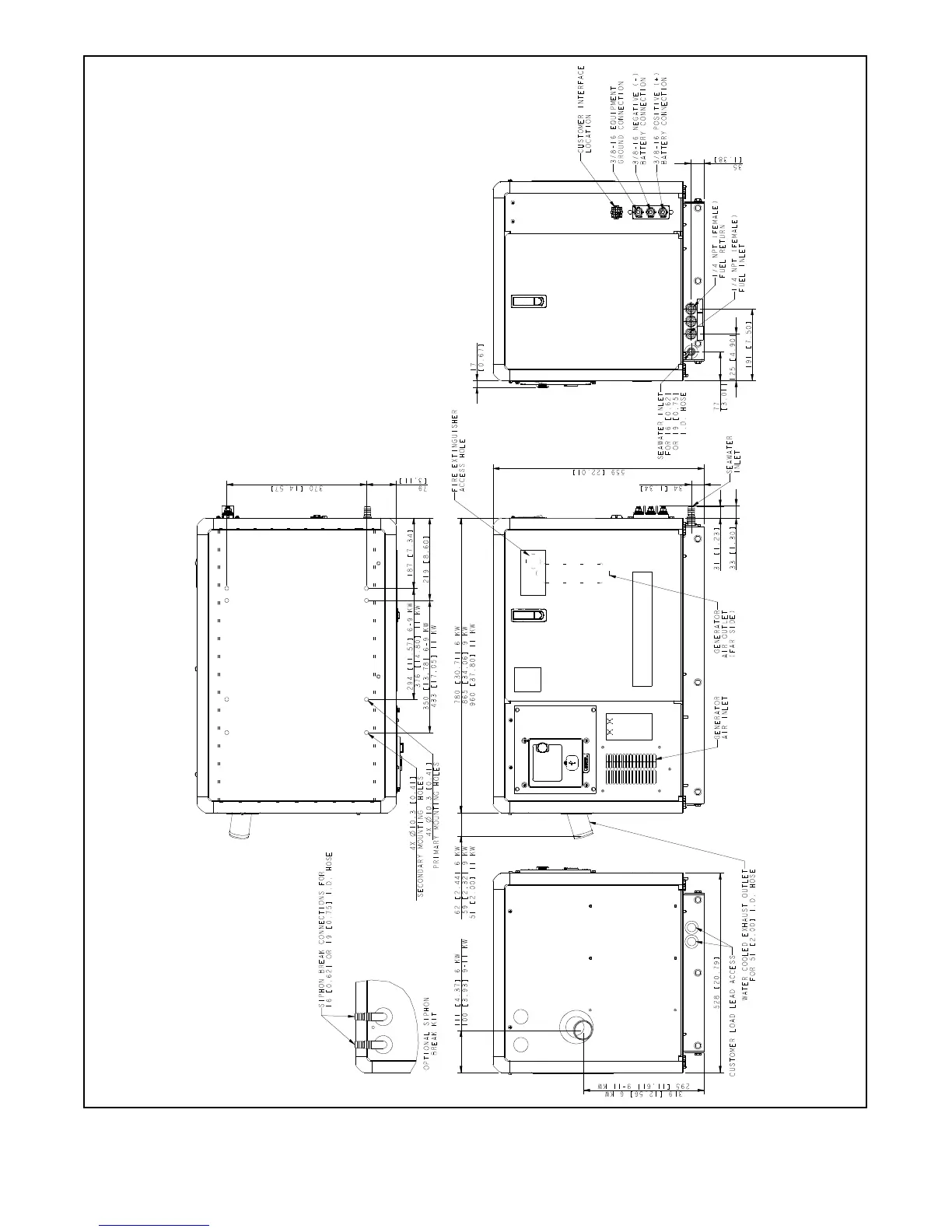

Figure 7-6 Dimension Drawing, 6EKOD/5EFKOD, 9--11EKOZD, and 7--9EFKOZD with Sound Shield
