4 TT-1715 2/17
GM33846-E
GM47635-E
For Units with an ADC II Controller
For Units with an ADC IId Controller

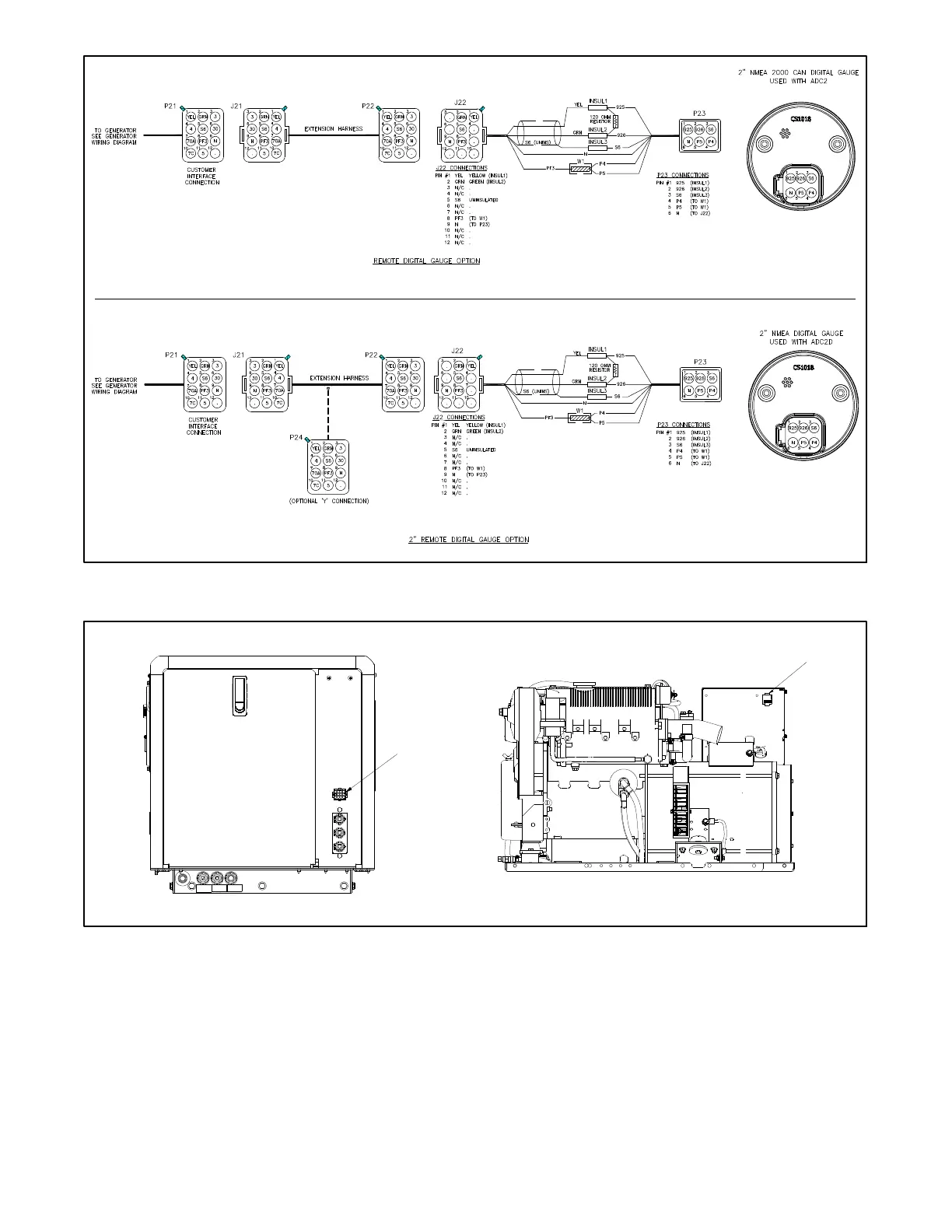

Figure 6 Remote Two-Inch Digital Gauge Diagram
Shown on N on Sound Shielded Unit
1. Remote interface connector
1
1
Shown on Sound Shielded Unit
Figure 7 Remote Customer Interface Connector, Typical
To Next Page
