TP-5982 4/06 41Section 7 Installation Drawings

ADV-6395B-L

Note: Dimensions in [ ] are inch equivalents.

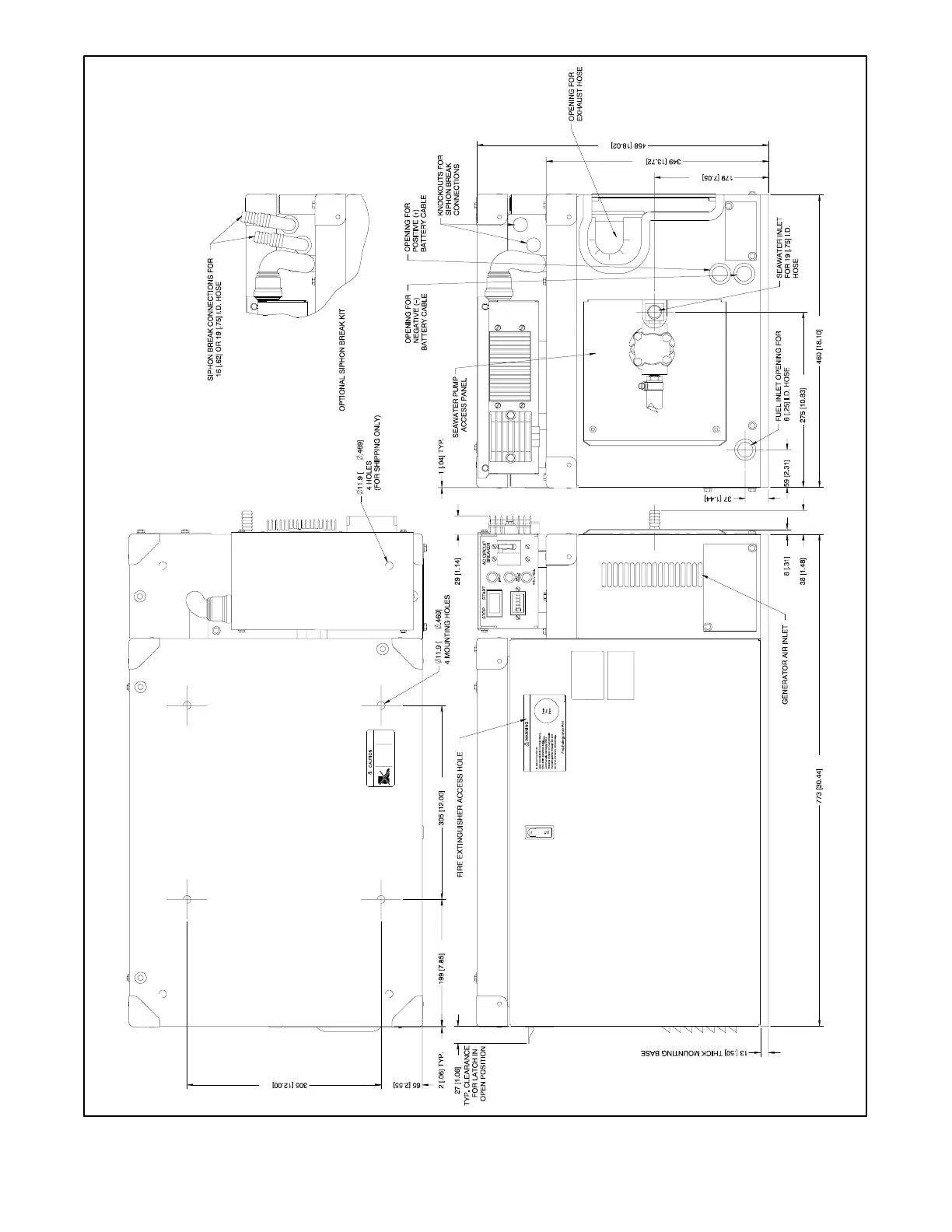

Figure 7-5 Dimension Drawing—Sound Shield 5/7.3E and 4/6EF
