TP-6773 5/12a 43Section 7 Installation Drawings
ADV-7944-A
NOTE: Dimensions are shown in mm [in.].

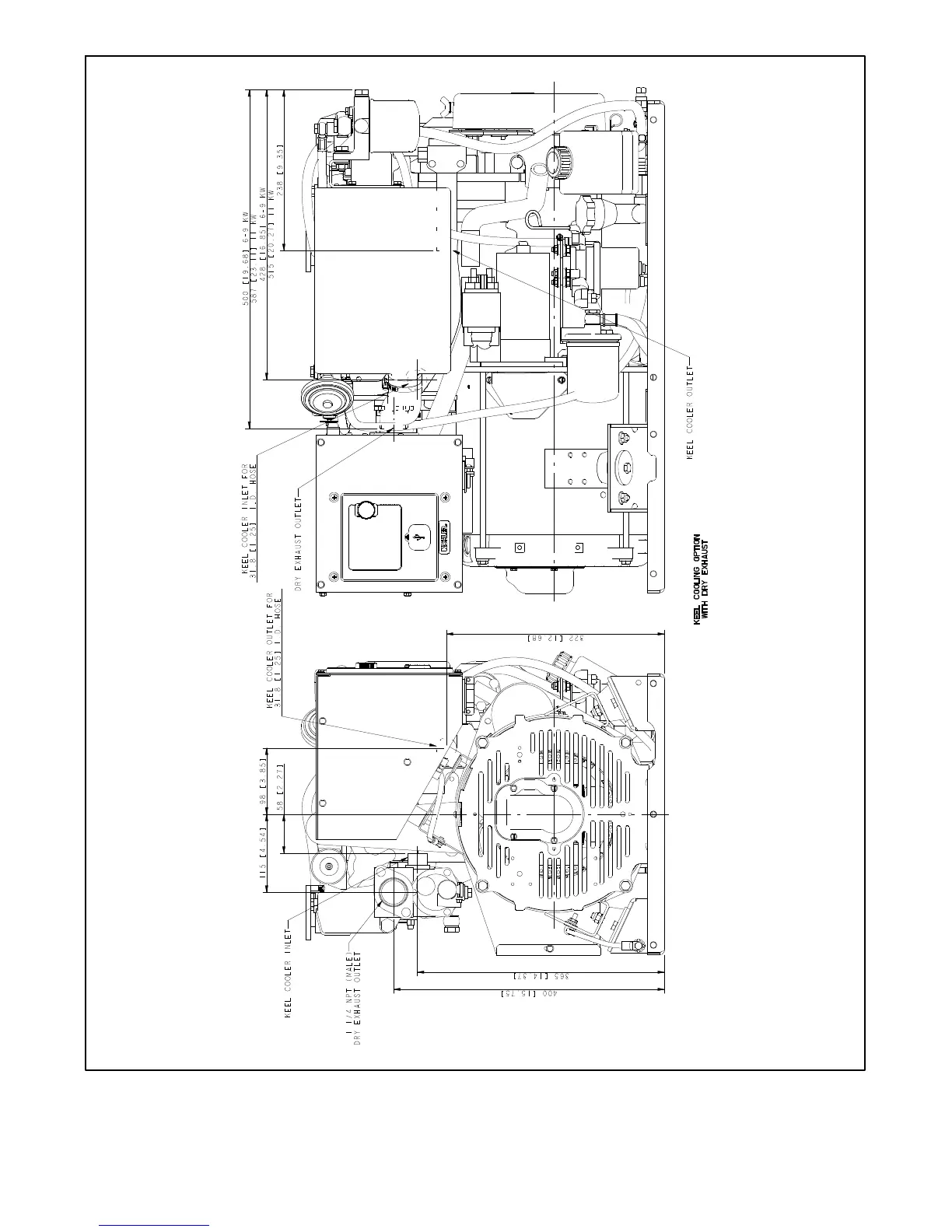

Figure 7-7 Dimension Drawing, 6EKOD/5EFKOD, 9--11EKOZD, and 7--9EFKOZD with Keel Cooling Option with
Dry Exhaust
