The safe and successful operation of a marine power
system depends primarily on the installation. See
Figure 1-1. Use this manual as a guide to install the
marine generator set. For operating instructions, refer
to the operation manual.
Marine generator set installations must comply with all
applicable regulations and standards.
Use the specification sheets as a guide in planning your
installation. Use current dimension drawings and wiring
diagrams.
12
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
585711
1. Exhaust mixer elbow/exhaust wat er outlet (non-service side)
2. Heat exchanger (non-service side)
3. Fuel filter
4. Seawater pump (seawater inlet)
5. Seawater strainer *
6. Coolant recovery tank
7. Seawater line *
8. Seacock *
9. Craft stringers
10. Fuel feed pump (fuel inlet) *
11. Fuel return line *
12. Hose clamps
13. Fuel supply line *
14. Fuel/water separator (see Section 5 for more information)
15. Mounting tray
16. Battery/battery storage box
17. Battery cables
18. Exhaust hose or exhaust line *
19. Electrical leads (AC output leads/remote start panel leads)
* Indicated components must conform to USCG regulations.
14
3

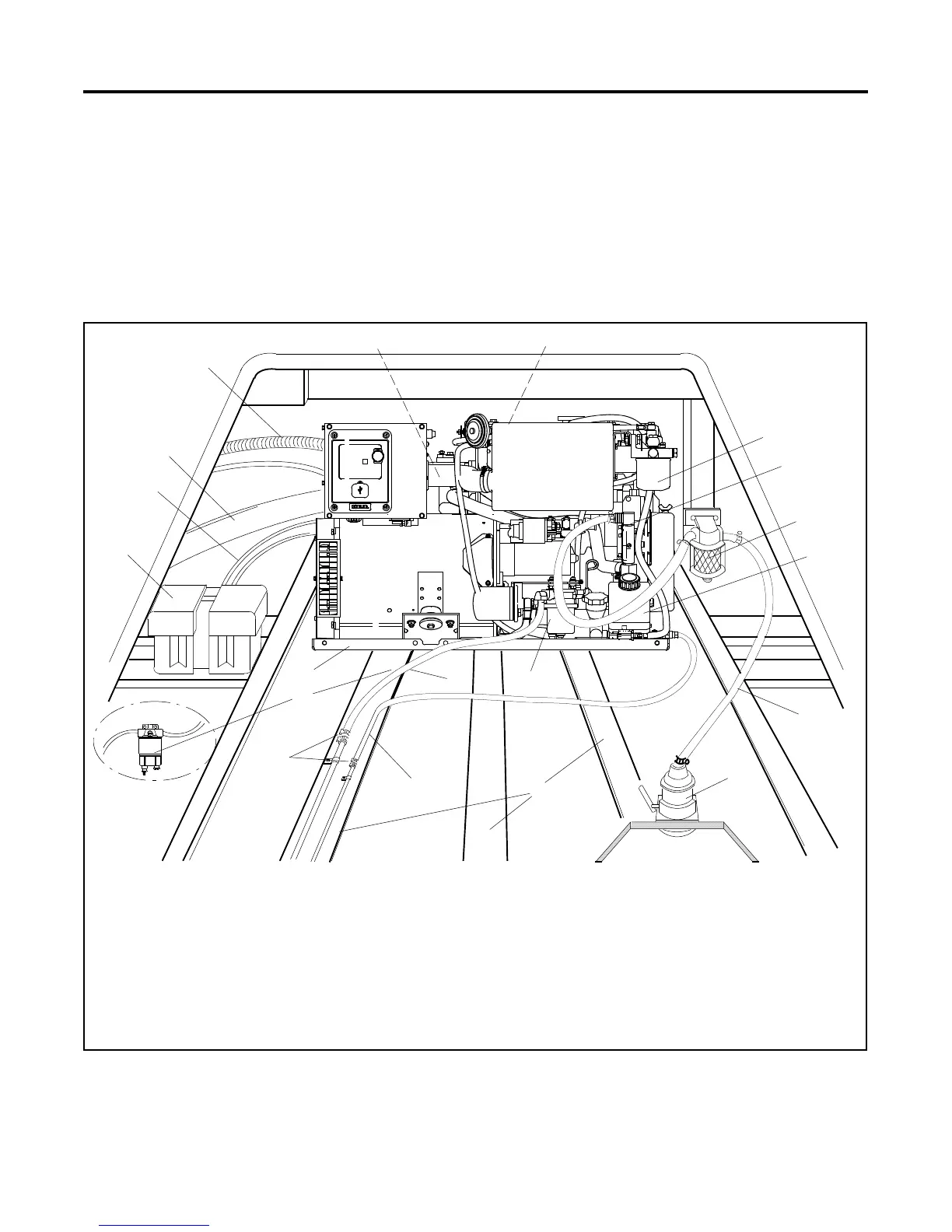

Figure 1-1 Typical Generator Set Location and Mounting (Without Sound Shield)
Note: See text for complete explanation of installation
requirements.
Note: Use two hose clamps on each end of all flexible
exhaust hose connections.
