TP-6772 2/14b 25Section 2 Operation
2.6.7 Communication Port
The main logic circuit board contains a standard type B
USB communication port for PC connections and a USB
host connector for a mass-storage device connection.
See Figure 2-6 and Figure 2-7. See Section 2.10.12 for
USB flowchart information. Refer to the List of Related
Materials in the Introduction for corresponding SiteTecht
software and/or communication installation information.
Note: Before inserting a mass-storage device (USB
host connector), power off and then power on the
controller.
See Figure 2-5 for tested/approved manufacturer’s
USB flash drive types that work with the ADC IId
controller.
CustomUSB
(Kohler Power Systems
Part Number KW-A202)
2-GB “spin” full size
Imation 4-GB full size
Lexar 4-GB full size
PNY 4-GB full size and micro
Verbatim 4-GB full size and micro

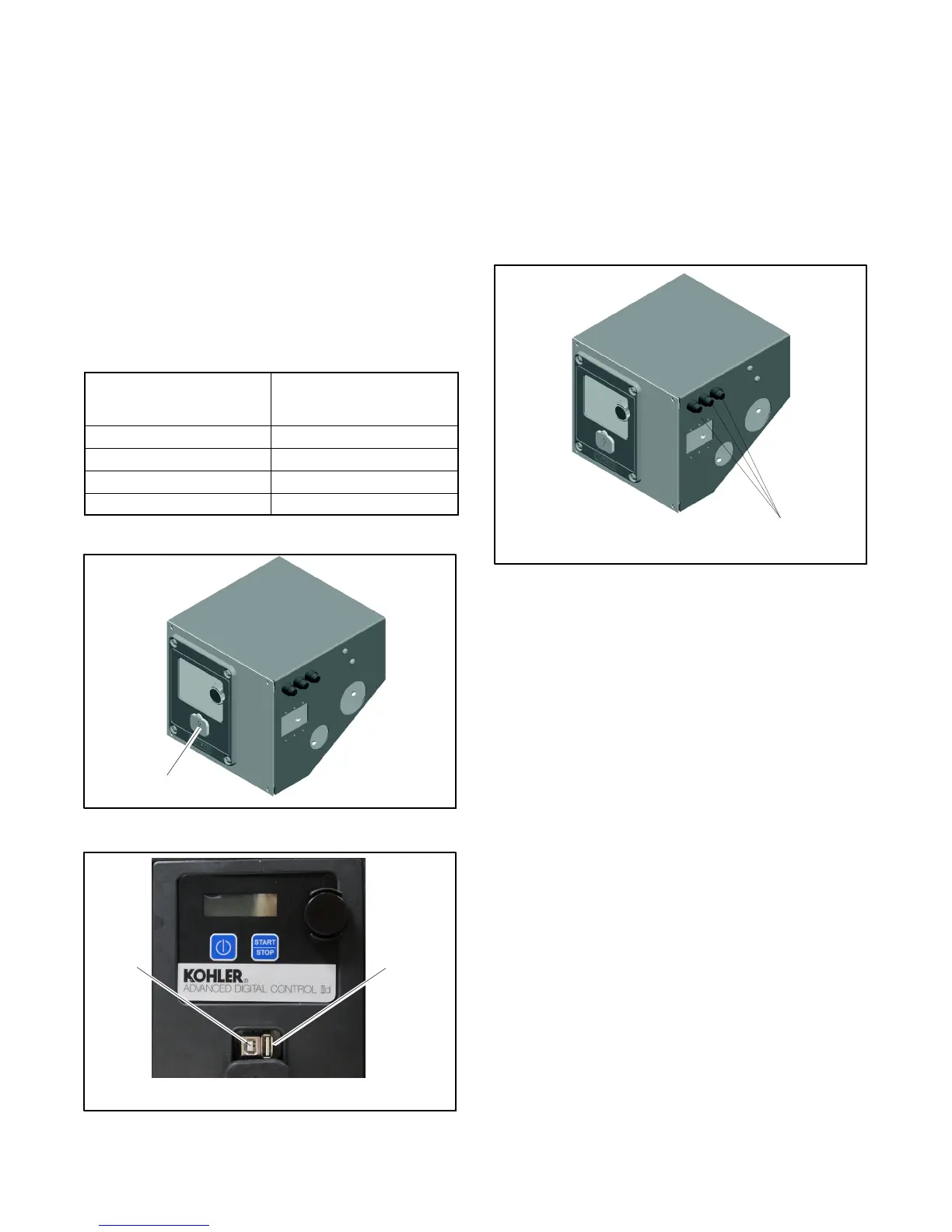

Figure 2-5 USB Types Tested/Approved for ADC IId
1. USB port cover
1
Figure 2-6 Communication Port
1 2
1. USB device connector (connects to SiteTech)
2. USB host connector (connects to mass-storage device)
Figure 2-7 ADC IId USB Identification
2.6.8 Fuses
Fuses are located on the side of the junction box. See
Figure 2-8.
D 10 -Amp (F1) fuse protects the auxiliary winding.
D 20 -Amp (F2) fuse protects the controller circuits, fuel
pump, and fuel shutoff solenoid.
D 5-Amp (F3) fuse protects the customer connections.
1. Fuses (qty. 3)
1
Figure 2-8 Fuses on the Side of the Junction Box
2.7 Controller Logic Specifications
Refer to Figure 2-9 for inhibit and time delays on fault
shutdowns. Refer to Figure 2-10 for inhibit and time
delays on warnings.
Inhibit Time Delay. The inhibit time delay is the time
period following crank disconnect during which the
generator set stabilizes and the controller does not
detect a fault or status event. The inhibit time delay is
not adjustable.
Time Delay (Shutdown or Warning). The time delay
follows the inhibit time delay. The time delay is the time
period between when the controller first detects a fault or
status event and the controller warning or shutdown
lamp illuminates. The time delay is not adjustable.
2.7.1 Fault Shutdown and Warning
Specifications
The following list contains fault shutdown and warning
specifications with time delays.
To Next Page
