TP-5594 5/956-8 Installation
Generator Free-Air Opening:
140 sq. in. (903 sq. cm)
Radiator Free-Air Opening:
7 kW—307 sq. in. (1981 sq. cm)
10 kW—307 sq. in. (1981 sq. cm)
Seal End Bracket to
Compartment Wall or Duct
Seal Radiator
to Compartment
Wall
7 kW: 16.62 in. (422 mm)
10 kW: 16.62 in. (422 mm)
18.45 in.
(469 mm)
Generator
End
Bottom Discharge in. (mm)
Inlet Outlet
7 kW:
Length 16.62 (422) 18.83 (478)
Width 5.95 (151) 8.88 (225)
10 kW:
Length 16.62 (422) 22 (559)
Width 6.15 (156) 8.88 (225)
Radiator
End

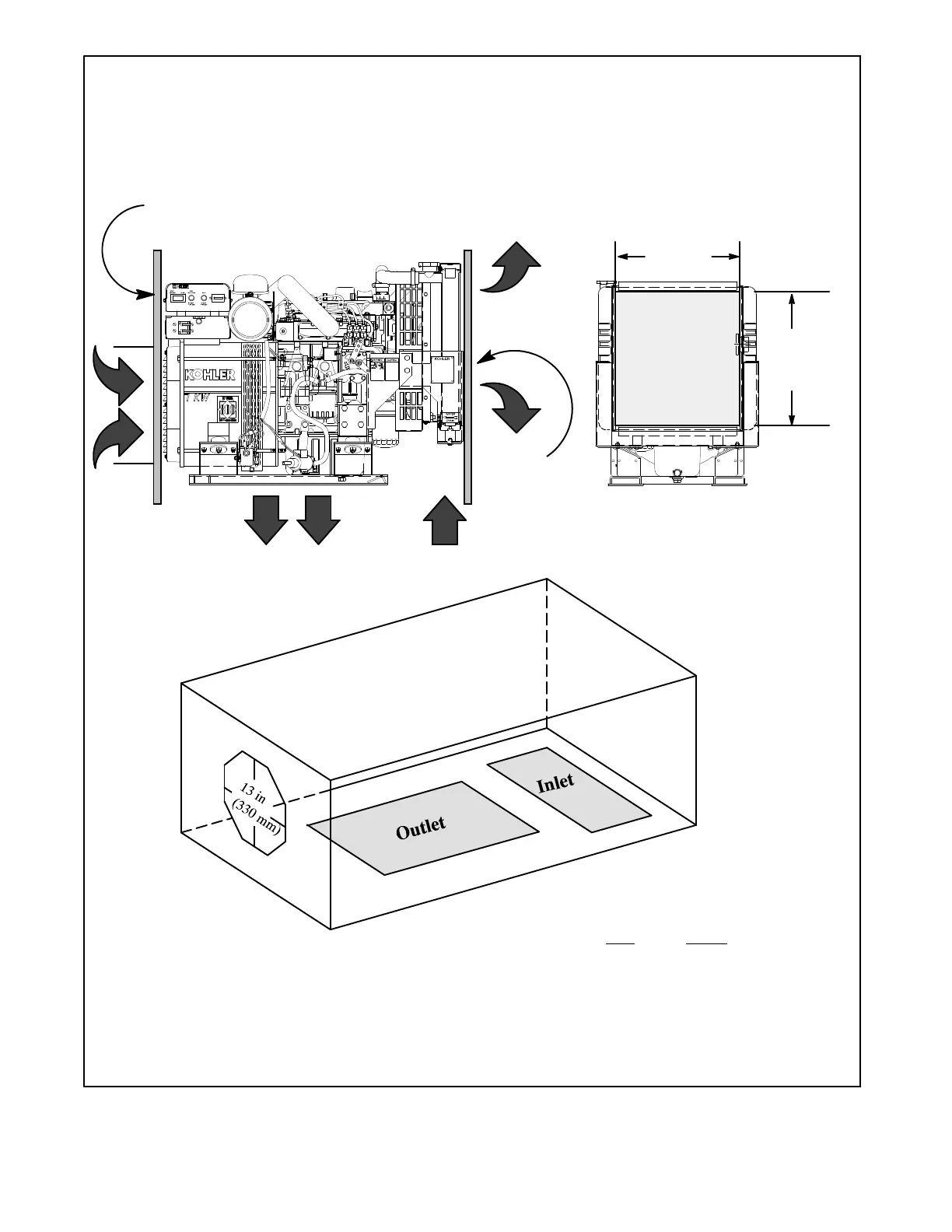

Figure 6-10. Inline-Radiator Model Air-Flow Requirements with Pusher Fan.
