Kohler 7CCFO - Page 81

TP-5594 5/95 Installation 6-25
11
2
533
10
6 4 2
5 3 1
53
3
2
4
ON Lamp
Start
Stop-Preheat
Ground
Pin No. Lead No. Function
1 4 Ground
2 53 On Lamp
3 10 Water Temperature
4 3 Start
5 2 Stop-Preheat
6 11 Oil Pressure
P3
4
11
Oil Pressure
Gauge (if equipped)
10
Water Temperature
Gauge (if equipped)

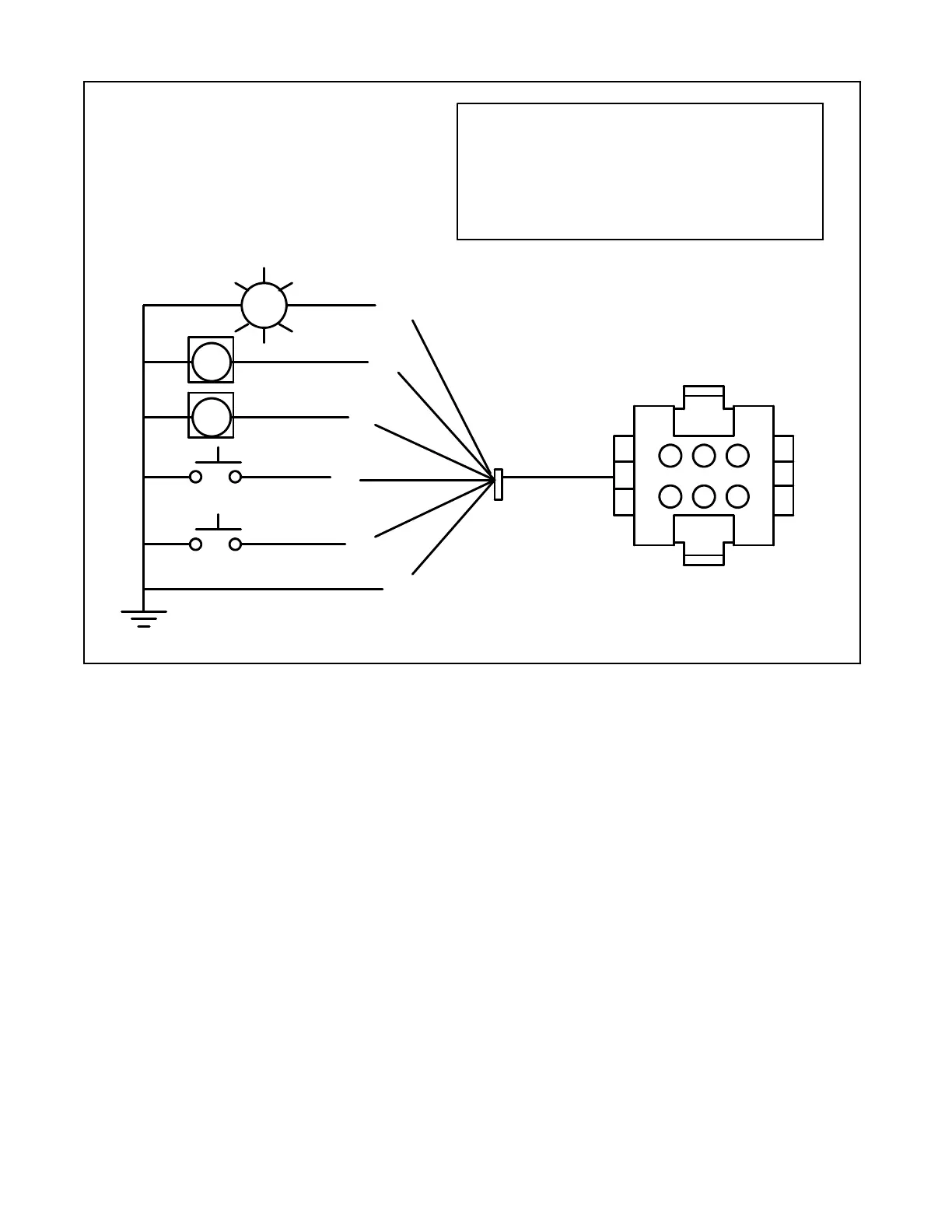

Figure 6-24. Panel Wiring (P3 Wiring Harness)
