TP-6195 1/04 23Section 5 Diagrams and Drawings
-
P1 CONNECTIONS
P1--1 STARTER RELAY OUT
P1--2 SPARE OUTPUT
P1--3 COMMON FAULT
P1--4 GOVERNOR 1B
P1--5 GOVERNOR 1A
P1--6 GOVERNOR 2A
P1--7 GOVERNOR 2B
P1--8 COOLANT TEMP SENSOR HIGH
P1--9 COOLANT TEMP SENSOR LOW
P1--10 EXTERNAL CAN H
P1--11 EXTERNAL CAN L
P1--12 AUX SHUTDOWN
P1--13 FUEL RELAY OUT
P1--14 TACH OUT
P1--15 OIL PRESSURE SWITCH
P1--16 GROUND
P1--17 VR SENSOR LOW
P1--18 GROUND
P1--19 PRESSURE SENSOR GROUND
P1--20 GROUND
P1--21 GROUND
P1--22 GROUND
P1--23 GROUND
P1--24 VBAT +
P1--25 REMOTE START/STOP 1
P1--26 REMOTE START/STOP 2
P1--27 GROUND
P1--28 COOLANT LEVEL/LOSS HIGH
P1--29 VR SENSOR HIGH
P1--30 PRESSURE SENSOR SOURCE
P1--31 PRESSURE SENSOR SIGNAL
P1--32 GROUND
P1--33 VBAT ON
P1--34 GROUND
P1--35 RS232 TXD
P13 CONNECTIONS
P13--1 RUN RELAY COMMON
P13--2 COMMON FAULT COMMON
P13--3 COMMON FAULT NC
P13--4 RUN RELAY NO
P13--5 RUN RELAY NC
P13--6 COMMON FAULT NO
J16 CONNECTIONS
P16--1 FIELD DRIVE PLUS (G)
P16--2 FLASH RELAY OUT
P16--3 AUX WINDING INPUT (55)
P16--4 FIELD DRIVE MINUS (F+)
P16--5 N/C
P16--6 AUX WINDING INPUT (66)
J15 CONNECTIONS
J15--1 AC INPUT (V7/11)
J15--2 AC INPUT (V8)
J15--3 AC INPUT (V9/44)
ADC 2100 CONTROLLER
RELAY INTERFACE BOARD
P14--9 STARTER (71A)
P14--8 GROUND
P14--7 FUEL (70A)
P14--6 VBAT
P14--5 FLASH RELAY CONTROL
P14--4 IGNITION NEGATIVE
P14--3 STARTER RELAY CONTROL
P14--2 COMMON FAULT RELAY CONTROL
P14--1 FUEL/AUX RUN RELAY CONTROL
P14 CONNECTIONS
P5--9 N/C
P5--8 N/C
P5--7 N/C
P5--6 N/C
P5--5 GROUND
P5--4 N/C
P5--3 RS232 TXD
P5--2 RS232 RXD
P5--1 N/C
P5 CONNECTIONS
P7 CONNECTIONS
P7--1 N/C
P7--2 CONTINUOUS POWER MODE SELECT
P7--3 GROUND
AUTO
VBAT
RUN
RUN
12
2
6
1
4
7
8
3
9
5
P5
35
AUTO
OFF/RESET
P1
1
24
P7
32
ADC2100
1
GRY
3
2
VIO
FL
BLU
ORG
J15
6
5
YEL
2
3
T2
BLK
J16
4
RED
1
FP
9
T1
FN
7
6
3
P13
P14
3
4
1
1
RIB
1

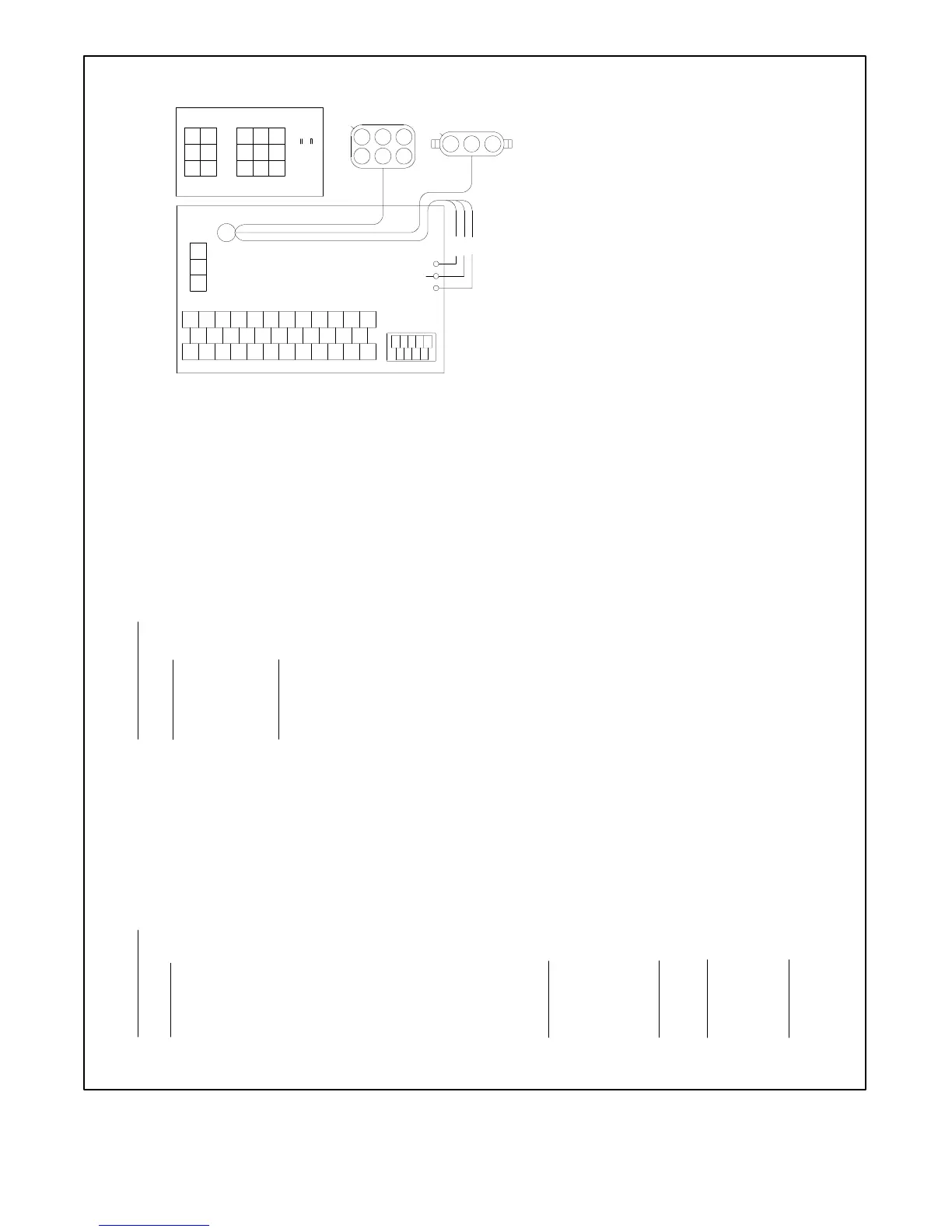

Figure 5-4 8.5/12RES Schematic Diagram, Single Phase, Sheet 2, ADV-6835B
