Kohler Command PRO CH440 Service Manual

1.6
Section 1
Safety and General Information
Dimensions in millimeters.
Inch equivalents shown in ( ).

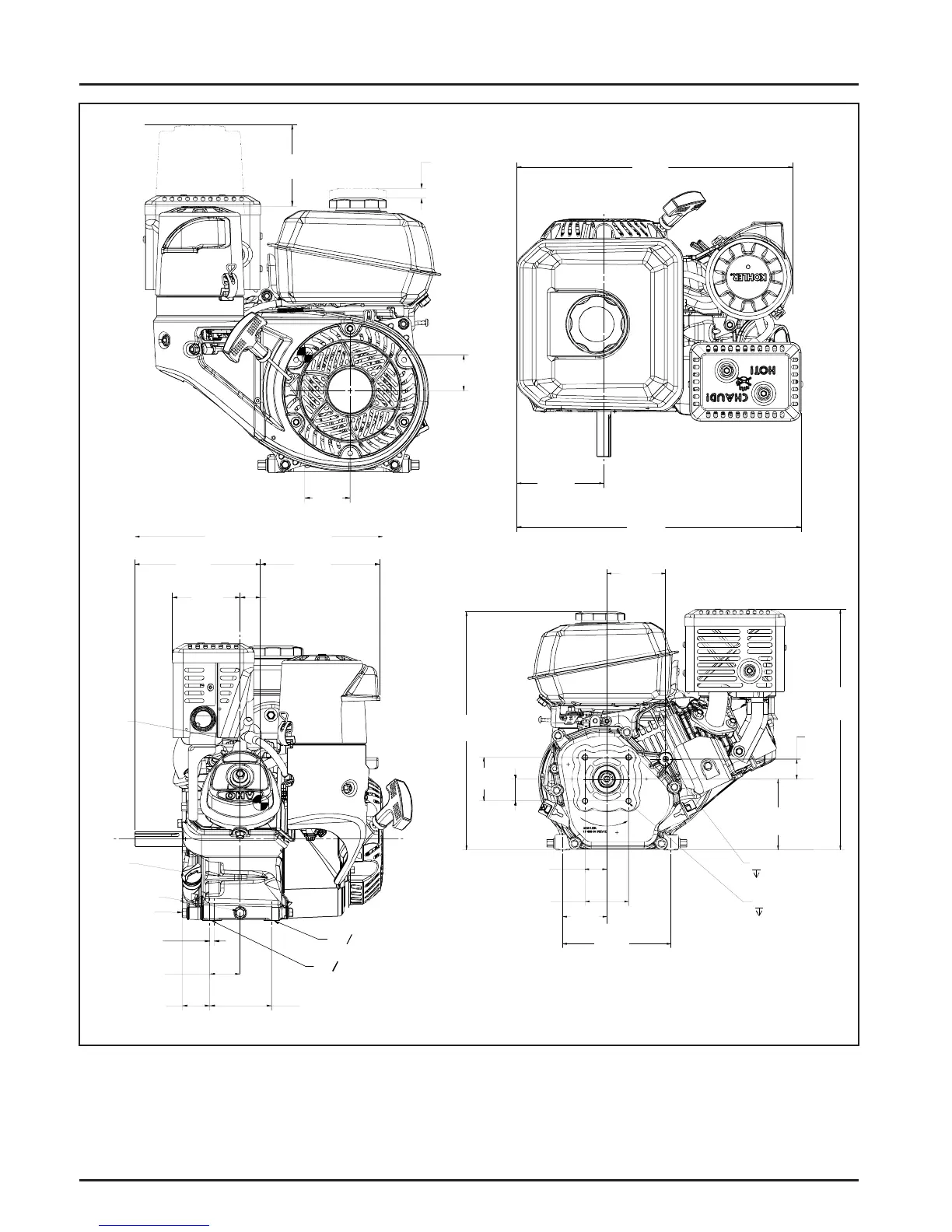

Figure 1-5. Typical Engine Dimensions-CH270.
373.53
(14.706)
SPARK
PLUG
118.03
(4.647)
384.87
(15.153)
47.11
(1.855)
12.50
(0.492)
GAS CAP
REMOVAL
AIR CLEANER
COVER REMOVAL
106.00
(4.173)
58.75
(2.313)
322.25
(12.687)
STRAIGHT PTO
163.28
(6.428)
155.03
(6.104)
26.48
(1.043)
88.23
(3.474)
OIL
FILL
OIL
DRAIN PLUG
MOUNTING
FACE
2X 0 10.00
(0.394)
2X 0 10.00 x 15.50 SLOT
(0.394 x 0.610)
79.99
(3.149)
35.70
(1.406)
39.33
(1.548)
5.50
(0.217)
162.00
(6.378)
66.00
(2.598)
65.08
(2.562)
32.55
(1.281)
88.00
(3.465)
360.57
(14.196)
30.00
(1.181)
106.00
(4.173)
M8 x 1.25-6H
THRU
4X M8 x 1.25-6H
15.00 (0.591)
356.46
(14.034)
65.10
(2.563)
32.55
(1.281)

Kohler Command PRO CH440 Specifications

General

Compression Ratio	8.0:1
Fuel System	Carburetor
Cooling System	Air-cooled
Ignition System	Electronic
Governor Type	Mechanical
Engine Type	4-cycle, OHV
Displacement	429 cc
Power	14 HP
Oil Capacity	1.4 L
Starter Type	Electric
Weight	32 kg
