Retractable Starter
7
Section 7
Retractable Starter
WARNING: Spring Under Tension!
Retractable starters contain a powerful, recoil spring that is under tension. Always wear safety goggles when servicing
retractable starters and carefully follow instructions in this section for relieving spring tension.

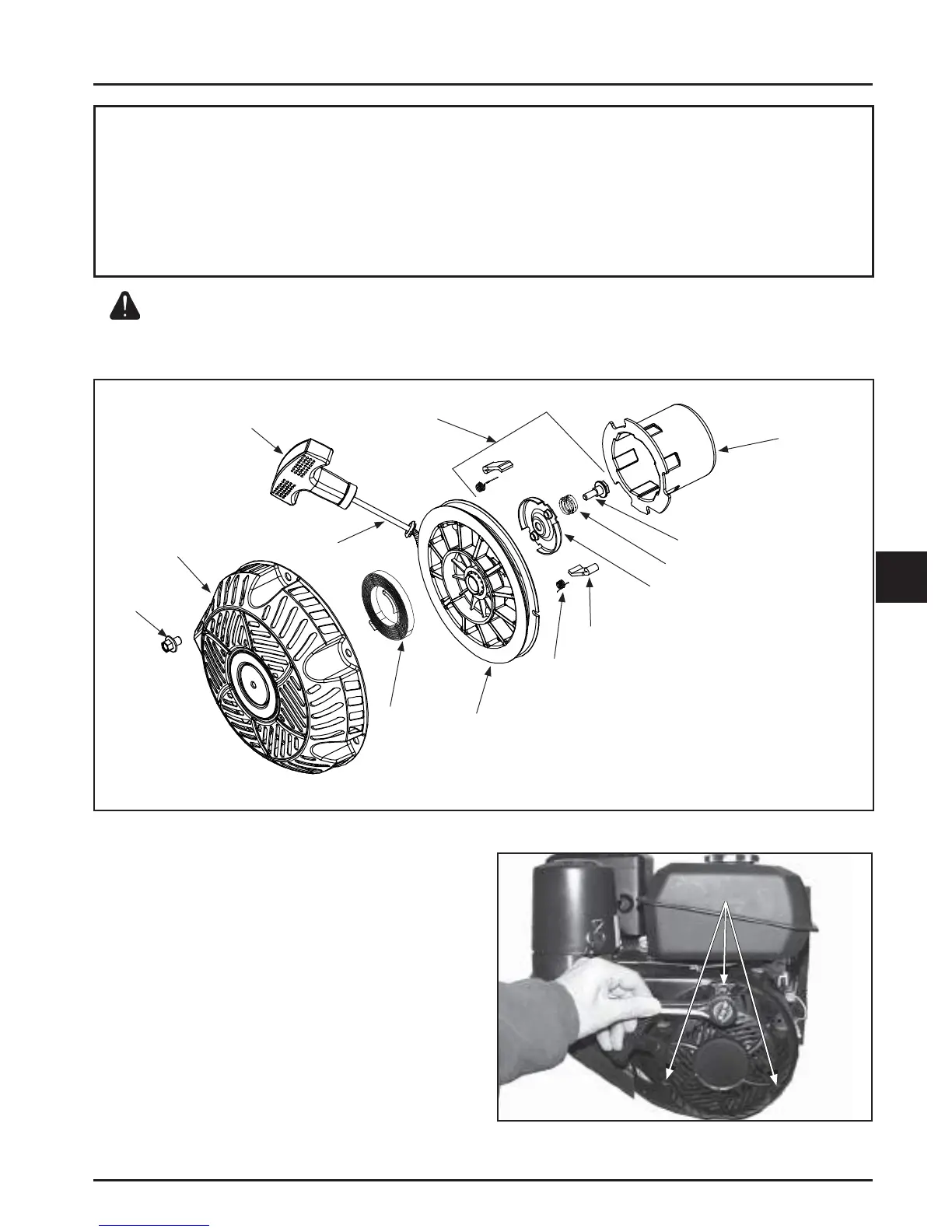

Figure 7-1. Retractable Starter - Exploded View.
To Remove Starter
1. Remove the three hex fl ange screws securing the
starter assembly to the blower housing.
2. Remove the starter assembly.
To Install Starter
1. Align the retractable starter with the mounting
locations on the blower housing, and install the
hex fl ange screws. Leave the screws slightly
loose. See Figure 7-2.
Screws
Figure 7-2. Installing Retractable Starter.
Starter
Housing
Recoil
Spring
Pulley
Drive Cup
Starter
Handle
Starter
Rope
Pawl Repair
Kit
Spring
Drive Pawl
Friction Spring
Drive Plate
Center Screw
Screws
