9.14
Section 9
Disassembly

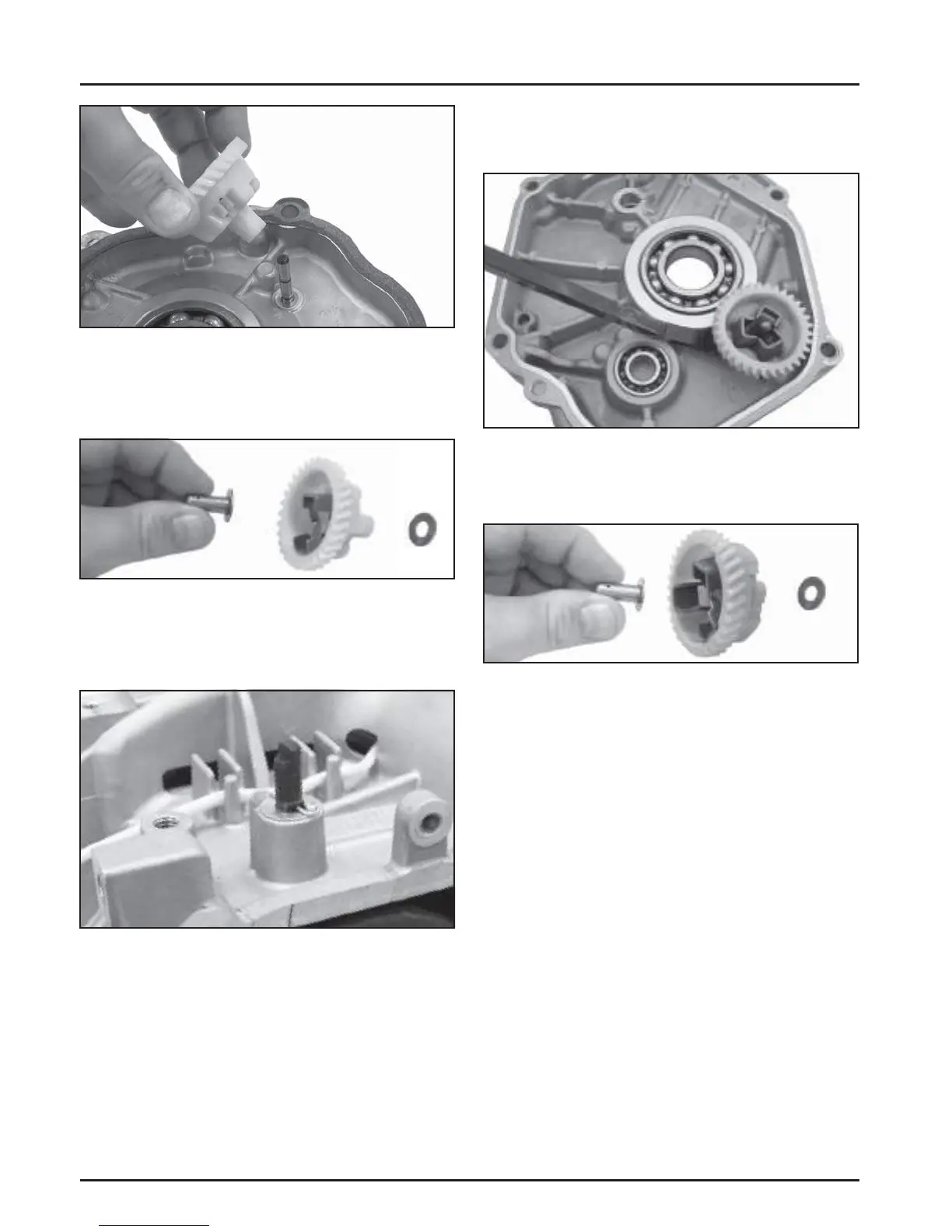

Figure 9-58. Removing Governor Assembly Cup
and Washer.
NOTE: Take note of the orientation of the governor
gear components. See Figure 9-59.
Figure 9-59. CH395 Governor Assembly
Components.
2. Remove the hitch pin and washer from the
governor cross sha . See Figure 9-60.
Figure 9-60. Removing Governor Cross Shaft
Hitch Pin.
3. Remove the cross sha from inside the crankcase.
CH440 Governor Gear Assembly
1. The governor gear is located in the closure plate.
To remove the governor gear, pry underneath the
gear to li it off the sha . See Figure 9-61.
NOTE: Do not pry on the gasket surface of the
closure plate, as this can cause damage and
leakage.
Figure 9-61. Pry Governor Gear to Remove.
NOTE: Take note of the orientation of the governor
gear components. See Figure 9-62.
Figure 9-62. CH440 Governor Assembly
Components.
NOTE: The governor gear sha is pressed into the
closure plate, and should not be removed
unless damaged.
2. If the governor gear sha is bent or damaged,
remove it by pulling straight out.
3. Remove the hitch pin and washer from the
governor cross sha . See Figure 9-63.
