9.11
Section 9
Disassembly
9

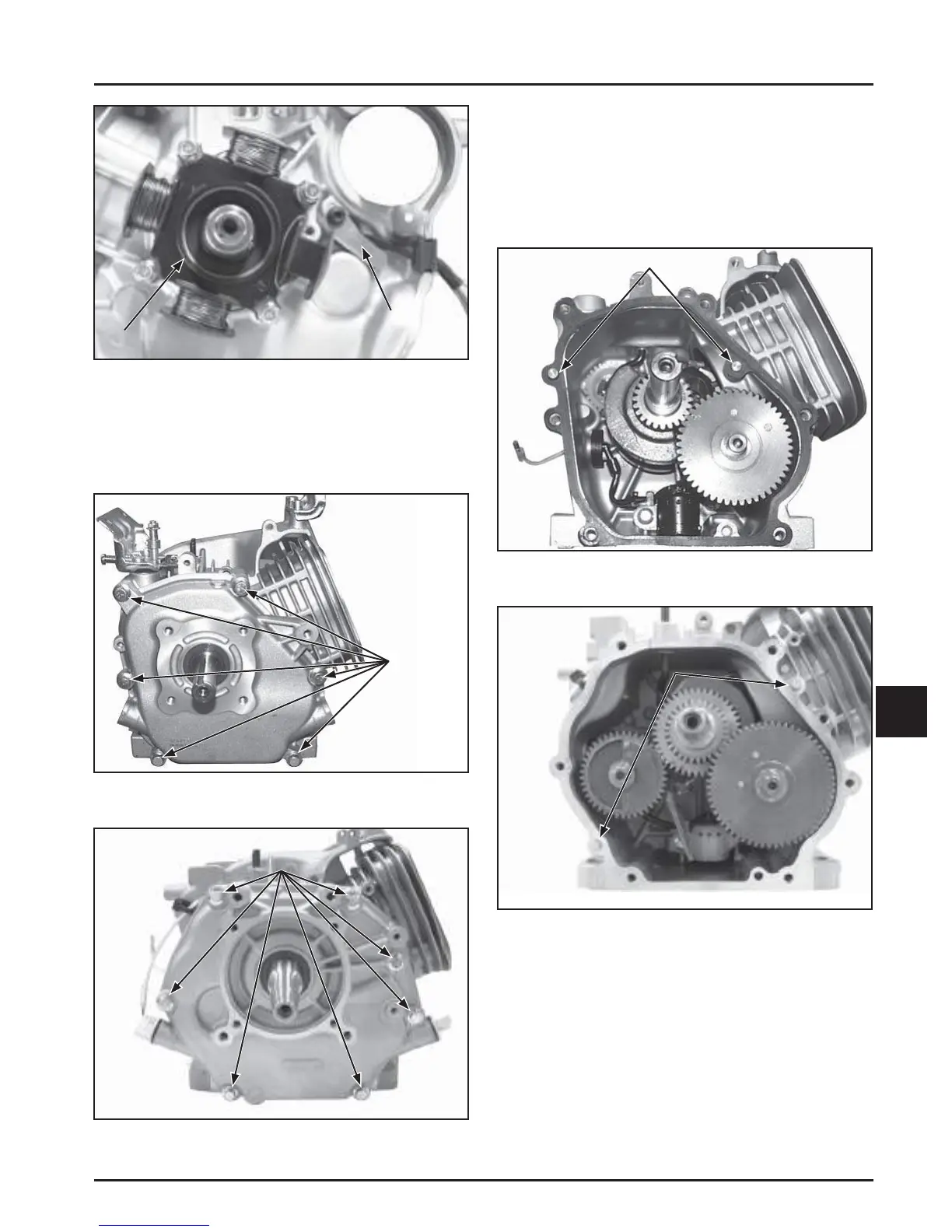

Figure 9-43. Remove Bracket and Stator.
Remove Closure Plate
1. Remove the hex fl ange screws securing the
closure plate to the crankcase. See Figures 9-44
and 9-45.
Hex
Screws
Figure 9-44. CH270 Closure Plate Mounting
Screws.
Hex
Screws
Figure 9-45. CH395, CH440 Closure Plate Mounting
Screws.
2. Remove the closure plate gasket and dowel pins
if required from the crankcase. See Figures 9-46
and 9-47.
NOTE: Do not pry on the gasket surface of the
crankcase or closure plate, as this can
cause damage and leakage.
Dowel Pins
Figure 9-46. CH270 Closure Plate Gasket and
Dowel Pins.
Figure 9-47. CH395, CH440 Closure Plate Dowel
Pins.
3. Remove the shims from the cranksha and
camsha .
Remove Balance Shaft (If Equipped)
1. Remove the balance sha by pulling it straight
out of the crankcase. See Figure 9-48.
Stator
Stator Wire
Bracket
Dowel Pins
To Next Page
