Electrical System
4362 690 01 Rev. J KohlerEngines.com

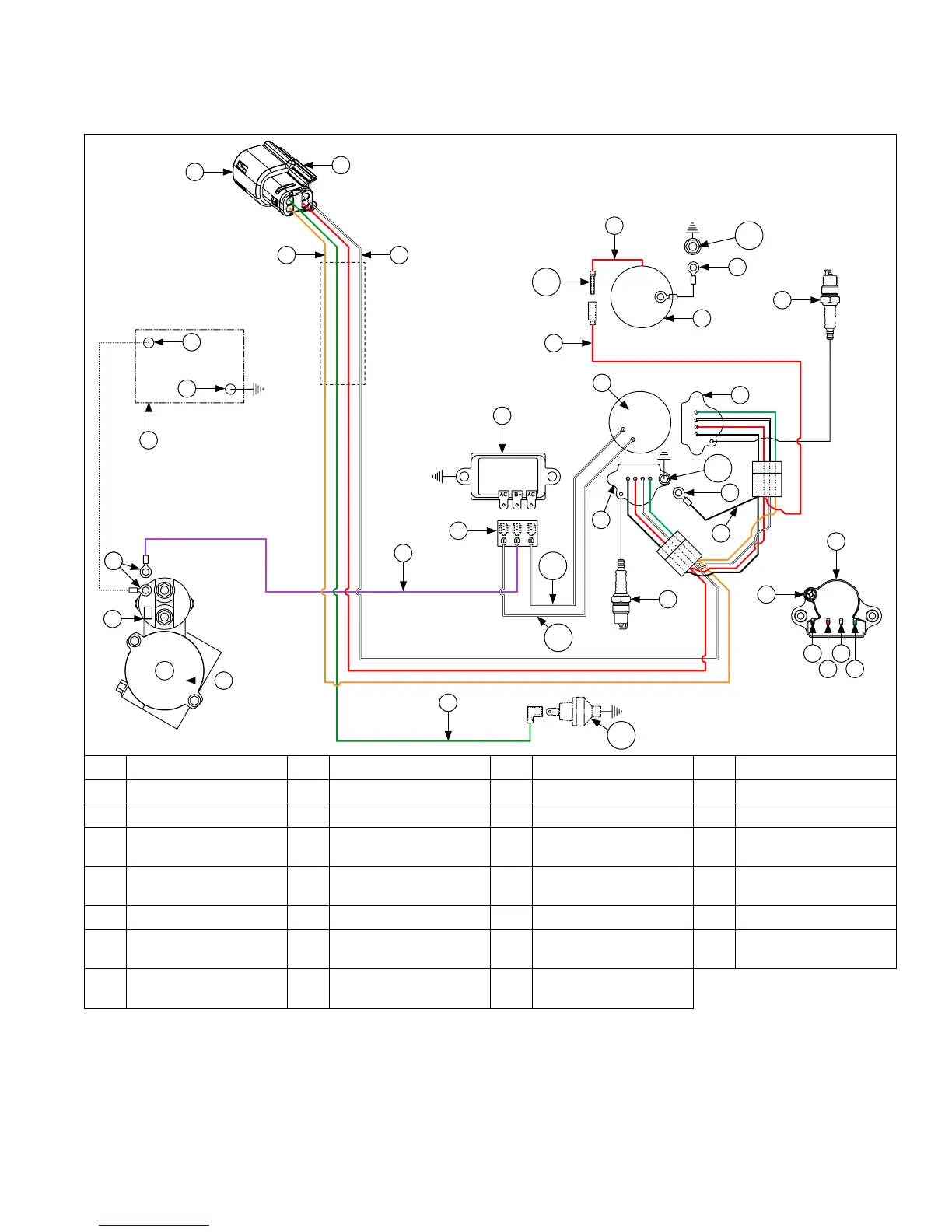

Wire Diagram-15/20/25 Amp Regulated Battery Charging System with DSAI Ignition and Four Pin Connector
(LP-NG Kohler Power Systems Application)
G
AC
C
K
O
S
A
A
U
V
W
X
Y
R
M
I
C
H
Z
Q
AA
AB
Z
J
E
N
S
T
T
T
B
P
D
AD
AD
L
A Red B Green C Orange D Violet
E White F Black G Connector H Polarity Ribs
I Battery J Battery Positive K Battery Negative L Starter Solenoid Stud
M
External Starter
Solenoid Wire
N Starter O
Rectier-Regulator
Connector
P Rectier-Regulator
Q Carburetor R
Flywheel Stator
Assembly
S Spark Plug(s) T Ignition Module(s)
U Spark Plug Lead V Black (Ground) W Red (B+) X White (Shut Off)
Y Green (LP/NG Switch) Z Ground AA
Module Mounting
Screw
AB
Carburetor Mounting
Stud
AC Oil Sentry
™
AD
White
(AC Charging Leads)
AE Solenoid Lead
F
AE
To Next Page
