9.8
Section 9
Disassembly
4. Remove the two electric starter mounting bolts.
See Figures 9-29 and 9-30.

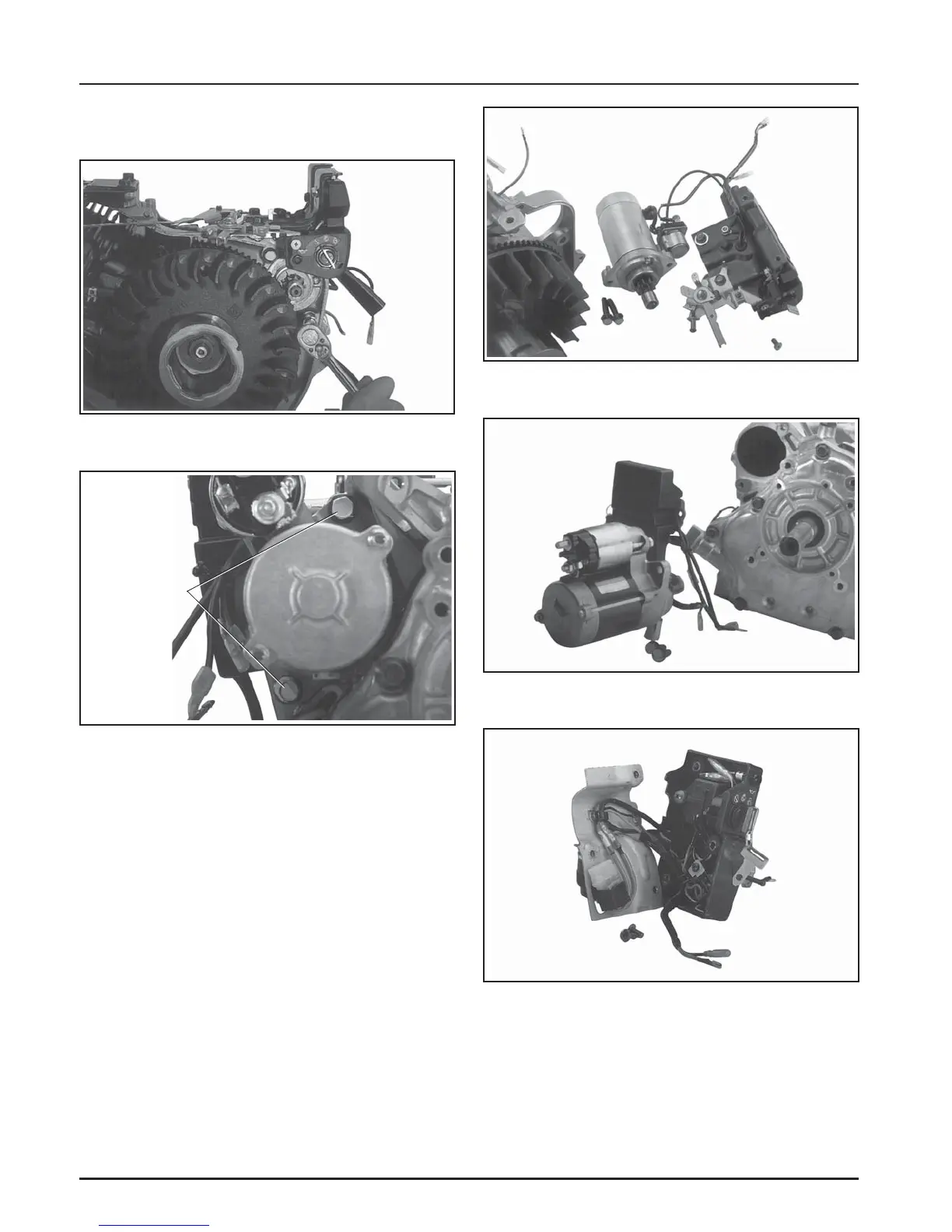

Figure 9-29. Removing Inertia Drive Starter
Mounting Bolts.
Figure 9-30. Starter Bolts on Models with Solenoid
Shift Starters.
5. Remove the starter motor, wiring harness and
control panel housing from the engine.
Components may be further disassembled if
required. See Figures 9-31, 9-32, and 9-33.
Figure 9-31. Inertia Drive Starter and Control Panel
Removed.
Figure 9-32. Solenoid Shift Starter and Control
Panel Removed.
Figure 9-33. Control Panel and R.H. Tank Bracket.
Starter
Mounting
Bolts
