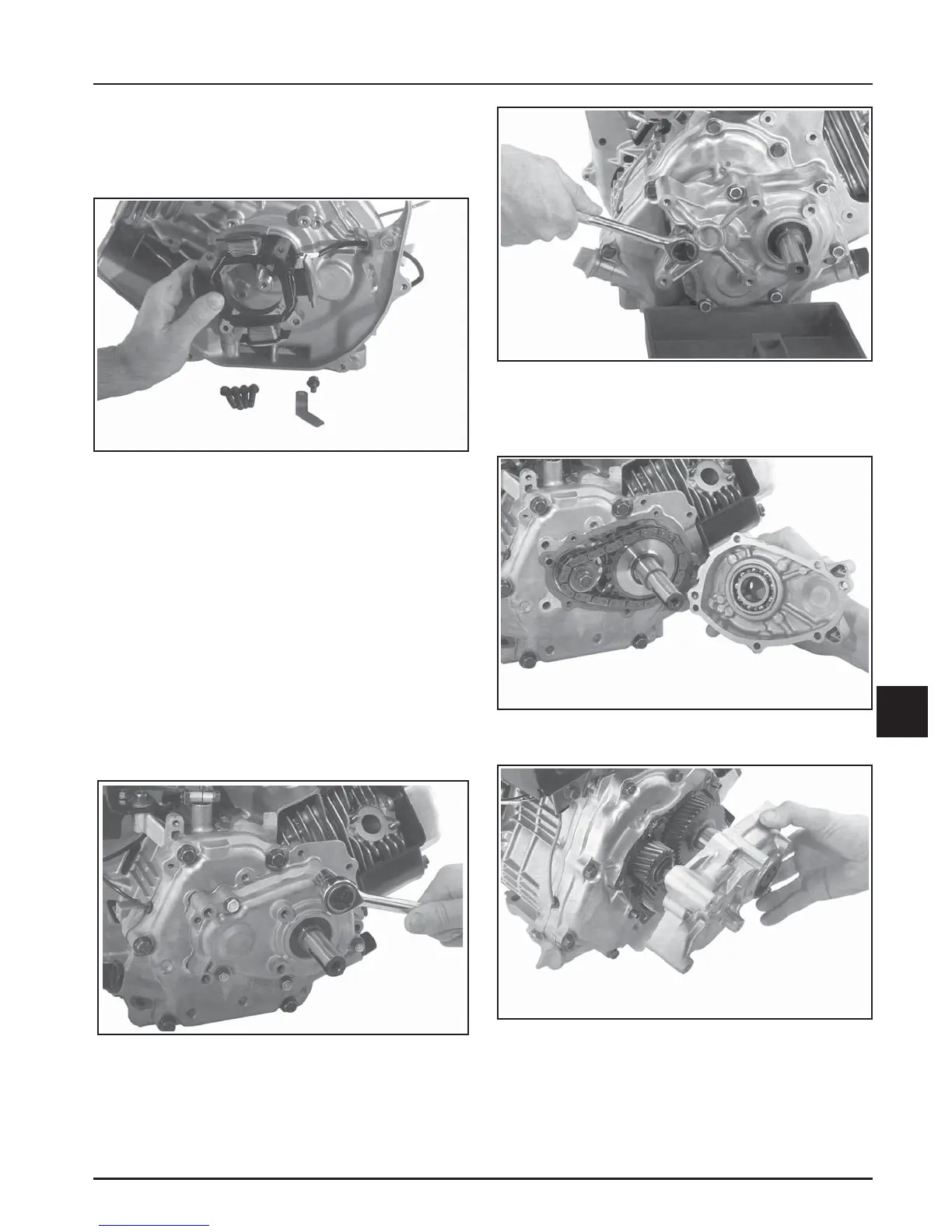

Figure 9-53. Removing Mounting Screws and
Stator.
Remove Reduction Assembly (If So
Equipped)
2:1 Reduction Assembly
1. Remove any drive coupling and the key from the
reduction assembly output shaft. Clean the shaft
and keyway of any burrs/damage.
2. Remove the mounting bolts securing the
reduction system housing onto the crankcase.
Place a flat pan or towel under the housing to
catch any remaining oil. See Figures
9-54 and 9-55.
2. Remove the four hex flange shoulder screws
securing the stator to the crankcase. Remove the
stator and pull the wires through the opening in
the casting. See Figure 9-53.
Figure 9-55. Removing Reduction Housing Screws
on CS8.5-CS12.
3. Pull the reduction housing off the closure plate.
Figure 9-57. Removing Reduction Housing on
CS8.5-CS12.
Figure 9-56. Removing Reduction Housing on CS4,
CS6.
Figure 9-54. Removing Reduction Housing Screws
on CS4, CS6.
