9.19
Section 9
Disassembly
9
Remove Balance Shaft (If So Equipped)
1. Pull the balance shaft out of the crankcase.

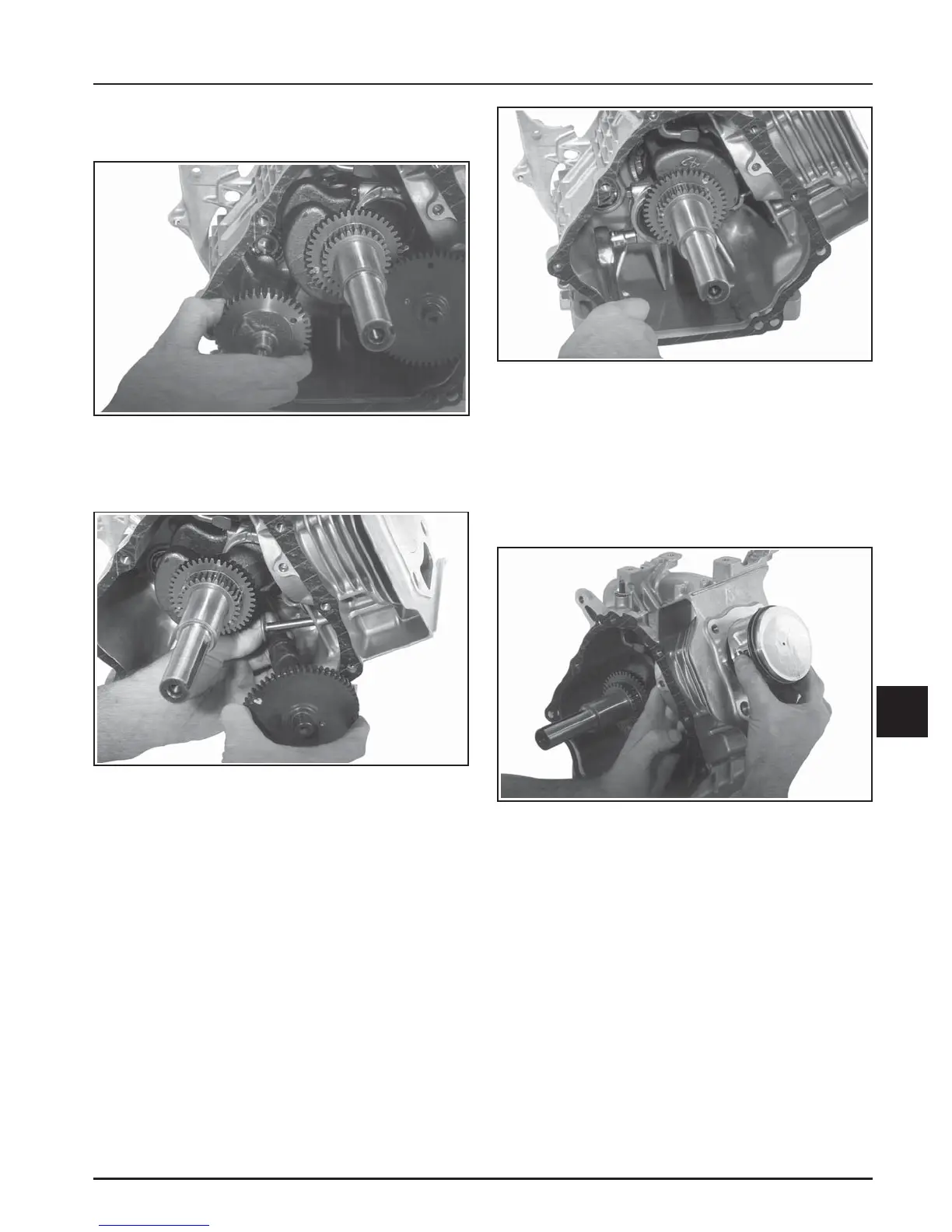

Figure 9-84. Removing Connecting Rod Bolts.
NOTE: If a carbon ridge is present at the top of the
cylinder bore, use a ridge reamer to remove
it, before attempting to remove the piston.
2. Carefully remove the connecting rod and piston
assembly from the cylinder bore. See Figure
9-85.
Figure 9-85. Removing Piston.
Figure 9-82. Removing Balance Shaft.
Remove Camshaft and Tappets
1. Remove the camshaft from the crankcase.
Figure 9-83. Removing Camshaft and Tappets.
2. Remove and mark the tappets.
Remove Connecting Rod with Piston and
Rings
1. Remove the two hex flange screws securing the
connecting rod cap. Remove the rod cap.
To Next Page
