9.20
Section 9
Disassembly
Remove Crankshaft
1. Carefully remove the crankshaft from the
crankcase.
Figure 9-87. Removing Governor Cross Shaft Hitch
Pin.
2. Remove the cross shaft out through the inside of
the crankcase.

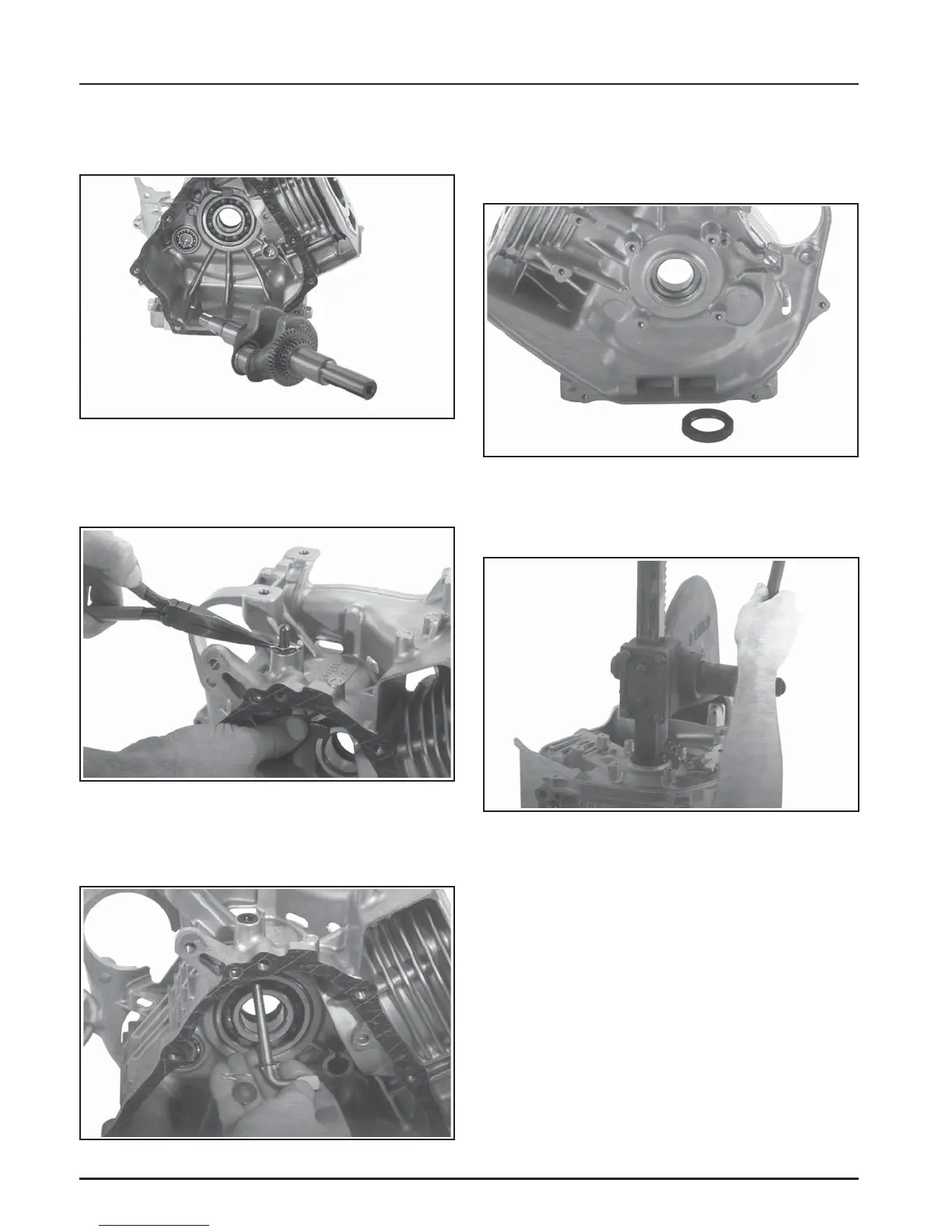

Figure 9-86. Removing Crankshaft.
Remove Governor Cross Shaft
1. Remove the hitch pin and plain washer from the
governor cross shaft. See Figure 9-87.
Remove Flywheel End Main Bearing and
Oil Seal
1. Remove the front oil seal from the crankcase. See
Figure 9-89.
Figure 9-89. Oil Seal Removed.
2. Remove the front main bearing from the
crankcase using an arbor press. See Figure 9-90.
Figure 9-90. Removing Main Bearing with Press.
Remove Balance Shaft Bearing
1. Remove the balance shaft bearing using an
internal bearing puller.
Figure 9-88. Removing Governor Cross Shaft with
Inner Washer.
