Section 11
Reassembly
11.14

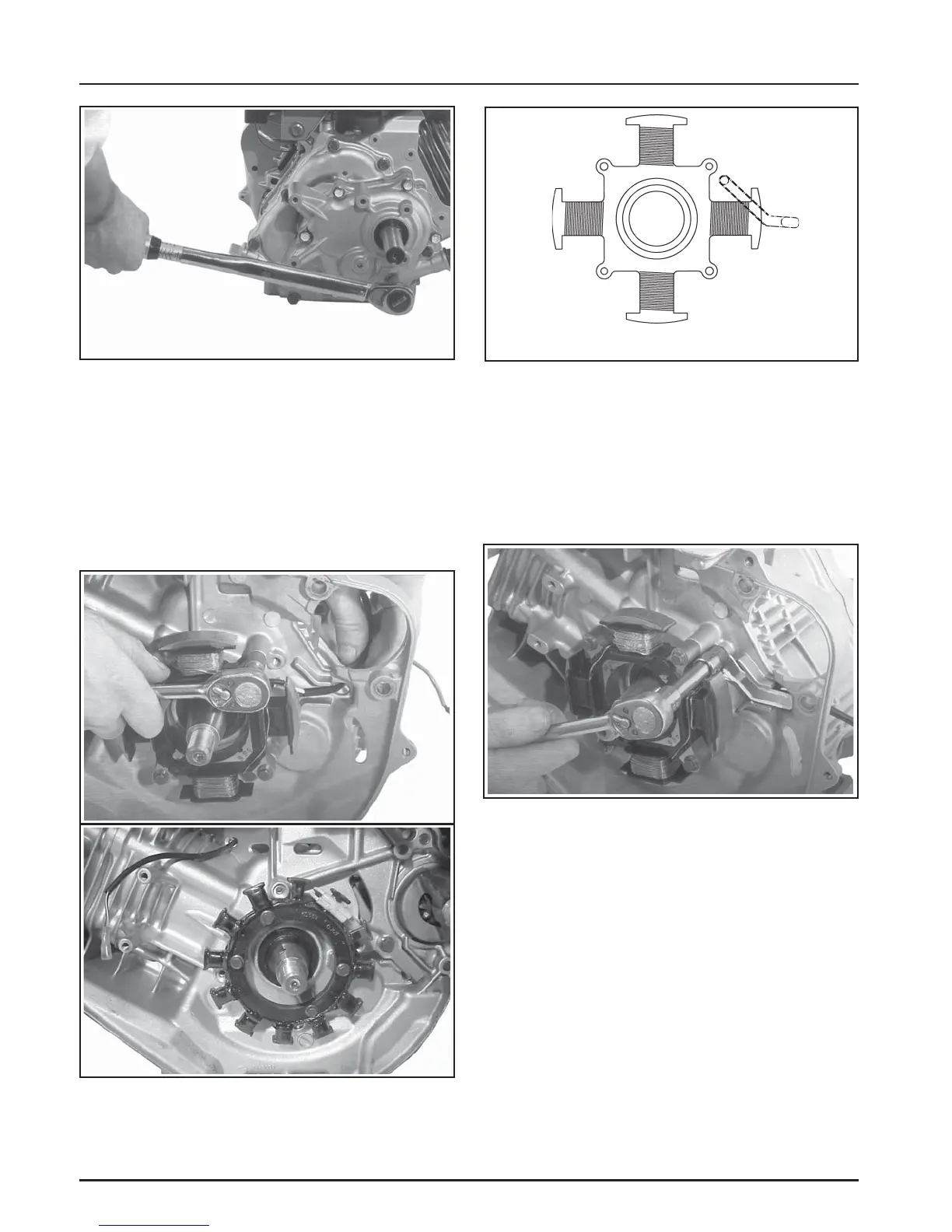

Figure 11-56. Installing Shield.
Figure 11-53. Torquing Mounting Screws.
Install Stator and Wire Shield (If So
Equipped)
1. Align stator holes with mounting bosses of
crankcase so the leads are at the 1 o’clock position
and toward the crankcase. Install the four M6
shoulder screws and torque the screws in
sequence shown (as applicable) to 5-8 N·m
(44-70 in. lb.).
Figure 11-54. Installing Stator Mounting Screws.
Figure 11-55. Stator Screws Torque Sequence.
2. Route the stator leads along the formed channel
and out through the hole in the crankcase casting.
3. Install the protective wire shield over the channel
and secure in place with the M6x1.0 screw.
Torque screw to 10 N·m (88.5 in. lb.). See Figure
11-56.
1
3
4
2
Style 1
Style 2
