9.3
Section 9
Disassembly
9

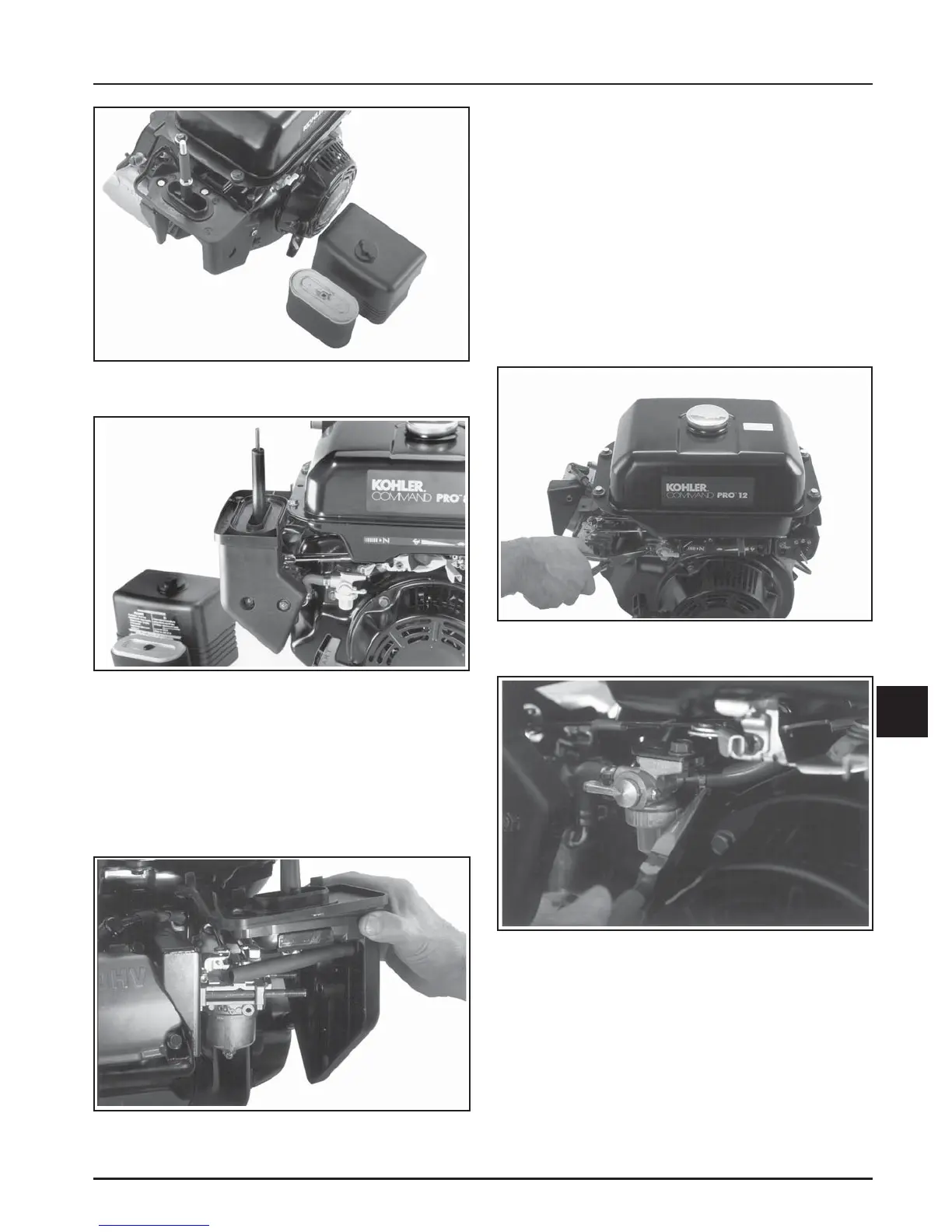

Figure 9-6. CS8.5 (spec. 92xxxx), CS10, and CS12
Air Cleaner Base.
Figure 9-7. CS8.5 (spec. 95xxxx) Air Cleaner Base.
2. Remove the two hex flange nuts securing the base
to the carburetor mounting studs.
3. Disconnect one end of the breather hose from the
valve cover or air cleaner base.
4. Pull the air cleaner base off the studs.
Figure 9-8. Removing Air Cleaner Base.
Remove Fuel Tank
1. Make sure the fuel tank is empty. If the fuel shut-
off valve is mounted directly to tank, close the
valve. See Figure 9-2.
2. Loosen the clamp and disconnect the fuel line
from the outlet of shut-off valve (fuel tank
mounted valves) on CS4, CS6, CS8.5 (spec.
92xxxx), CS10, and CS12 engines. See Figure
9-9. On the CS8.5 (spec. 95xxxx) loosen the clamp
and disconnect the fuel line from the inlet of the
shut-off valve (blower housing mounted valves).
See Figure 9-10.
Figure 9-9. Disconnecting Fuel Line on CS4, CS6,
CS8.5 (spec. 92xxxx), CS10, and CS12.
Figure 9-10. Disconnecting Fuel Line on CS8.5
(spec. 95xxxx).
3. Remove the four fuel tank mounting screws and
lift off the fuel tank assembly.
