Kohler Command Pro EFI ECH940 User Manual

Specifi cations
12 62 690 13 Rev. AKohlerEngines.com

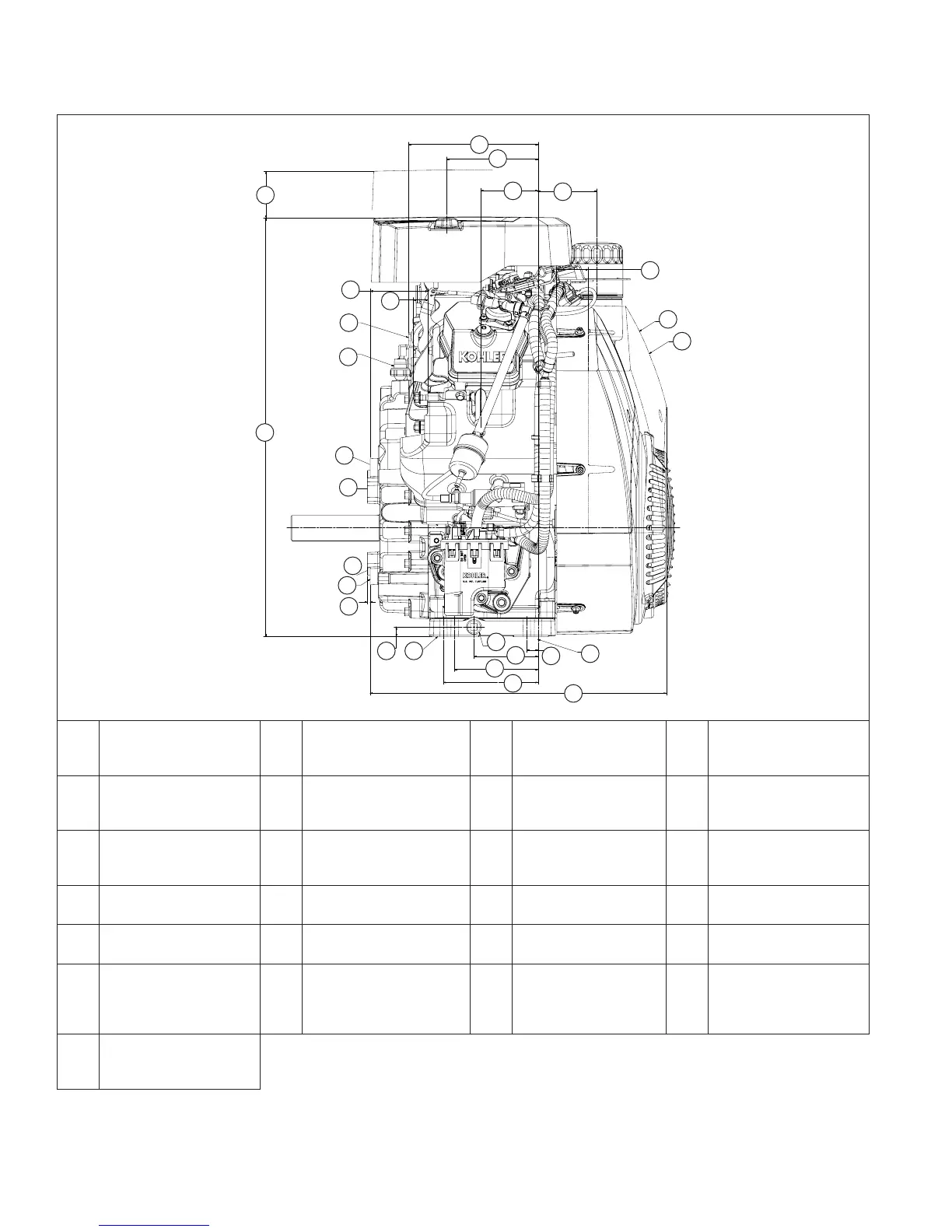

Engine Dimensions with Low-Profi le Air Cleaner - Opposite Starter Side
A
C
B
Q
L
M
K
O
N
J
R
P
H
G
F
E
D
I
T
S
R
U
V
W
X
Y
S
A 184.9 mm (7.28 in.) B 130.4 mm (5.13 in.) C
81.8 mm (3.22 in.)
Center Line Spark
Plug
D
84.0 mm (3.31 in.)
Oil Filter
E
45.6 mm (1.80 in.)
Cylinder #2 Shroud
Removal
F Cylinder #2 Shroud G
Access to Integrated
Oil Cooler
H Mounting Hole "A"
I 16.0 mm (0.63 in.) J
422.8 mm (16.65 in.)
Cylinder #2 Shroud
Removal
K 135.0 mm (5.32 in.) L 119.0 mm (4.69 in.)
M 91.5 mm (3.60 in.) N
Oil Drain Plug
1/2 NPT Inch
O
Engine Mounting
Surface
P 13.88 mm (0.55 in.)
Q
4 X 4.0 mm (0.16 in.)
Pilot Height
R
PTO Mounting
Surface
S Pilot Surface T 597.5 mm (23.52 in.)
U Oil Pressure Switch V Lifting Point W
82.4 mm (3.24 in.)
Exhaust Port #2
X
4 X 20.6 mm (0.81
in.)
Muffl er Mounting
Stud Height
Y
67.0 mm (2.64 in.)
Air Cleaner
Cover Removal

Kohler Command Pro EFI ECH940 Specifications

General

Brand	Kohler
Model	Command Pro EFI ECH940
Category	Engine
Language	English
