Disassembly/Inspection and Service
6562 690 13 Rev. A KohlerEngines.com
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

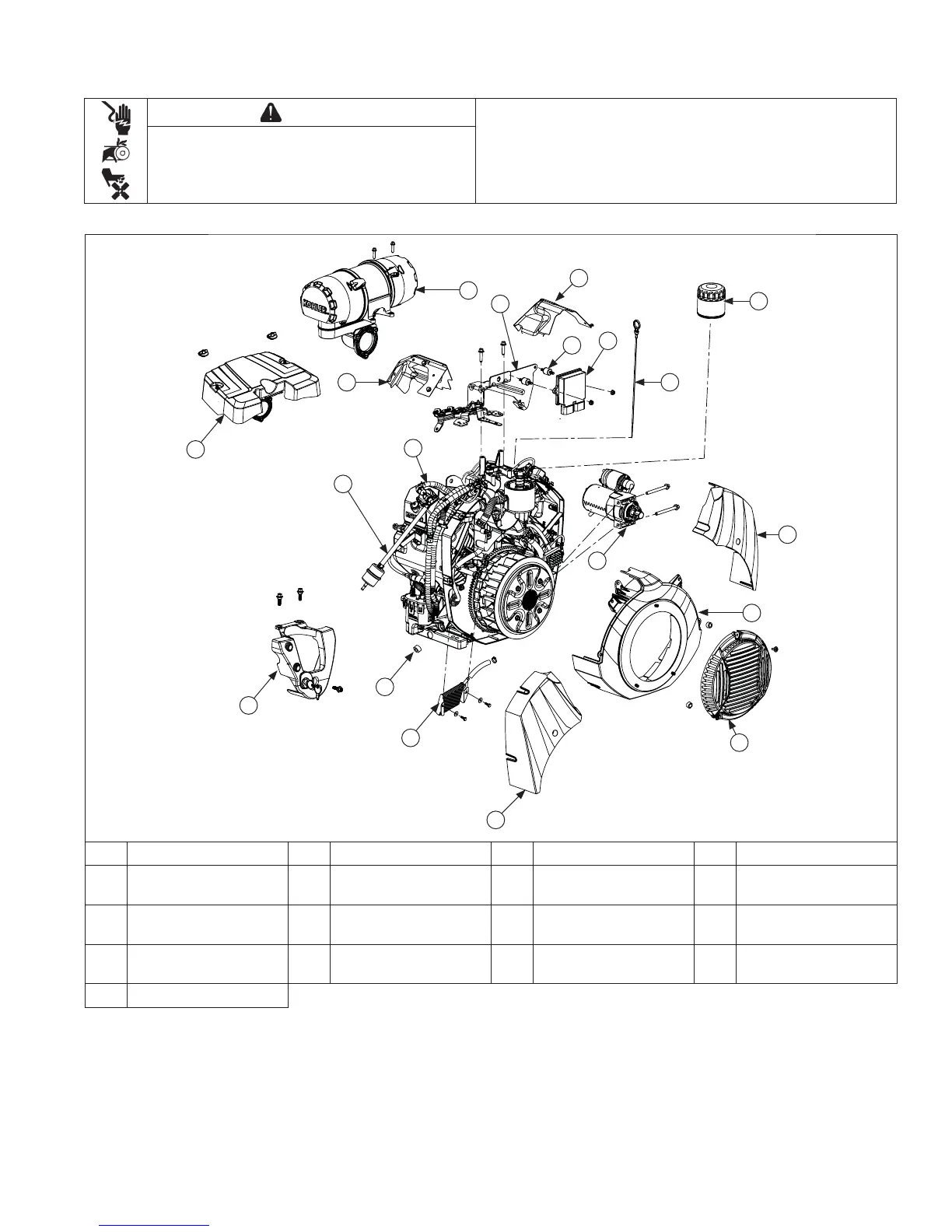

External Engine Components
E
H
H
M
D
B
C
A
I
C
F
G
J
K
L
N
P
O
Q
A Fixed Guard B Blower Housing C Cylinder Shroud D Electric Starter
E Dipstick F
Electronic Control
Unit (ECU)
G
Vibration Stud
Isolator
H Valley Baffl e
I Control Bracket J
Heavy-Duty Air
Cleaner
K
Low-Profi le Air
Cleaner
L Drain Plug
M Oil Cooler N
Control Panel (if
equipped)
O Inlet Fuel Line P Outlet Fuel Line
Q Oil Filter
To Next Page
