Reassembly
62 690 13 Rev. A KohlerEngines.com

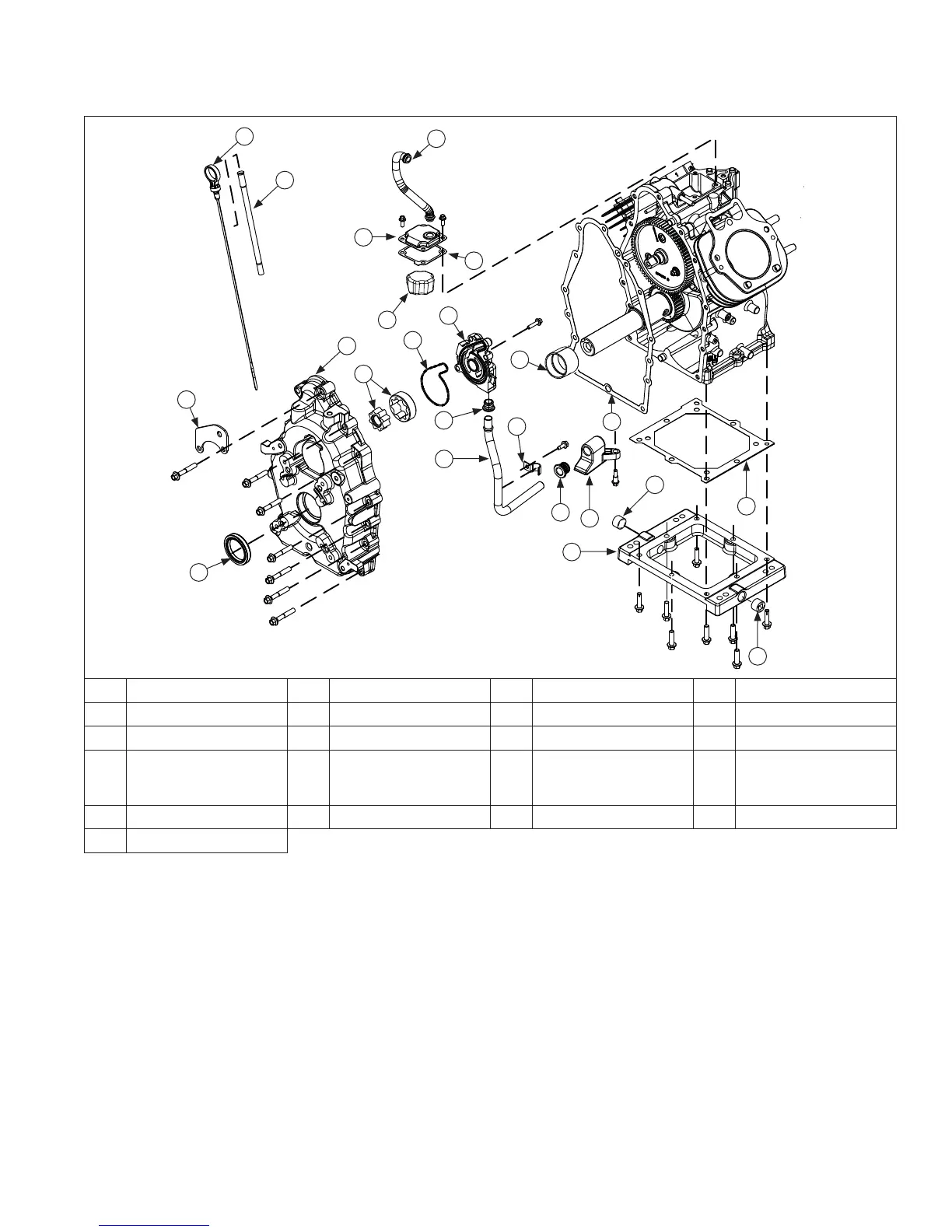

Breather/Closure Plate/Oil Reservoir Components
A
O
N
B
C
P
Q
U
T
R
S
D
E
I
G
J
J
K
M
L
G
F
H
A Closure Plate B Gerotor Gears C Oil Pump O-ring D Oil Pump Housing
E Pickup Tube F Clamp G Inlet Seal H Pickup Screen
I Oil Reservoir J Drain Plug K Gasket L Closure Plate Gasket
M
Crankshaft
Non-Thrust Bearing
(PTO)
N Dipstick O Dipstick Tube P Breather Assembly
Q Breather Gasket R Filter S Breather Hose T Lifting Strap
U Oil Seal
To Next Page
