UNITIZED THROTTLE AND CHOKE CONTROL
Some engines are equipped with a unitized throttle and choke control. This assembly controls choke and engine
speed with a single lever. Engines with a unitized throttle and choke control will have either a left side pull or a right
side pull.

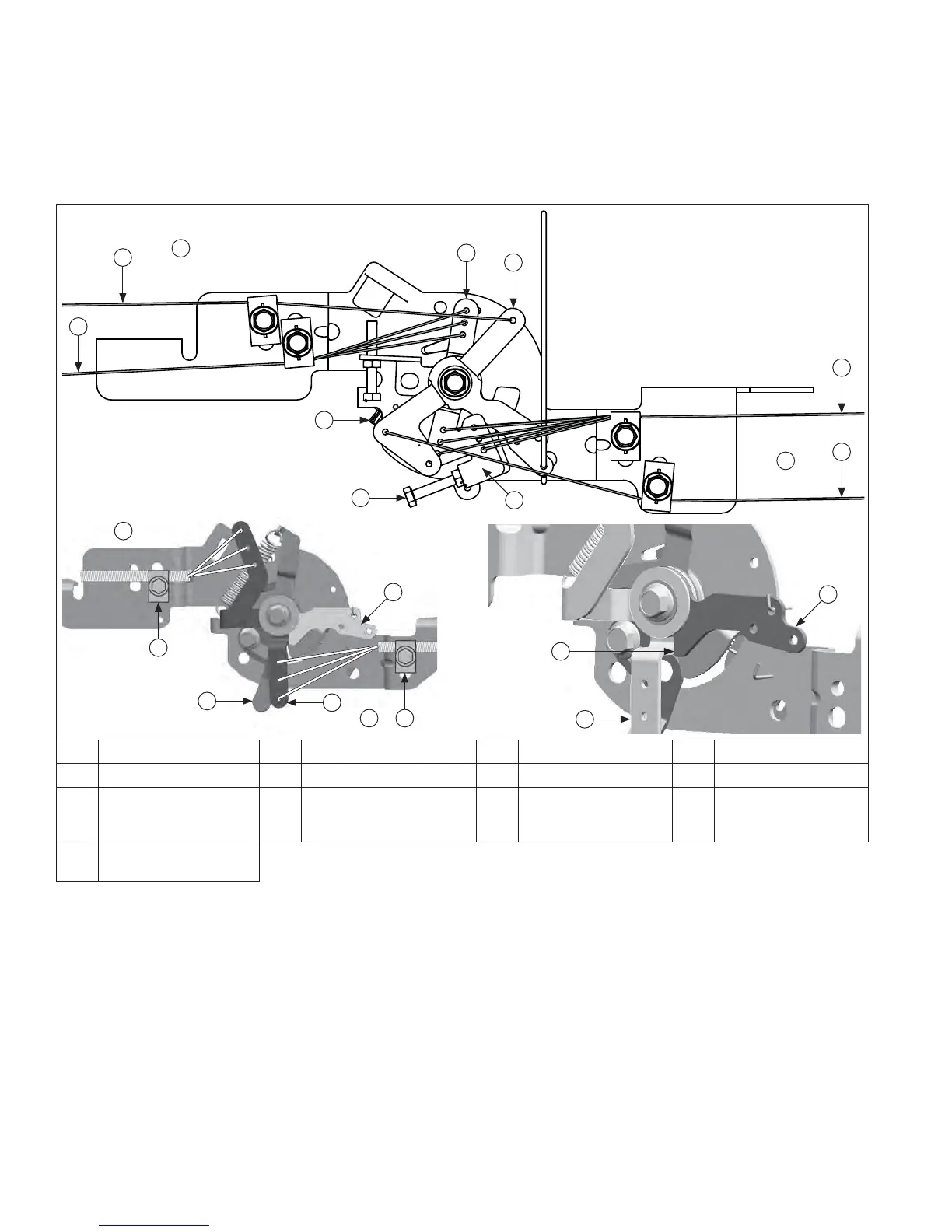

Governor/Throttle Control Connections
M
C
E
I
H
I
H
A
F
J
K
B
B
E
D
C
F
A
E
G
C
A Left Side Pull B Cable Clamp C Speed Control Lever D Speed Setting Lever
E Choke Lever F Right Side Pull G Contact Point H Choke Control Cable
I Throttle Control Cable J
Dual Control High Speed
Lever Stop Screw (Do
Not Remove)
K
High Speed Adjusting
Screw
L Choke Linkage
M
High Speed Control
Lever
