Kohler Courage SH265 Service Manual

39
Disassembly/Inspection and Service
18 690 01 Rev. B KohlerEngines.com

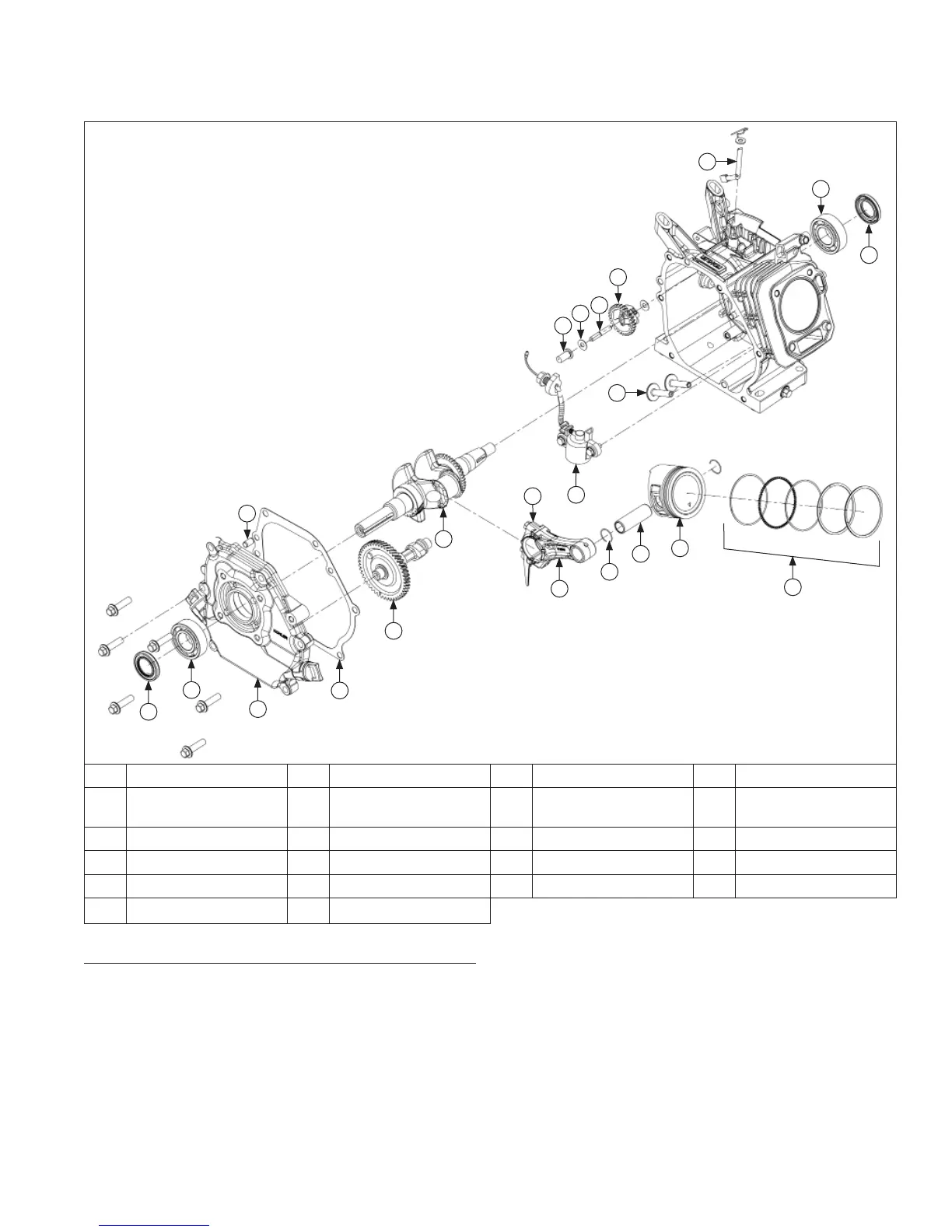

Crankcase Components
N
S
C
B
A
D
E
F
I
K
J
L
M
G
U
T
V
O
H
P
R
Q
A Closure Plate Oil Seal B Closure Plate Bearing C Closure Plate D Gasket
E Camshaft F Crankshaft G
Oil Sentry
™
Float
Switch
H End Cap
I Connecting Rod J Piston Pin Retainer K Piston Pin L Piston
M Piston Ring Set N Tappet O Governor Cup P Governor Washer
Q Governor Shaft R Governor Gear S Governor Cross Shaft T Crankcase Bearing
U Crankcase Oil Seal V Dowel Pin
Remove Closure Plate
NOTE: Do not pry on gasket surface of crankcase or
closure plate, as this can cause damage and
leakage.
1. Remove screws securing closure plate to crankcase.
2. Remove closure plate, gasket, and dowel pins (if
required) from crankcase.
Inspection
Inspect oil seal in closure plate and remove it if it is worn
or damaged. New oil seal can be installed after closure
plate is assembled to crankcase. See Reassembly for oil
seal installation instructions.
Inspect main bearing surface for wear or damage (refer
to Specifi cations). Replace closure plate if required.

Kohler Courage SH265 Specifications

General

Compression Ratio	8.5:1
Lubrication	Splash
Governor Type	Mechanical
Air Cleaner	Dual element
Starter Type	Recoil
Engine Type	OHV
Power	6.5 hp
Fuel Capacity	1.0 gal. (3.8 L)
Oil Capacity	0.6 liters
Ignition System	Electronic
Valve Configuration	Overhead Valve (OHV)
Dry Weight	16 kg (35 lbs)
