Kohler Courage XT-6 Service Manual

8.4
Section 8
Disassembly
ȱ řǯȱ ȱȱȱĚȱȱȱȱ
exhaust studs, noting orientation.
Remove Air Cleaner Assembly
1. Unscrew the knob on the air cleaner assembly
and remove the cover. See Figure 8-9.
)LJXUH5HPRYLQJ0XIÀHU

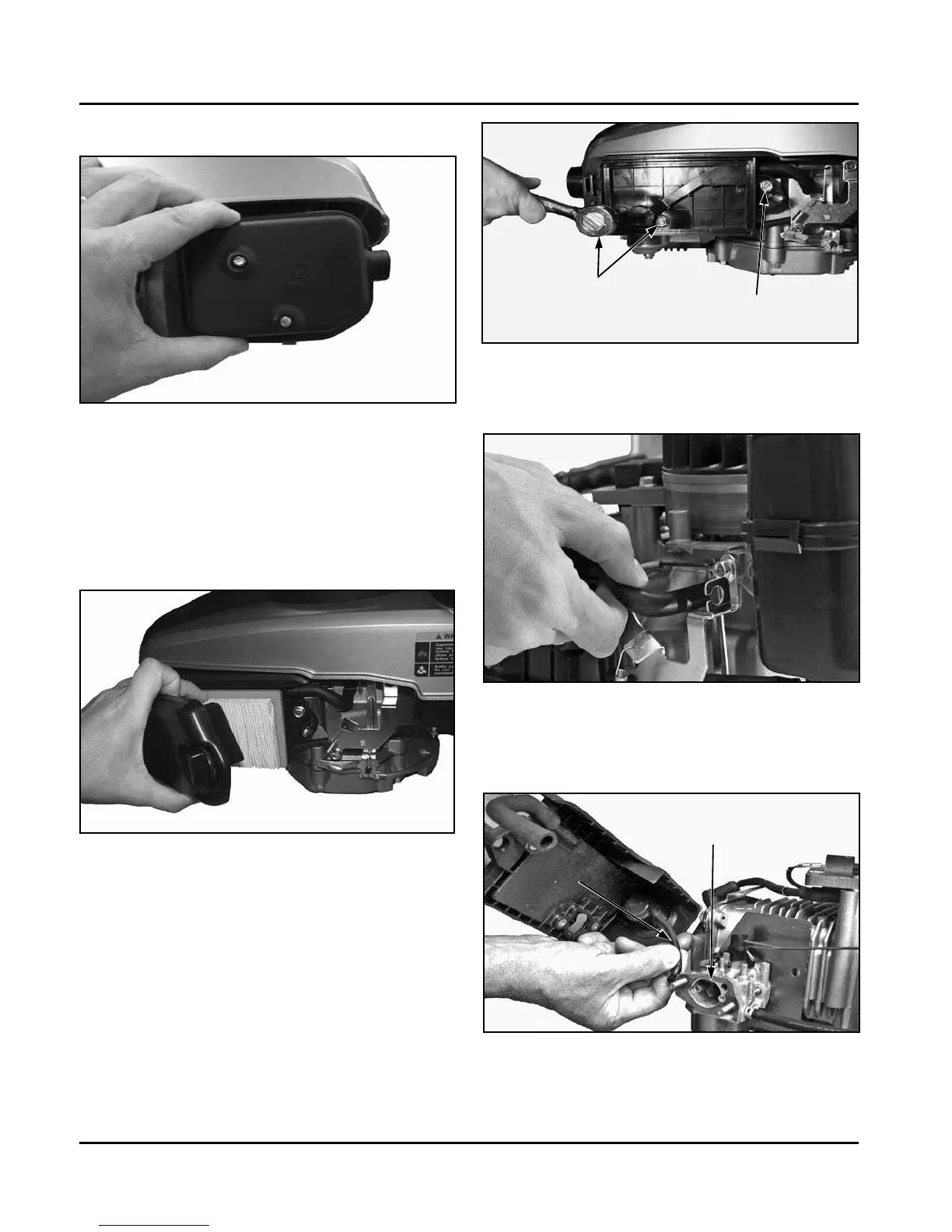

Figure 8-9. Removing Air Cleaner Cover.
ȱ Řǯȱ ȱȱȱĝȱěȱȱǯȱȱȱŞȬŞǯ
2. Remove the paper element and the foam
ȱǻȱǼǯ
ȱ řǯȱ ȱȱȱ¡ȱȱȱȱ¡ȱĚȱ
screw securing the air cleaner base to the cylinder
head and the crankcase. See Figure 8-10.
4. Detach the breather hose from the crankcase. See
Figure 8-11.
Figure 8-10. Removing Air Cleaner Base.
5. Remove the air cleaner base and detach the
ȱȱȱȱȱǻȱȱ
ȱȱ¢ǼǯȱȱȱŞȬŗŘǯ
Figure 8-12. Disconnecting Primer Hose.
Figure 8-11. Detaching Breather Hose.
6. Remove the air cleaner base gasket from the
carburetor, noting orientation. See Figure 8-12.
Hex Nuts
Hex Flange Screw
Air Cleaner
Base Gasket
Primer
Hose

Kohler Courage XT-6 Specifications

General

Displacement	149 cc
Compression Ratio	8.5:1
Fuel Type	Unleaded gasoline
Starter Type	Recoil
Engine Type	4-Cycle, OHV, Single Cylinder
Oil Capacity	0.6 L (20 fl. oz.)
Ignition System	Electronic
Fuel Tank Capacity	1.1 L (37 fl. oz.)
