Kohler Courage XT-6 Service Manual

8.7
Section 8
Disassembly
8

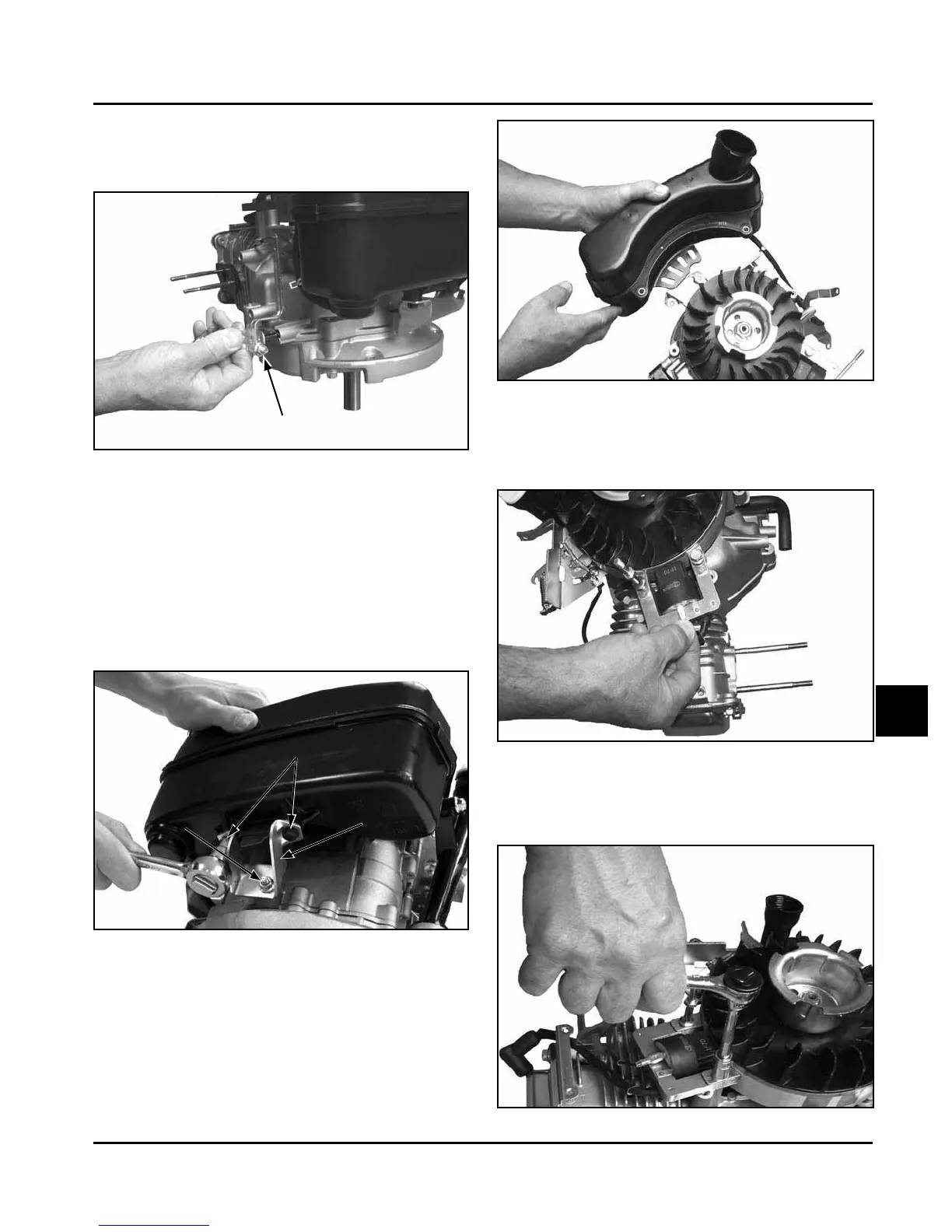

Figure 8-26. Removing Ignition Module.
Remove Governor Lever
1. Loosen the governor lever hex nut and slide the
ȱěȱȱȱĞǯȱȱȱŞȬŘŘǯ
Figure 8-22. Removing Governor Lever.
Remove Fuel Tank
1. Ensure the fuel tank is empty by running the
engine until it stops, and is completely out of
fuel.
2. Detach the fuel tank from the crankcase bracket
¢ȱȱȱȱ¡ȱĚȱǯȱȱ
Figure 8-23
Figure 8-24. Removing Fuel Tank.
Remove Ignition Module
1. Disconnect the kill lead from the ignition module.
See Figure 8-25.
ȱ Řǯȱ ȱȱ¡ȱĚȱȱȱȱȱ
securing the ignition module. Mark the stud for
ęȱȱ¢ǯȱȱȱŞȬŘŜǯ
Figure 8-25. Disconnecting Kill Lead.
Governor Lever Hex Nut
3. Remove the two studs securing the top of the fuel
ȱȱĞȱěȱȱǯȱȱȱŞȬŘŚǯ
NOTE: Disassembly does not require the fuel tank
ȱȱȱȱȱĴȱȱȱ
tank. If removal is to be performed, unscrew
the two hex bracket screws. See Figure 8-23.
Figure 8-23. Detaching Fuel Tank Bracket.
Bracket
Bracket Screws
Hex Nut

Kohler Courage XT-6 Specifications

General

Displacement	149 cc
Compression Ratio	8.5:1
Fuel Type	Unleaded gasoline
Starter Type	Recoil
Engine Type	4-Cycle, OHV, Single Cylinder
Oil Capacity	0.6 L (20 fl. oz.)
Ignition System	Electronic
Fuel Tank Capacity	1.1 L (37 fl. oz.)
