Kohler Courage XT-6 Service Manual

8.6
Section 8
Disassembly
ȱ śǯȱ ȱěȱȱȇȱȱǰȱȱǰȱ
and spacer gasket, noting the sequence. See
Figure 8-19.

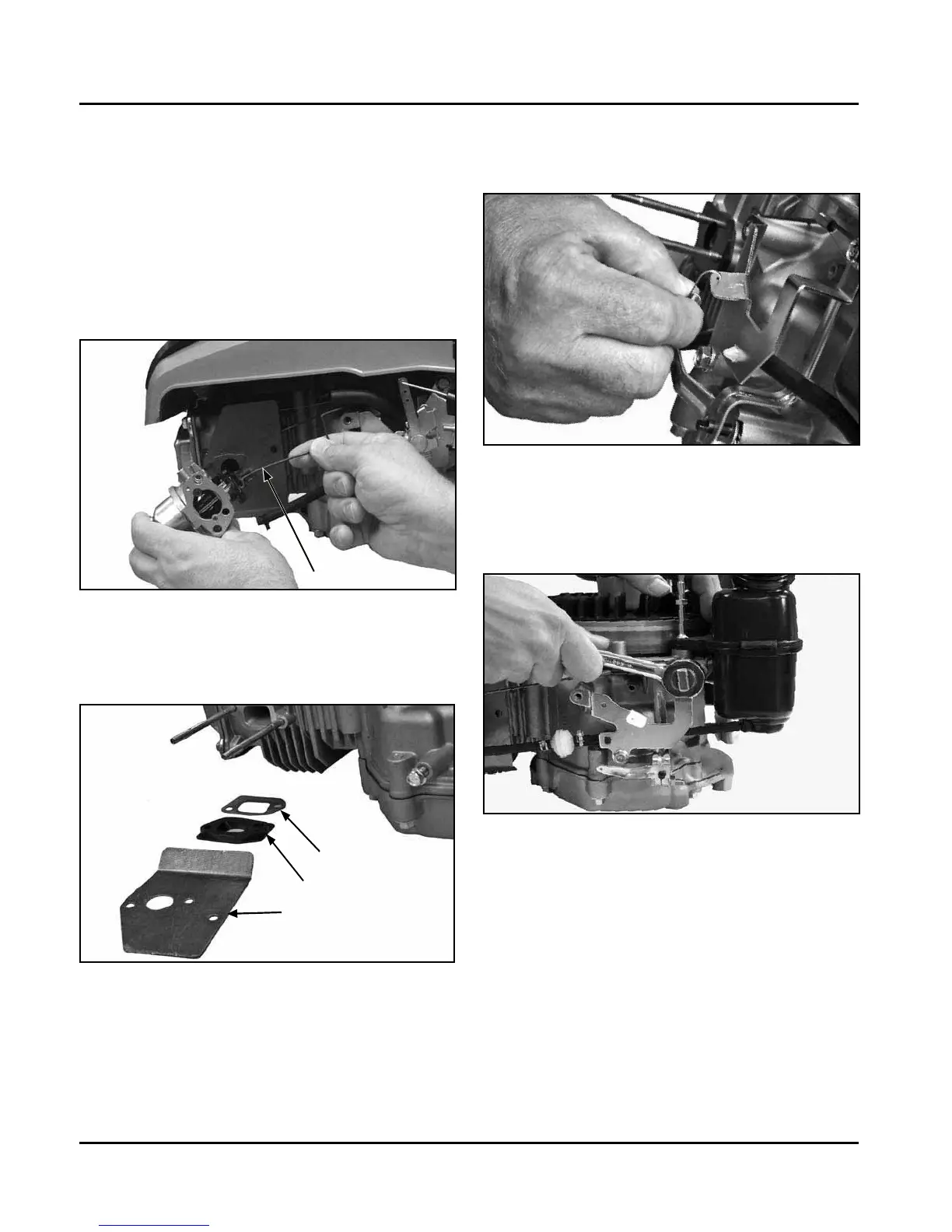

Figure 8-18. Disconnecting Choke Linkage.
2. Slide carburetor to the end of the intake studs.
See Figure 8-14.
ȱ řǯȱ ȱȱĴȱȱȱȱȱǯ
Gently push the rod and spring linkages up
ȱȱȱȱȱĴȱǯȱȱ
Figure 8-15.
4. Rotate the carburetor until the choke linkage can
be disconnected from the carburetor. See Figure
8-18.
Remove Governor Spring
1. Disconnect the governor spring from the speed
control bracket. See Figure 8-20.
Figure 8-20. Removing Governor Spring.
Remove Speed Control Bracket
ȱ ŗǯȱ ȱȱȱ¡ȱĚȱȱȱȱ
speed control bracket. See Figure 8-21.
Figure 8-21. Removing Speed Control Bracket.
NOTE: The fuel hose connecting the carburetor
and the fuel tank is held in place by a
plastic ring, mounted on the back of
the speed control bracket. If the bracket
is removed from the crankcase, it will
ȱĴȱȱȱȱȱ¢ȱ
ȱȱęȱǻȱȱȱ
Ǽǯȱȱȱȱȱ
speed bracket be required, disconnect
ȱȱęȱȱȱȱȱěȱ
the hose. Do not disconnect the fuel hose
from the fuel tank.
Figure 8-19. Carburetor Gasket Sequence.
Heat Shield
Head Spacer
Spacer Gasket
Choke Linkage

Kohler Courage XT-6 Specifications

General

Displacement	149 cc
Compression Ratio	8.5:1
Fuel Type	Unleaded gasoline
Starter Type	Recoil
Engine Type	4-Cycle, OHV, Single Cylinder
Oil Capacity	0.6 L (20 fl. oz.)
Ignition System	Electronic
Fuel Tank Capacity	1.1 L (37 fl. oz.)
