Reassembly
KohlerEngines.com 14 690 01 Rev. G

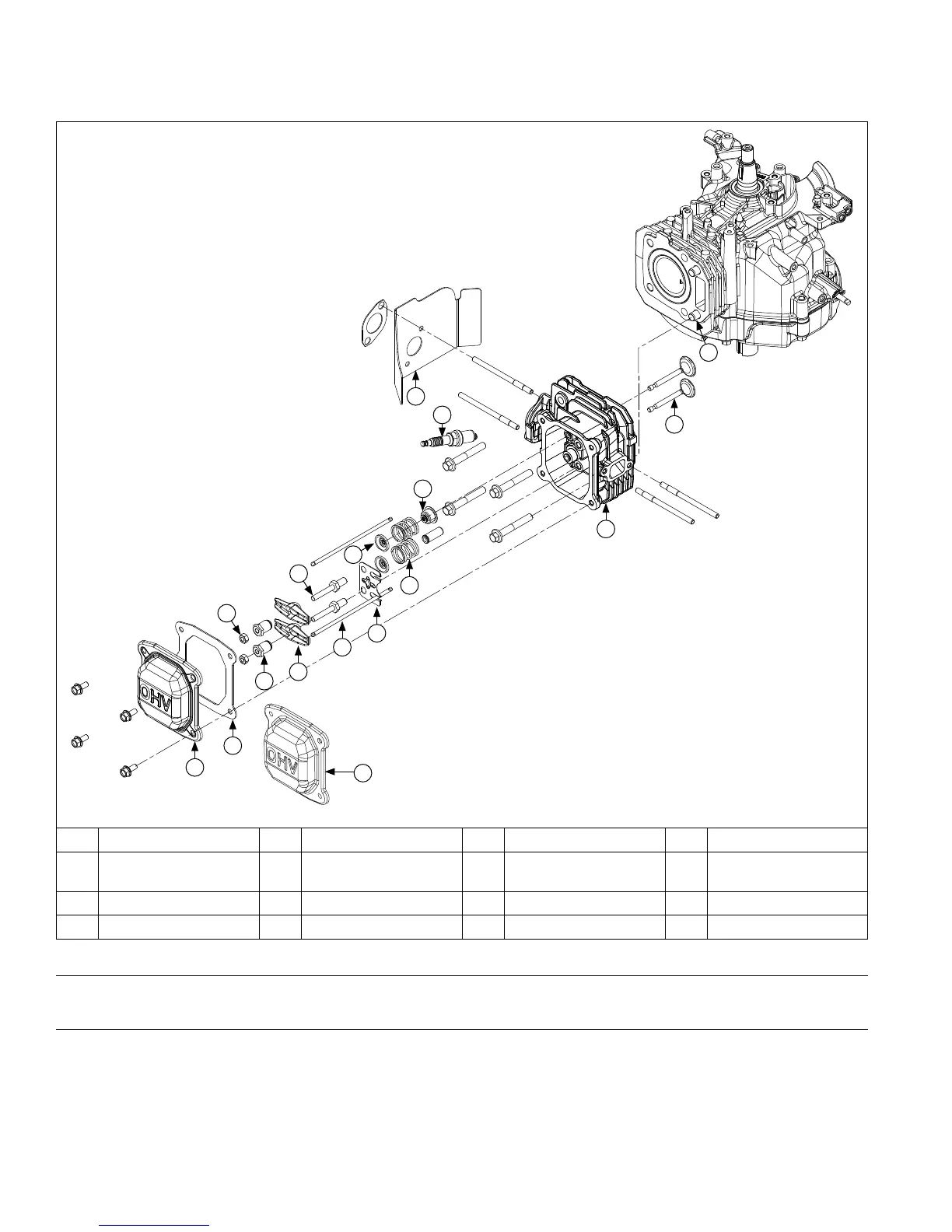

Cylinder Head Components
A
B
D
E
G
H
I
J
M
O
N
P
K
L
F
C
A Valve Cover B Gasket C Jam Nuts D Rocker Arm Pivot
E Rocker Arms F Rocker Arm Stud G Push Rods H
Push Rod Guide
Plate
I Valve Keeper J Valve Spring K Intake Valve Seal L Spark Plug
M Bafe N Cylinder Head O Valve P Dowel Pin
Install Cylinder Head Assembly
Prior to assembly, lubricate all components with engine oil, including tips of valve stems and valve guides.
Install Valve Train
1. Install intake and exhaust valves into their respective positions in cylinder head.
2. Install intake valve seal onto intake valve. Next, slide valve springs onto both valves and lock them in place with
valve spring keepers.
