Reassembly
KohlerEngines.com 14 690 01 Rev. G

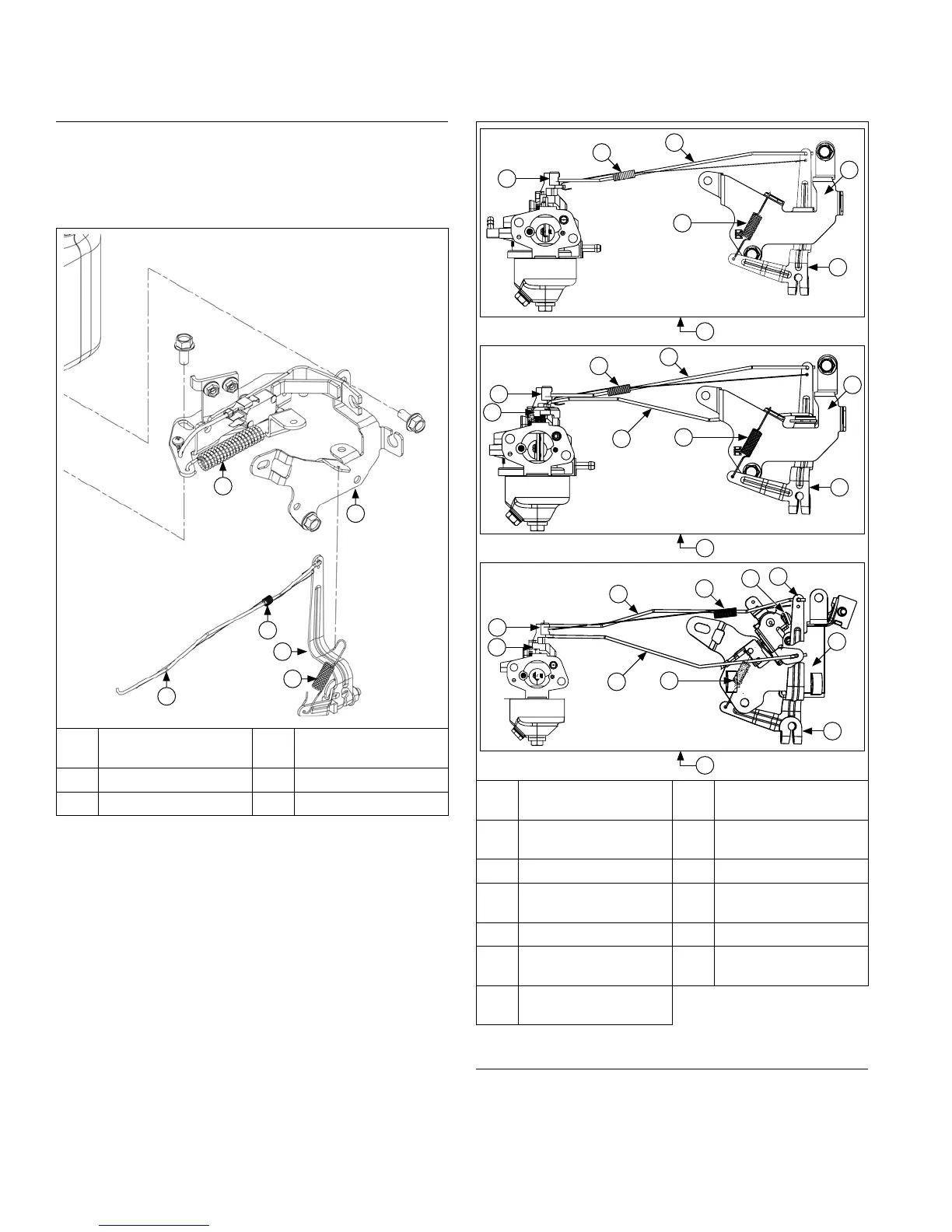

Install Governor Assembly
1. Install governor lever onto governor shaft with lever
up.
2. Attach throttle linkage and linkage spring to top of
governor lever.
Control Components
D
E
F
C
B
A
A
Flywheel Brake
Spring
B
Speed Control
Bracket
C Linkage Spring D Governor Lever
E Governor Spring F Throttle Linkage
Speed Bracket Details
F
E
D
G
I
H
F
J
K
E
D
G
I
H
F
J
K
E
M
L
D
G
I
H
A
B
C
A
Fixed Speed with
Primer (No Choke)
B
Fixed Speed with
Choke
C
Variable Speed with
Choke
D Throttle Linkage
E Linkage Spring F Throttle Lever
G Governor Spring H
Speed Control
Bracket
I Governor Lever J Choke Lever
K Choke Linkage L
Dual Throttle Choke
Control
M
Speed Control
Screw
Install Speed Control Bracket
NOTE: There are 3 different speed bracket variations for
this engine. Images shown identify how different
brackets connect to carburetors with and without
choke.
