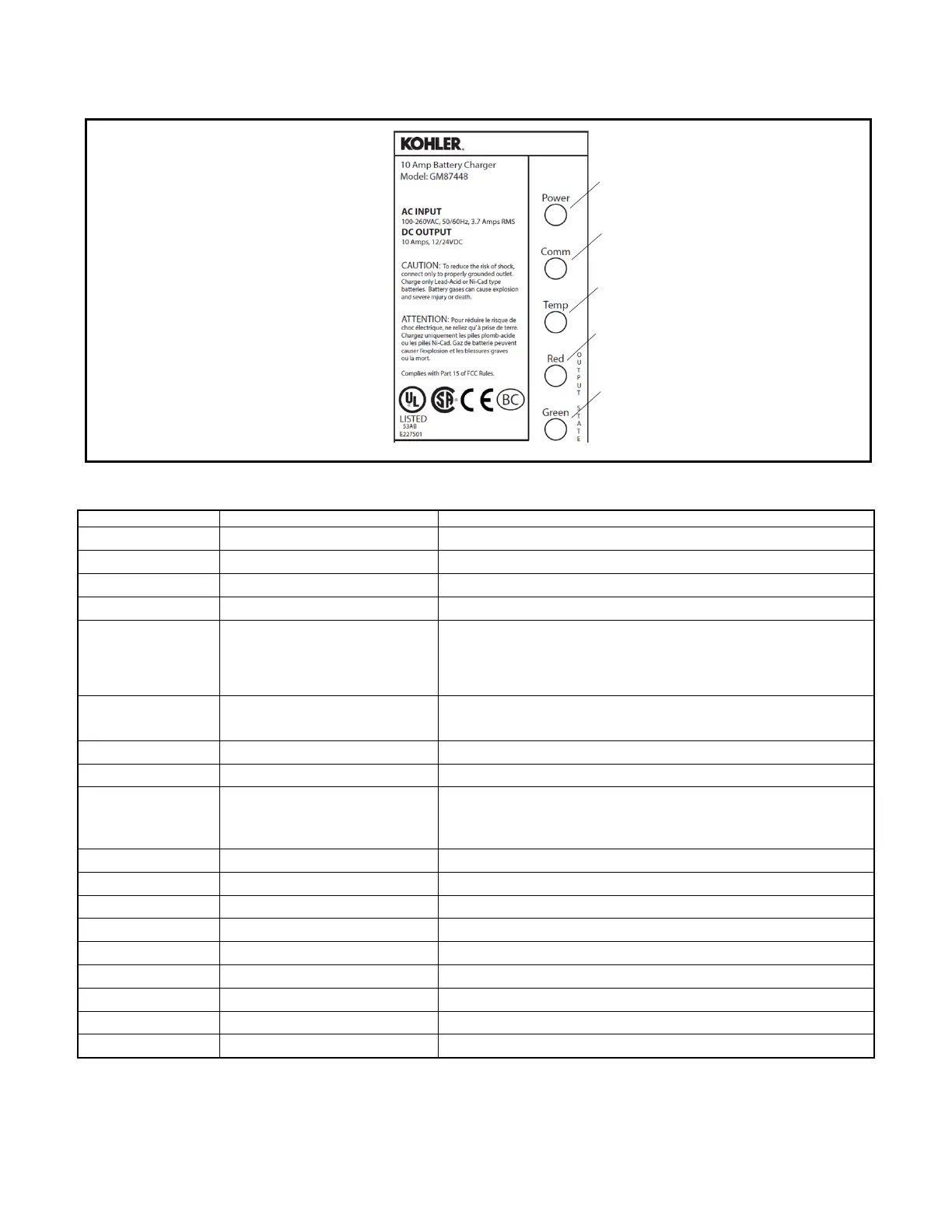

5.1 LED indicator lights
The five LED lights indicate the status of power, communication, and temperature as well as operation states and faults. Use
the LED lights to determine the charge state and troubleshoot the battery charger.
GM87448G
M94439-
voltage output state LEDRED voltage output state
LEDTemperature LEDCommunication LEDPower
LEDGM87448-
1
1
2
3
4
5
Figure 4 LED Indicator Lights
Indicator
Indicator State
Description
Power
Off
AC not connected / Fuse open
Steady On
Power is acceptable
Communication
Off
No communication since power on self-test (POST)
Steady
Communication established and nominal
Blinking
 Intermittent or loss of communication after communication has
previously been established
 CAN fault (collision, self-removal from CAN bus as defined by
applicable protocol definition)
 CAN detected since last power on self-test (POST)
Temperature
Compensation
Off
 Temperature sensor not connected
 Turned off by controller
Steady
Temperature compensated output active
Blinking
Temperature compensation warning due to intermittent or out of range signal
Output Voltage
Blink Red
 Battery is not connected
 Output failure with battery connected
 Blown or open fuse
 Shorted Output Leads
Blink Red
Under Voltage / Recovery State
Blink Red
Over Voltage
Steady Red
Bulk charge state
Steady Red & Green
Absorption state
Steady Green
Float / Maintenance state
Alternating Green & Red
Equalize state
Red and Green Off
Battery connection reversed
Steady Green
Absorption timeout
Red and Green Blinking
Power On Self-Test (POST)
Figure 5 LED Indications
