2
TT-1675 5/16
Hazardous voltage.
Can cause severe injury or death.
Operate the generator set only when
all guards and electrical enclosures
areinplace.
Moving parts.
WARNING
Short circuits. Hazardous voltage/current can cause
severe injury or death. Short circuits can cause bodily injury
and/or equipment damage. Do not contact electrical
connections with tools or jewelry while making adjustments or
repairs. Remove all jewelry before servicing the equipment.
Installation Procedure
See Figure 16 for the installed kit illustrations. Refer to
the generator set operation or service manual for items
not shown.
Note: Apply pipe sealant to the male threads of all pipe
fittings before installation.
1. Remove the generator set from service.
1.1 Press the generator set master control
OFF/RESET button.
1.2 Disconnect the power to the battery charger, if
equipped.
1.3 Disconnect the generator set engine starting
battery, the negative (--) lead first.
Note: Before installing the sound shield,
disconnect and route the battery leads
through the holes provided in the skid.
1.4 Remove the junction box panel(s) as needed to
access the wiring.
1.5 Remove the four controller panel screws.
Note: Clearly mark all disconnected leads from
the controller with tape to simplify
reconnection.
1.6 Disconnect the following controller connectors.
See the corresponding wiring diagram found in the
operation manual for more details on wiring.
D P1 (35-pin) connector
D P2 (14-pin) connector
D P3 (8-pin) connector
D P4 Ethernet connector
D Any other external leads to the controller.

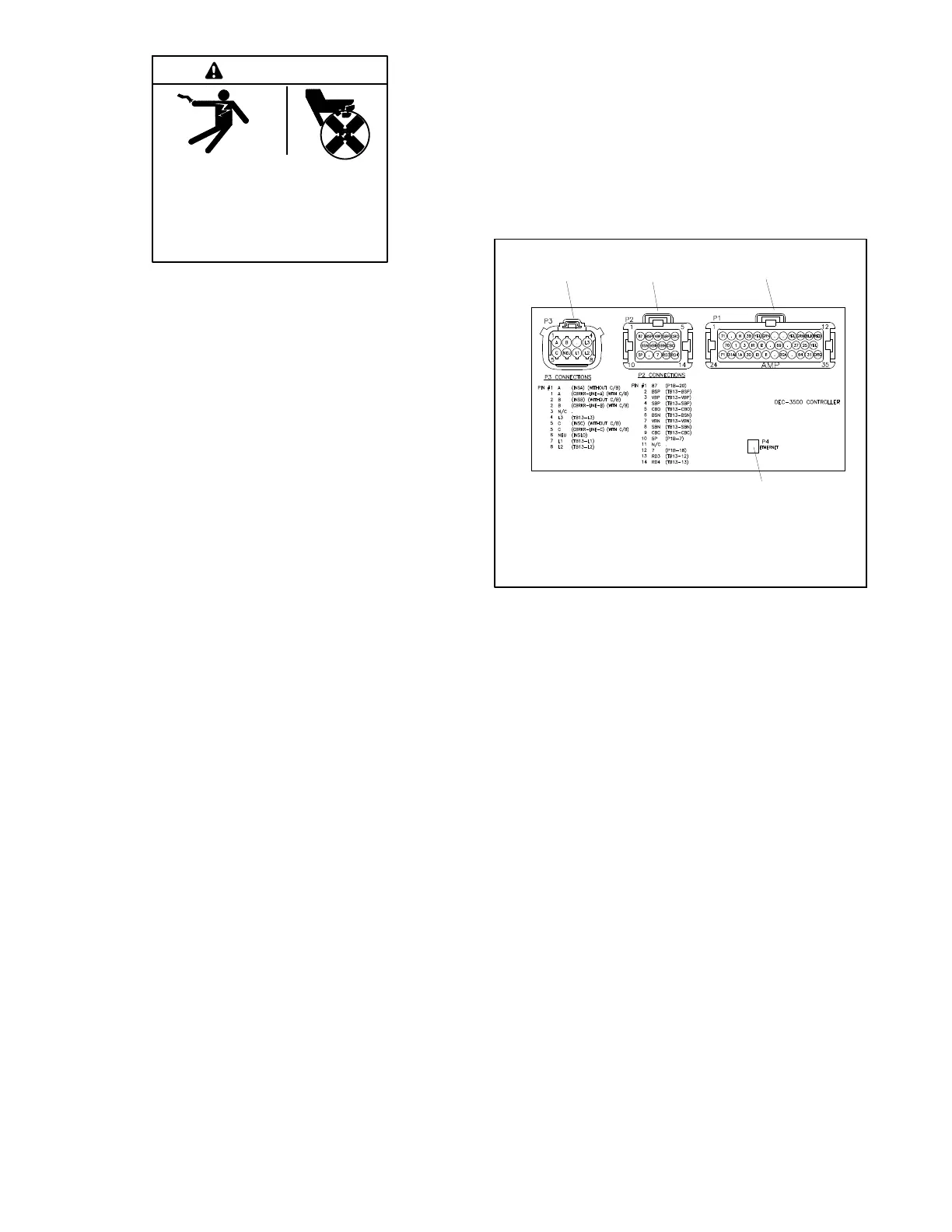

1. P3 (8-pin) connector
2. P2 (14-pin) connector
3. P1 (35-pin) connector
4. P4 Ethernet connector
12 3
4
GM89493-
Figure 1 Decision-Maker
3500 Controller
Connectors
