Position a mounting bracket (GM86091) to the top
of each internal rail using two bolts (X-6224-20)
and two nuts (X-6210-7) per bracket. See
Figure 12 for more detail.
Note: Do not final tighten the mounting brackets at this
time.
GM86396A-
1. Bolt (X-6238-3 qty. 4) and washer (X-25-37 qty. 4)
2. Bolt (X-6224-20 qty. 8), nut (X-6210-7 qty. 8), and washer
(X-25-37 qty. 8)
3. Corner extrusion mounting bracket (GM85875 qty. 4)
1
2
3

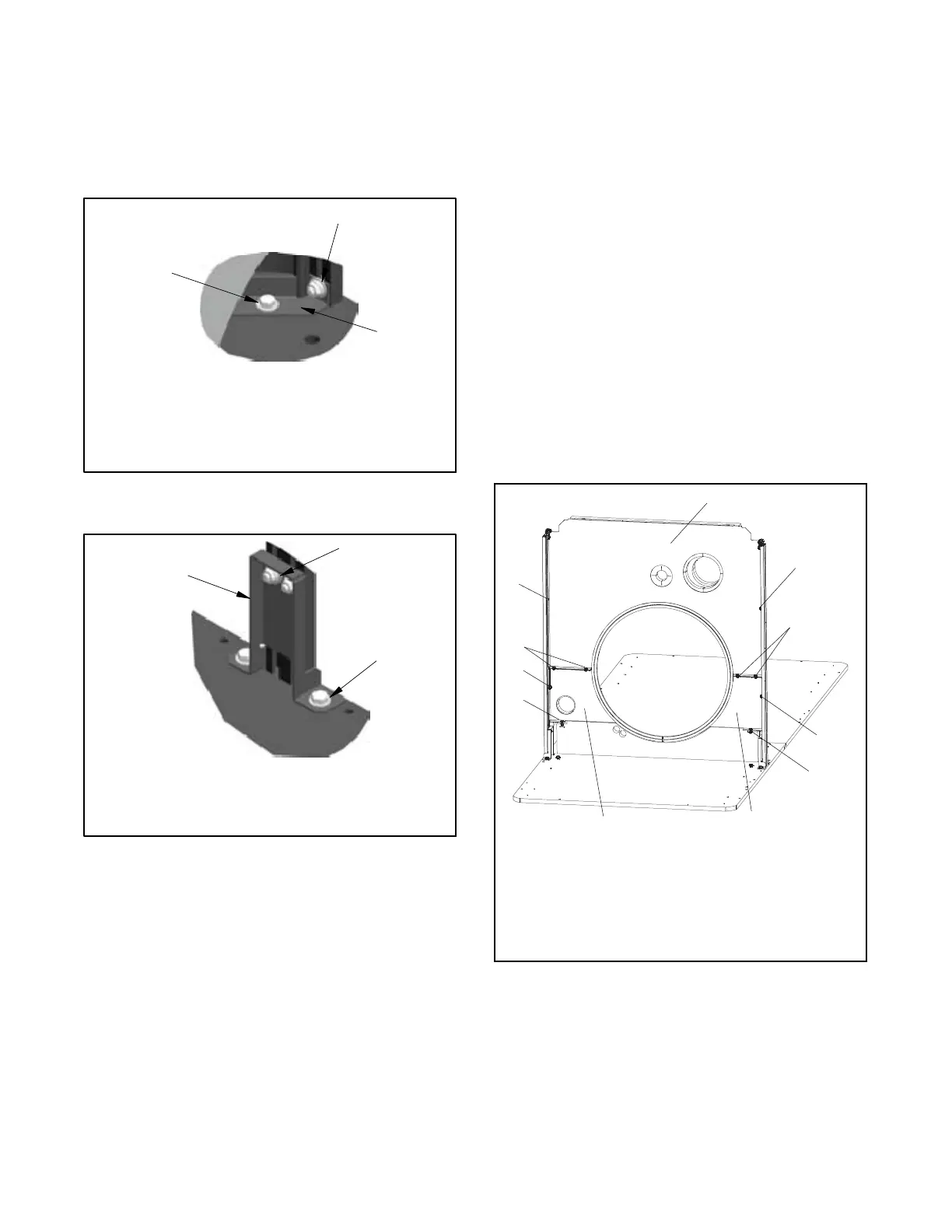

Figure 4 Corner Extrusion Mounting Bracket
Installation (Corner Rails to Base, 4 Places)
GM86396A-
1. Extrusion mounting bracket (GM85876 qty. 6)
2. Bolt (X-6224-20 qty. 12) and nut (X-6210-7 qty. 12)
3. Bolt (X-6238-3 qty. 12) and washer (X-25-37 qty. 12)
1
2
3
Figure 5 Extrusion Mounting Bracket Installation
(Rails to Base, 4 Places)
2.4 Position the LH and RH bulkheads (GM93569 and
GM93568) as shown in Figure 6.
Secure the bottom of the bulkheads to the existing
skid using a screw (M933-06020-60), washer
(X-25-40) and nut (M6923-06-80) for each
bulkhead.
Secure the sides of the LH and RH bulkheads to the
two internal rails using a bolt (X-6224-20), washer
(X-25-37), and nut (X-6210-7) for each bulkhead.
2.5 Position the upper bulkhead (GM93567) as shown
in Figure 6.
Secure the bottom of the upper bulkhead to the LH
and RH bulkheads using two screws
(M933-06012-60) and two washers (X-25-40) for
each bulkhead.
Secure the sides of the upper bulkhead to the
internal rails using a bolt (X-6224-20), washer
(X-25-37), and nut (X-6210-7) for each side rail.
1
GM93516-B
1. Bolt (X-6224-20), nut (X-6210-7), and washer (X-25-37)
2. Screws (M933-06012-60 qty. 2) and washers (X-25-40 qty. 2)
3. Screw (M933-06020-60), washer (X-25-40), and nut
(M6923-06-80)
4. Bulkhead, LH (GM93569)
5. Bulkhead, RH (GM93568)
6. Bulkhead, upper (GM93567)
2
3
1
1
2
1
3
4
5
6
Figure 6 Bulkhead Assembly
