Kohler GM93516-KP1 - Final Structural Component Installation; Corner Foam Installation (Standard Kit); Corner Foam Installation (UMS Kit)

7
TT-1675 5/16
7.8 For Standard Sound Shield Kits: Position the
corner foam (GM87547 qty. 12) as shown in
Figure 12. Install three foam pieces per corner.
For UMS Sound Shield Kits: Prepare the
mounting surfaces with isopropyl alcohol/water
and apply a small strip of bonding tape. Position
the corner foam (GM88910 qty. 12) as shown in
Figure 12. Install the three foam pieces per
corner.
GM93516-B
1. Brackets (GM86091 qty. 2), bolts (X-6224-20 qty. 6), and nuts
(X-6210-7 qty. 6)
2. Brackets (GM86091 qty. 2), bolts (X-6224-20 qty. 4), and nuts
(X-6210-7 qty. 4)
3. Brackets (GM86091 qty. 2), bolts (X-6224-20 qty. 8), and nuts
(X-6210-7 qty. 8)
4. Bracket (GM86091), bolts (X-6224-20 qty. 4), and nuts
(X-6210-7 qty. 4)
5. Wing nuts (X-276-9 qty. 2) installed when installing engine
roof.
6. Wing nuts (X-276-9 qty. 2) installed when installing alternator
roof.
7. Wing nuts (X-276-9 qty. 2) installed when installing controller
panel.
8. Wing nuts (X-276-9 qty. 2) installed when installing exhaust
panel.
9. Foam (GM87549 or GM88912). Insert foam into all rails.
Cut to fit.
10. Corner foam (GM87547 or GM88910 qty. 12).
Install three per corner.
1
5
9
6
10
3
7
8
2
2
2
4
3
4
2
4
4
5

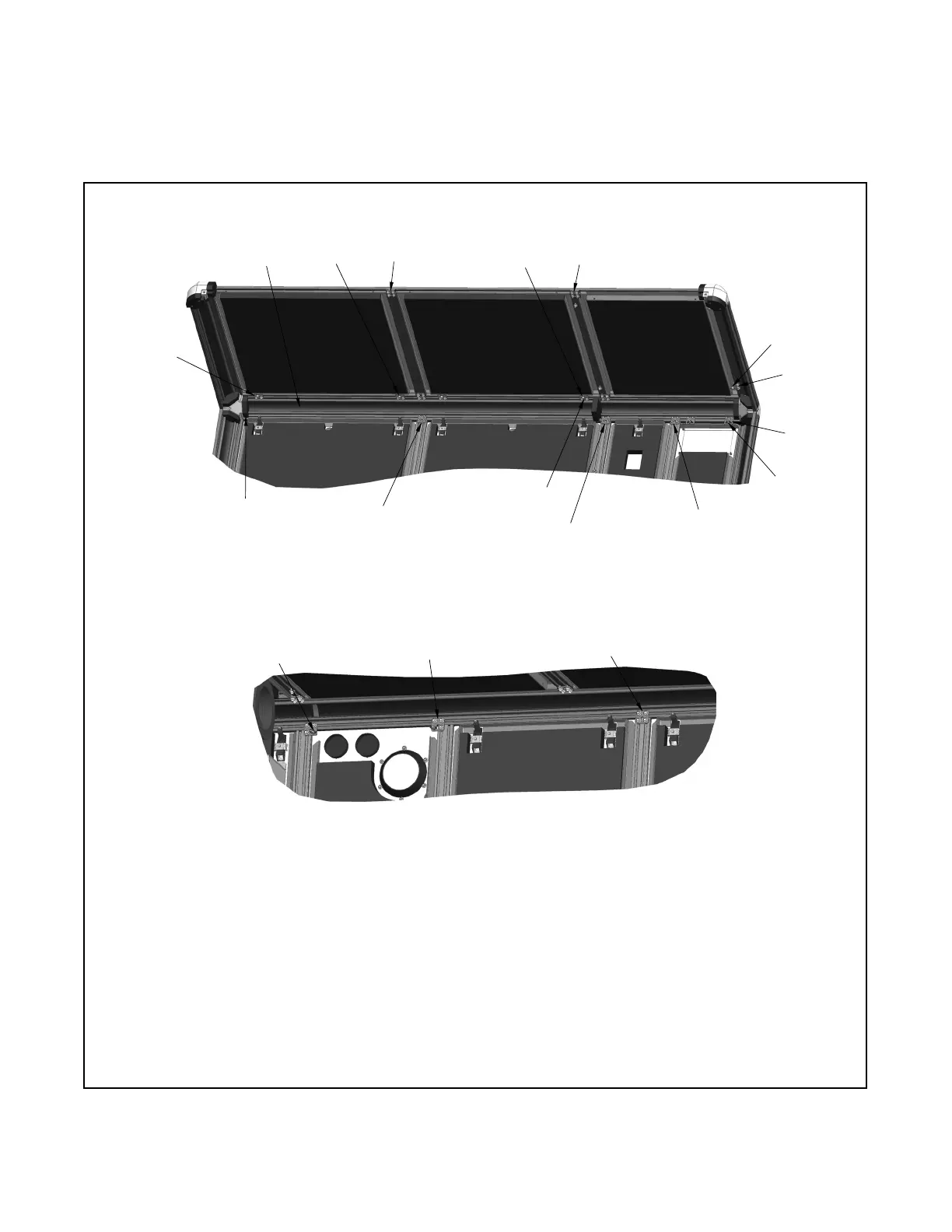

Figure 12 Foam and Bracket Location/Installation
