Kohler HD Series

36
Electrical System
KohlerEngines.com 14 690 10 Rev. --
Rectifi ed Only (non-regulated) Systems (if equipped)
Some engines are equipped with a rectifi ed (in-line diode) only, non-regulated 1 amp charging system. Diode
(rectifi er) is a sealed in-line wiring jumper between stator and a battery (B+) connection (OEM location). Jumper
features male/female bullet connectors and can only be installed one way. Diode (rectifi er) converts AC voltage
coming from stator to DC voltage only.

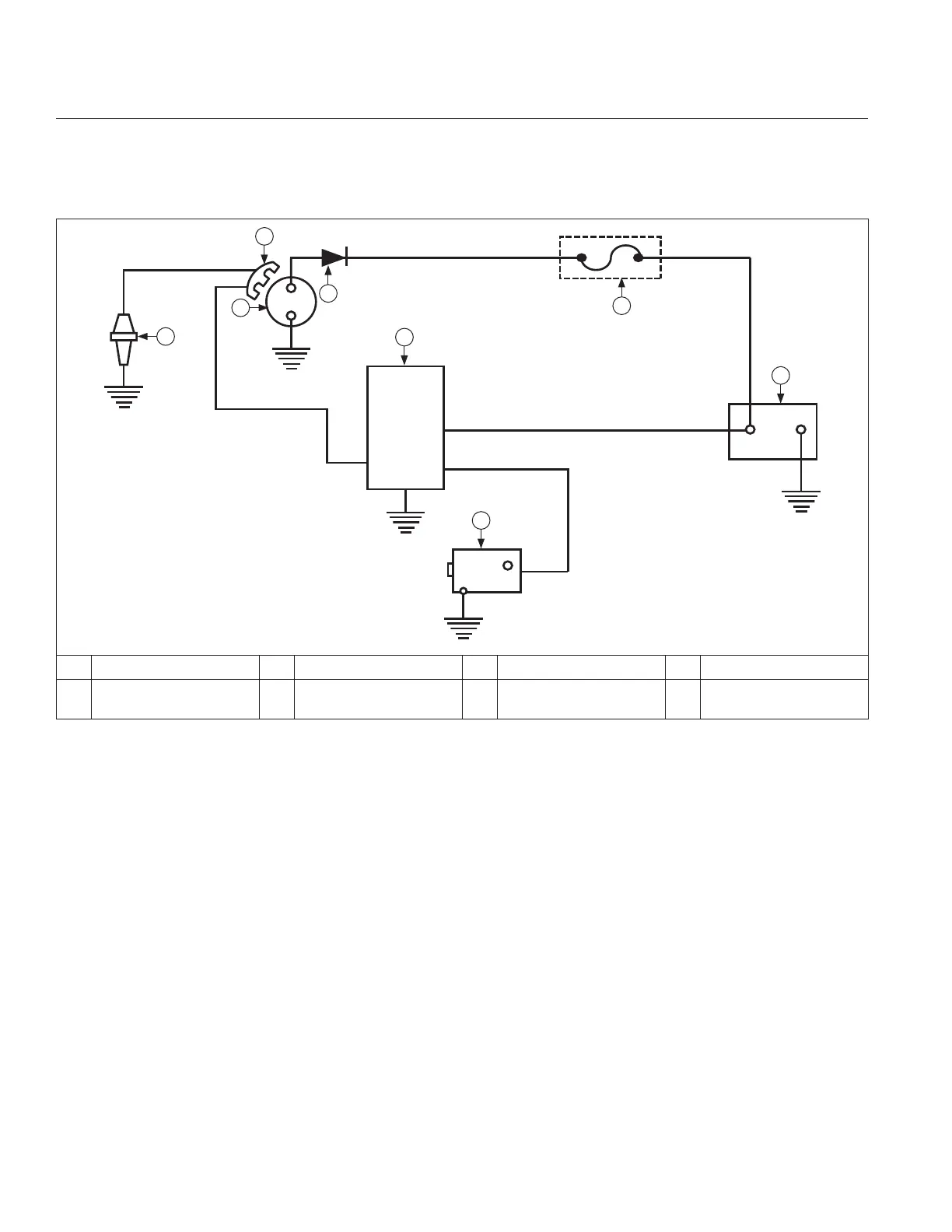

Wiring Diagram-1 Amp Charging System, Rectifi ed Only
+
D
C
E
F
A
G
B
H
A Diode B Stator C Ignition Module D Spark Plug
E
Switch/Key Switch
(OEM Supplied)
F Starter Motor G
Battery Fuse (OEM
Supplied)
H
12 Volt Battery (OEM
Supplied)
