Kohler HD Series

42
Disassembly/Inspection and Service
KohlerEngines.com 14 690 10 Rev. --
WARNING
Before working on engine or equipment, disable engine as
follows: 1) Disconnect spark plug lead(s). 2) Disconnect
negative (–) battery cable from battery.
Accidental Starts can cause severe injury or
death.
Disconnect and ground spark plug lead(s)
before servicing.

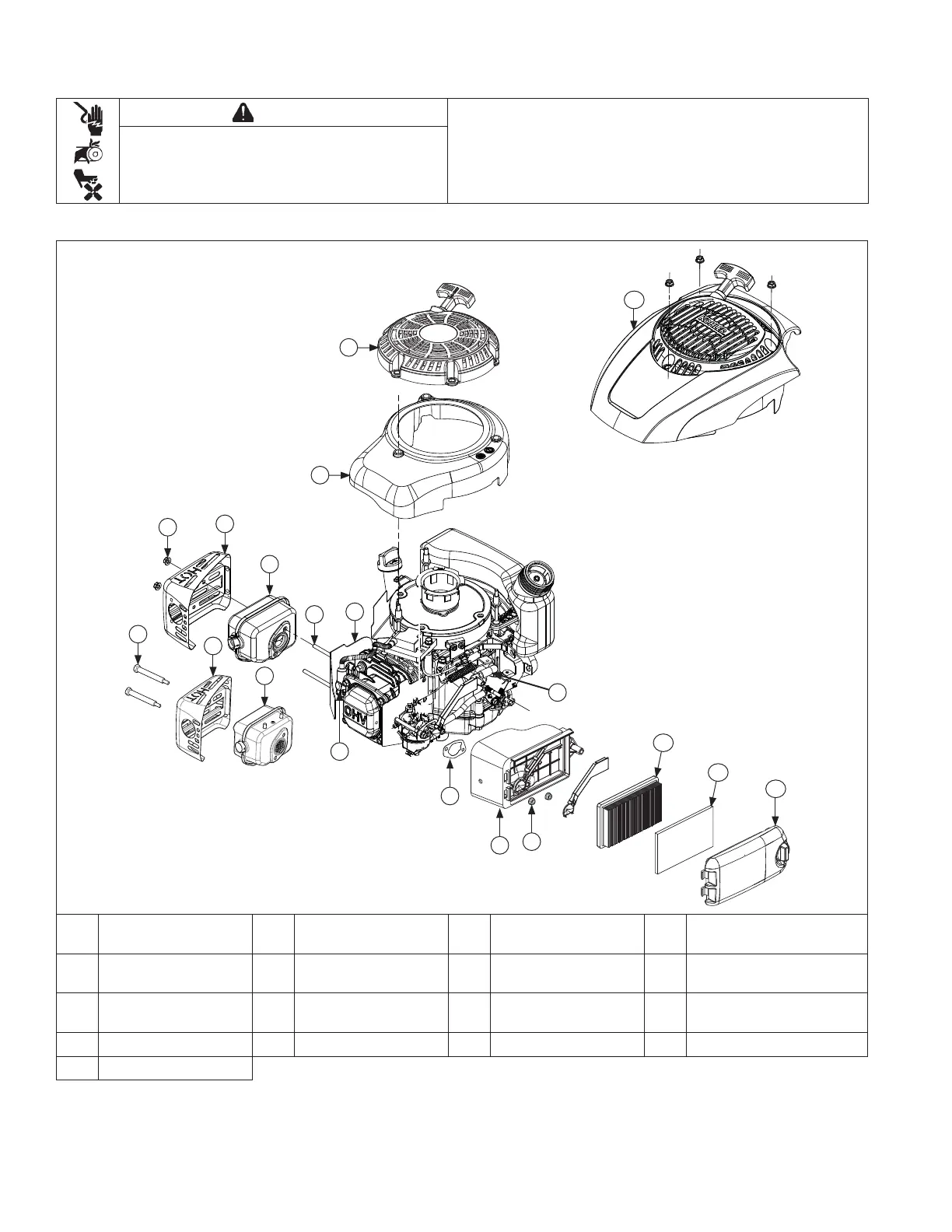

External Engine Components
B
D
F
L
A
P
Q
C
O
K
J
E
G
H
E
F
I
M
N
A
Engine Cover and
Retractable Starter
B Retractable Starter C Blower Housing D Lock Nut
E Muffl er Guard F Muffl er G Exhaust Stud H
Muffl er Gasket (Heat
Defl ector)
I Shoulder Screw J Spark Plug Lead K Breather Hose L
Air Cleaner Base
Gasket
M Air Cleaner Base N Nut O Paper Element P Precleaner
Q Air Cleaner Cover
