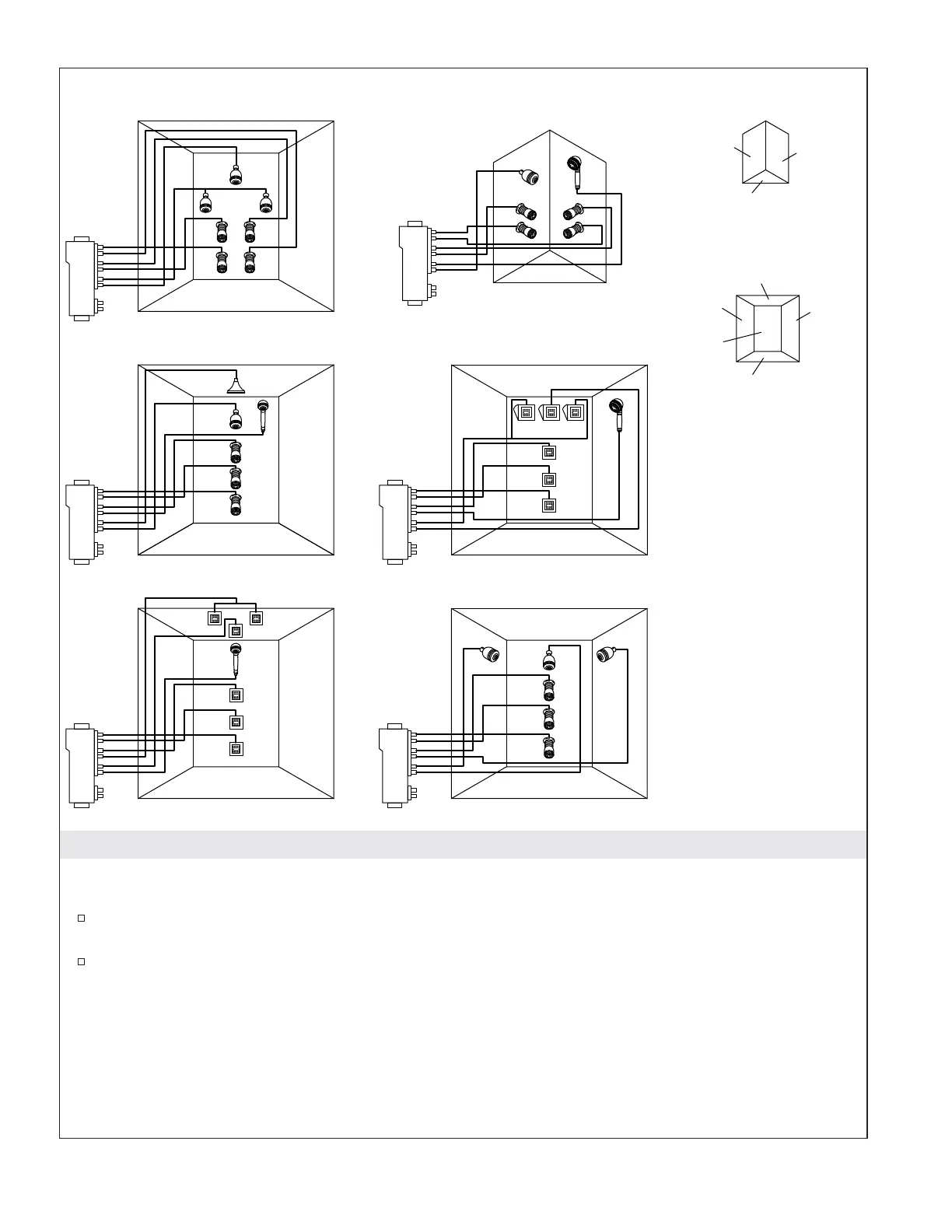

3. Shower Configurations (DTV and DTV II)
NOTE: Pre-programmed shower configurations are shown; other options are possible. Configurations
other than the pre-programmed options will LIMIT the pre-programmed massage functions.
Massage functions that correspond with custom configurations can be programmed. Refer to the
″Digital Interface Homeowners Guide.″
The bodyspray to valve outlet ratio must be 1:1. All bodysprays must have equal flow rates;
unequal flow rates will cause the massage mode to shut down. See examples below:
Correct: Four bodysprays using four outlets, one per bodyspray (1:1). See the ″Envelop″ configuration above.
Incorrect: Four bodysprays using three outlets; two bodysprays each installed to one valve outlet (1:1), and
the other two bodysprays installed to one valve outlet (2:1).
Frontage Envelop
Unwind Linear
Downpour Surround
If bodysprays, watertiles
or watertile showerheads
are present in these
outlets, they will not cycle.
*
Ceiling
Wall 1
Wall 2
Wall 3
Floor
Wall 1
Wall 2
Floor
CH 12 34 56 CH 12 34 56
CH 12 34 56 CH 12 34 56
CH 12 34 56
CH 12 34 56
1
22
34
65
1
2
*
3
4
6
5
1
3
4
6
5
2
*
3
12
3
4
6
5
2
1
2
34
65
3
*
1
4
6
5
2
*
1043183-2-E 8 Kohler Co.
